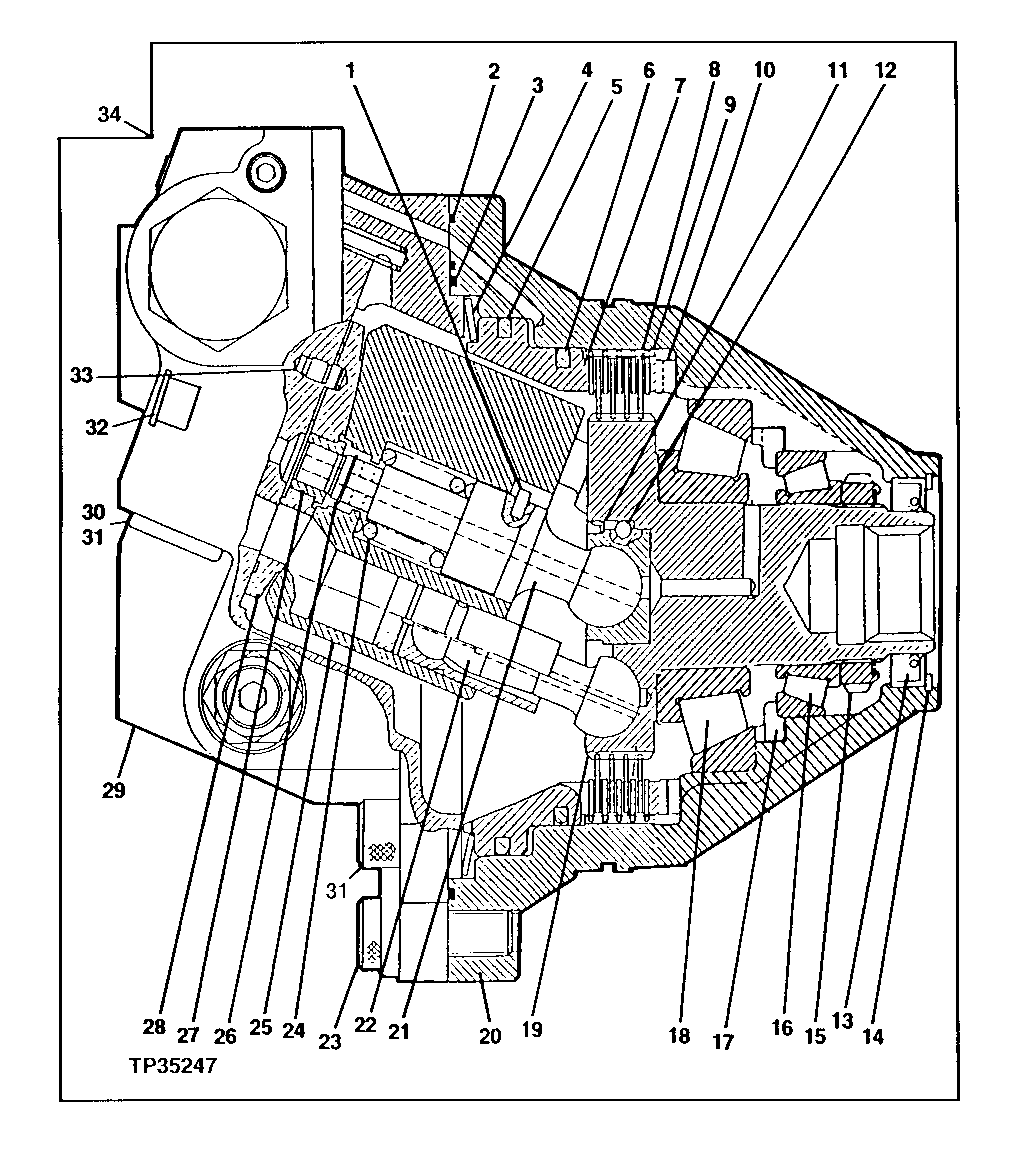

Запчасти John Deere 90D 2 - PROPEL MOTOR 260 - AXLES AND SUSPENSION SYSTEMS 2

1

4198956

PIN FASTENER

(SUB FOR T107766)

1шт.

2

T111819

O-RING

1шт.

3

4184698

O-RING

(SUB FOR T107777)

1шт.

4

3032487

DISK SPRING

(SUB FOR T107775)

1шт.

5

4232767

RING

(SUB FOR T107774)

1шт.

6

4232766

RING

(SUB FOR T107773)

1шт.

7

3035563

PISTON

(SUB FOR T107772)

1шт.

8

3037401

PLATE

(SUB FOR T107776)

4шт.

9

3032432

PLATE

(SUB FOR T107771)

5шт.

10

4189657

SPACER

(SUB FOR T107770)

1шт.

11

4184778

SNAP RING

(SUB FOR T107764)

1шт.

12

L38718

BALL

1шт.

13

T225266

SEAL

(SUB FOR T107759, TH112064, AT213847 OR 4333170)

1шт.

14

4116290

SNAP RING

(SUB FOR TH111929)

1шт.

15

4178173

NUT

(SUB FOR T107755)

1шт.

16

JD10428

TAPERED ROLLER BEARING

1шт.

17

4222980

SPACER

(SUB FOR TH111930)

1шт.

18

JD10429

TAPERED ROLLER BEARING

1шт.

19

2021605

DRIVE DISK

(SUB FOR T107752)

1шт.

20

1012429

HOUSING

(SUB FOR TH111928)

1шт.

21

8035127

SHAFT

(SUB FOR T107765)

1шт.

22

8050658

PISTON

(SUB FOR T107762 OR AT131225) (SUB FOR AT154837)

7шт.

23

19M8490

SCREW

3шт.

24

4179181

COMPRESSION SPRING

(SUB FOR T107767)

1шт.

25

2021642

ROTOR

(SUB FOR T107768)

1шт.

26

4188857

SNAP RING

(SUB FOR T107769)

1шт.

27

4177926

BUSHING

(SUB FOR T107779)

1шт.

28

3041792

PLATE

(SUB FOR T107778) (SUB FOR TH111899)

1шт.

29

AT184456

HYDRAULIC MOTOR

(SUB FOR AT90576)

1шт.

9089885

FLOW CONTROL HYD. VALVE

(SUB FOR AT90577) (HEAVY DUTY)

1шт.

30

CH11570

O-RING

1шт.

31

15M7036

DRAIN PLUG

(SUB FOR TH109285 OR 0309805) (SUB FOR 4217653, ALONG WITH CH11570)

1шт.

32

4208977

DRAIN PLUG

(SUB FOR TH111351)

1шт.

33

4177927

PIN

(SUB FOR T107780)

2шт.

M800650

PACKING

1шт.

34

AT184456

HYDRAULIC MOTOR

(SUB FOR AT90576)

1шт.
