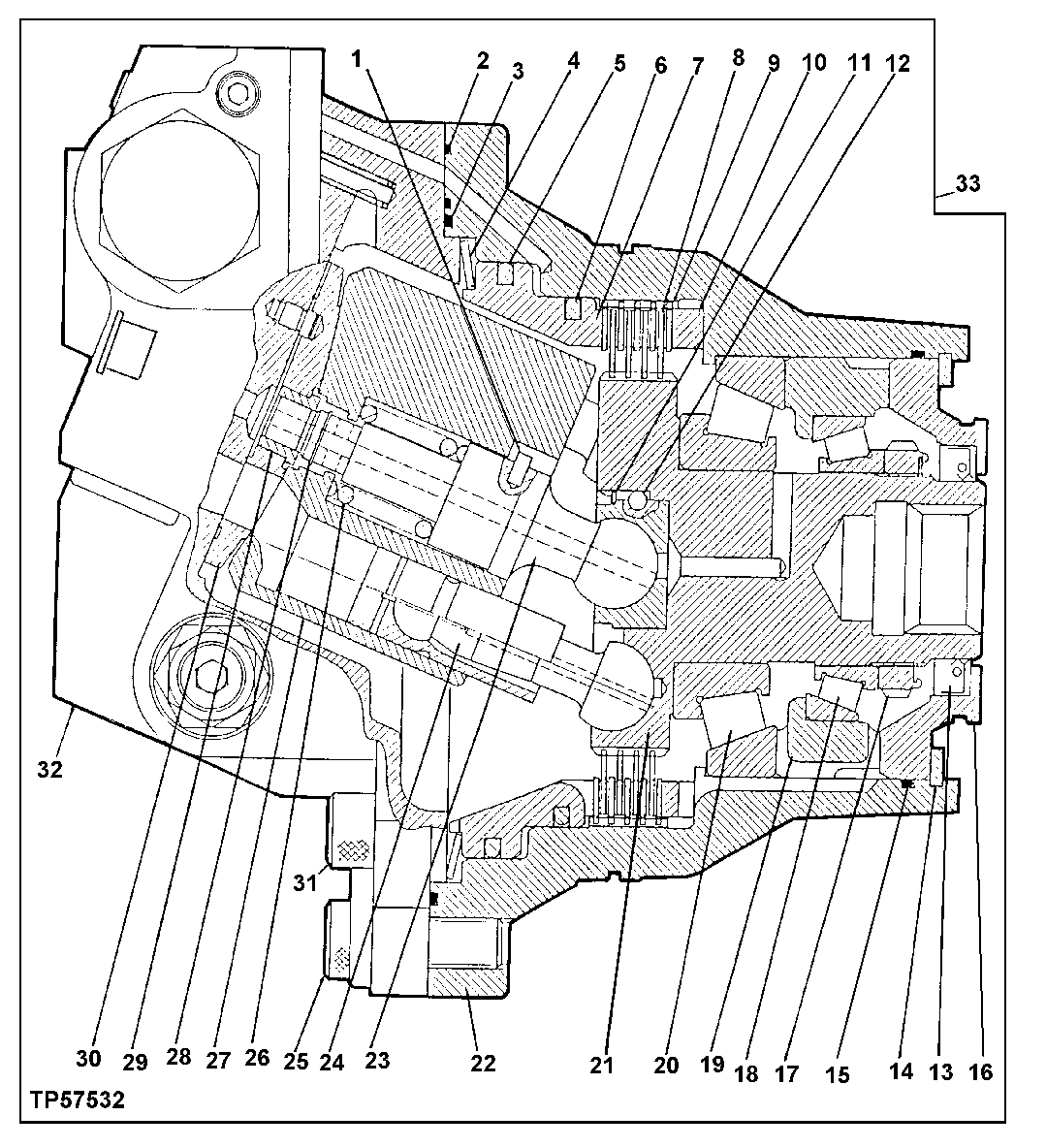

Запчасти John Deere 90D 1A - PROPEL MOTOR 260 - AXLES AND SUSPENSION SYSTEMS 2

1

4198956

PIN FASTENER

(SUB FOR T107766)

1шт.

2

T111819

O-RING

1шт.

3

4184698

O-RING

(SUB FOR T107777)

1шт.

4

3032487

DISK SPRING

(SUB FOR T107775)

1шт.

5

4232767

RING

(SUB FOR T107774)

1шт.

6

4232766

RING

(SUB FOR T107773)

1шт.

7

3035563

PISTON

(SUB FOR T107772)

1шт.

8

3037401

PLATE

(SUB FOR T107776)

4шт.

9

3032432

PLATE

(SUB FOR T107771)

5шт.

10

4189657

SPACER

(SUB FOR T107770)

1шт.

11

4184778

SNAP RING

(SUB FOR T107764)

1шт.

12

L38718

BALL

1шт.

13

4260561

SEAL

(SUB FOR TH112064, THIS APPLICATION) (SUB FOR AT154282)

1шт.

14

40M7231

SNAP RING

1шт.

15

4178393

O-RING

(SUB FOR T107760)

1шт.

16

4173923

COVER

(SUB FOR T107758)

1шт.

17

4178173

NUT

(SUB FOR T107755)

1шт.

18

JD10428

TAPERED ROLLER BEARING

1шт.

19

4222980

SPACER

(SUB FOR T107754, THIS APPLICATION) (SUB FOR TH111930)

1шт.

20

JD10429

TAPERED ROLLER BEARING

1шт.

21

2021605

DRIVE DISK

SHAFT, (SUB FOR T107752)

1шт.

22

1010294

HOUSING

(SUB FOR T107757)

1шт.

23

8035127

SHAFT

(SUB FOR T107765)

1шт.

24

8050658

PISTON

(SUB FOR T107762 OR AT131225) (SUB FOR AT154837)

7шт.

25

19M8490

SCREW

M16 X 40

3шт.

26

4179181

COMPRESSION SPRING

(SUB FOR T107767)

1шт.

27

2021642

ROTOR

(SUB FOR T107768)

1шт.

28

4188857

SNAP RING

(SUB FOR T107769)

1шт.

29

4177926

BUSHING

(SUB FOR T107779)

1шт.

30

3041792

PLATE

(SUB FOR T107778) (SUB FOR TH111899)

1шт.

32

9084887

FLOW CONTROL HYD. VALVE

(SUB FOR AT112588)

1шт.

9084888

FLOW CONTROL HYD. VALVE

(SUB FOR AT112592) (HEAVY DUTY)

1шт.

33

HYDRAULIC MOTOR

(REMANUFACTURED) (SUB FOR AT112587) ( AT184455 NLA)

1шт.

AT184455

HYDRAULIC MOTOR

(SUB FOR AT112591) (HEAVY DUTY) (REMANUFACTURED)

1шт.
