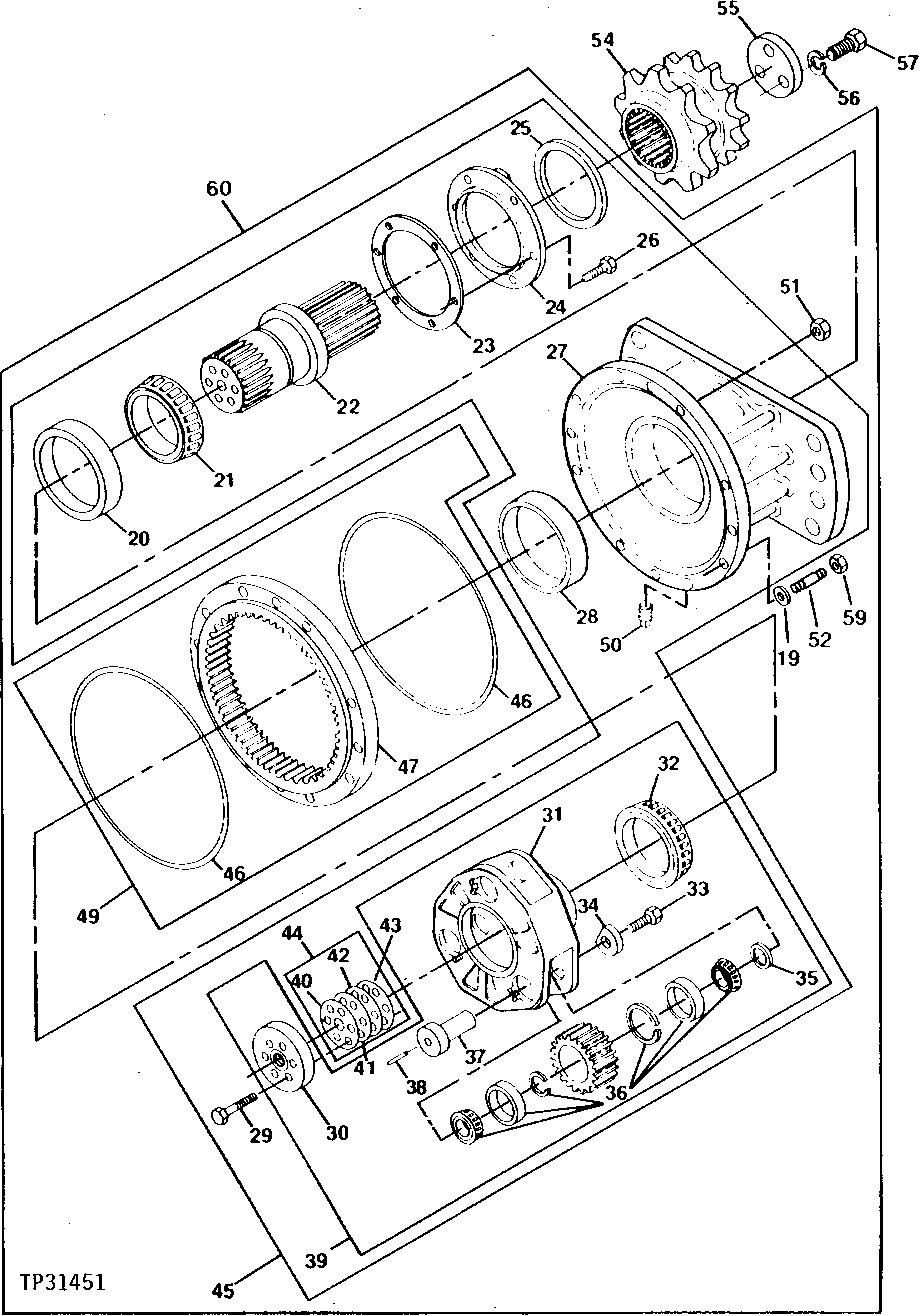

Запчасти John Deere 90D 12 - SINGLE SPEED GEARBOX 250 - AXLES AND SUSPENSION SYSTEMS 2

19

F170506

PIPE PLUG

(A) 5/8" PIPE

24шт.

20

4003642

BEARING CUP

(A)

1шт.

21

4003643

BEARING CONE

(A)

1шт.

22

4063863

DRIVE SHAFT

(A)

1шт.

23

4063800

GASKET

(A)

1шт.

24

4063850

RETAINER

(A)

1шт.

25

4003639

SEAL

(A)

1шт.

26

19H118

CAP SCREW

(A) (SUB F1002016) 5/16" -18 X 1"

6шт.

27

4063848

HOUSING

(A)

1шт.

28

F58536

BEARING CUP

(A)

1шт.

29

F1003528H8

CAP SCREW

(A) 3/8" -24 X 1-5/8"

6шт.

30

4063853

PLATE

(A)

1шт.

31

4063815

CAGE

(A)

1шт.

32

F58043

BEARING CONE

(A)

1шт.

33

F1005540H8

CAP SCREW

(A) 1/2" -20 X 2-1/2"

3шт.

34

4063705

LOCK WASHER

(A)

3шт.

35

4063198

SPACER

(A)

3шт.

36

F58601

CROSS AND BEARING ASSEMBLY

(A)

3шт.

37

4063816

UNIVERSAL DRIVESHAFT

(A)

3шт.

38

F271028

GROOVE PIN

(A)

3шт.

39

4063817

GEAR

(A)

1шт.

40

4063795A

SOLID SHIM

(A) .002" THICK

ARшт.

41

4063795B

SOLID SHIM

(A) .003" THICK

ARшт.

42

4063795C

SOLID SHIM

(A) .005" THICK

ARшт.

43

4063795D

SOLID SHIM

(A) .010" THICK

ARшт.

44

4063795SA

SOLID SHIM

(A) TWO EACH OF NO. 40 THRU NO. 43

ARшт.

45

4063864

HOUSING

(A)

1шт.

46

F73125277

SEAL

(A)

2шт.

47

4063831

RING GEAR

(A)

1шт.

49

4063830

RING GEAR

(A)

1шт.

50

F190038

PLUG

(A) 1/2" PIPE

1шт.

51

F1301000U

LOCK NUT

(A) 1/2" -20

4шт.

52

4063567

CAP SCREW

(A) 1/2" -13 X 2-5/8"

4шт.

54

5Y1025C-10

DRIVE SPROCKET

(A)

1шт.

55

5Y1033A-1

PLATE

(A)

1шт.

56

COML

LOCK WASHER

5/8" GRADE 8 MINIMUM

3шт.

57

COML

CAP SCREW

5/8" -18 X 1-7/16" GRADE 8 MINIMUM

3шт.

59

F1300900U

NUT

(A)

4шт.

60

63X12XXAXB

GEAR CASE

(A) COMPLETE ASSEMBLY

2шт.
