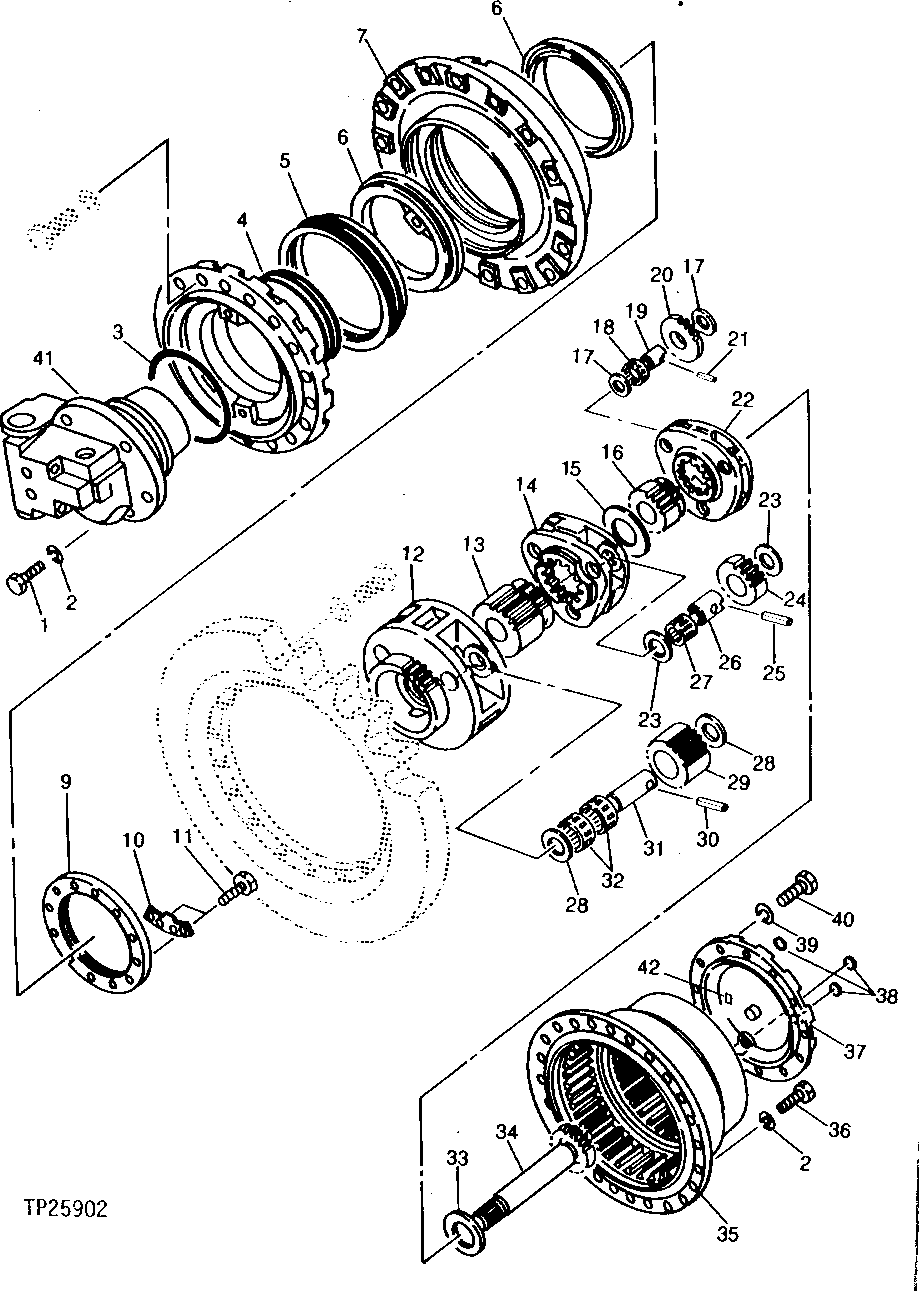

Запчасти John Deere 90D 2 - PROPEL PLANETARY DRIVE 250 - AXLES AND SUSPENSION SYSTEMS 2

1

19M8350

CAP SCREW

M16 X 85, (SUB FOR T107814)

2шт.

2

12H294

LOCK WASHER

5/8"

26шт.

3

T107748

O-RING

1шт.

4

1009855

HOUSING

(SUB FOR T107724)

1шт.

5

TH100463

SEAL

1шт.

6

JD10425

BEARING CONE

2шт.

JD10423

BEARING CUP

2шт.

7

1010010

DRUM

(SUB FOR T107811)

1шт.

9

3032083

NUT

(SUB FOR T107813)

1шт.

10

4178862

LOCK PLATE

(SUB FOR T107725)

1шт.

11

19M7938

CAP SCREW

M10 X 20

2шт.

12

1009857

PLANET PINION CARRIER

(SUB FOR T107726)

1шт.

13

3034324

GEAR

(SUB FOR T107731)

1шт.

14

2022210

PLANET PINION CARRIER

(SUB FOR T107733)

1шт.

15

4183819

WASHER

(SUB FOR T107734)

1шт.

16

3034326

GEAR

(SUB FOR T107738)

1шт.

17

4196488

PLATE

(SUB FOR T107743)

6шт.

18

4172392

NEEDLE BEARING

(SUB FOR T107742)

3шт.

19

4172398

BUSHING

(SUB FOR T107744)

3шт.

20

3031946

GEAR

(SUB FOR T107741)

3шт.

3041347

GEAR

(SUB FOR T90135)

3шт.

21

34M5723

SPRING PIN

(SUB FOR 34M7181, THIS APPLICATION)

3шт.

4192020

SPRING PIN

(SUB FOR TH111239)

3шт.

22

2020865

PLANET PINION CARRIER

(SUB FOR T107739)

1шт.

2025788

PLANET PINION CARRIER

(SUB FOR T90134)

1шт.

23

4192982

PLATE

(SUB FOR T107736)

6шт.

24

3034325

GEAR

(SUB FOR T107735)

3шт.

25

34M5723

SPRING PIN

5 X 55 MM, (SUB FOR 34M7050, THIS APPLICATION)

3шт.

34M5723

SPRING PIN

5 X 55 MM, (SUB FOR 34M7181, THIS APPLICATION)

3шт.

26

4144558

BUSHING

(SUB FOR TH102298)

3шт.

27

4126657

NEEDLE BEARING

(SUB FOR TH102299)

3шт.

28

4135227

THRUST WASHER

(SUB FOR TH100477)

6шт.

29

3034323

GEAR

(SUB FOR T107727)

3шт.

30

34M7051

SPRING PIN

8 X 60 MM

3шт.

31

4139975

PIN FASTENER

(SUB FOR T107729)

3шт.

32

4183818

NEEDLE BEARING

(SUB FOR T107728)

6шт.

33

4172391

WASHER

(SUB FOR T107740)

1шт.

34

2020862

SHAFT

(SUB FOR T107746)

1шт.

2025789

SHAFT

(SUB FOR T90136)

1шт.

35

1010509

RING GEAR

(SUB FOR T107732)

1шт.

36

19M7489

CAP SCREW

M16 X 45

24шт.

37

2022683

COVER

(SUB FOR T107747)

1шт.

2028454

COVER

(SUB FOR T90137) (SUB FOR T125862)

1шт.

38

94-2013

FITTING PLUG

(SUB FOR AT128487) (SUB FOR TH100648)

2шт.

94-2013

FITTING PLUG

(SUB FOR AT128487) (SUB FOR TH100648)

3шт.

39

12H301

LOCK WASHER

1/2"

12шт.

40

19M8169

SCREW

M12 X 30

12шт.

41

AT184454

HYDRAULIC MOTOR

(REMANUFACTURED) (SUB FOR AT112587)

1шт.

AT184456

HYDRAULIC MOTOR

(REMANUFACTURED) (SUB FOR AT90576)

1шт.

42

CAP

(NO LONGER REQUIRED)

1шт.
