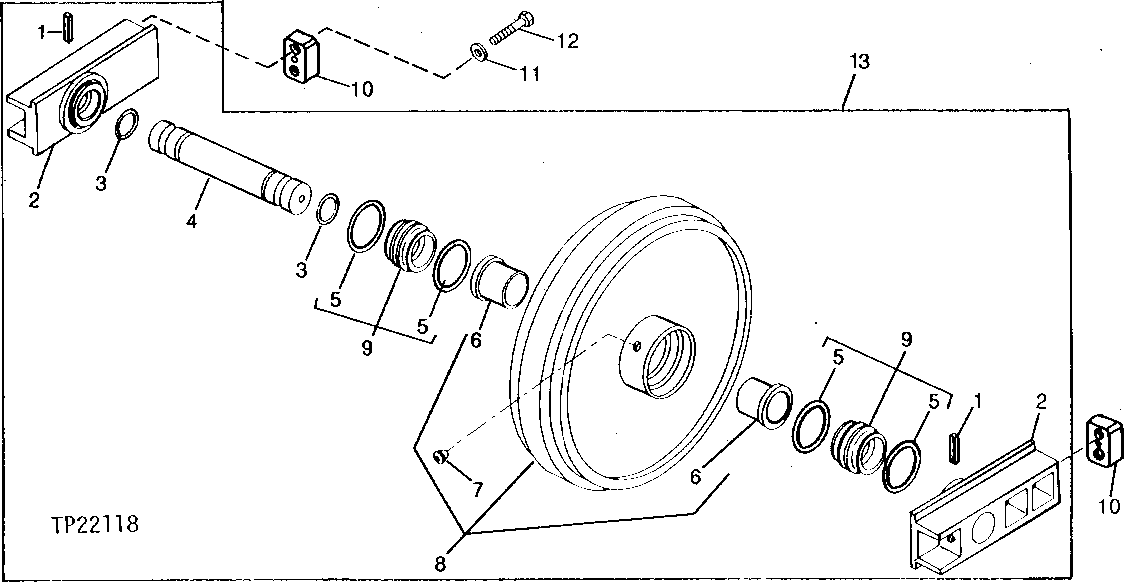

Запчасти John Deere 90D 7A - FRONT IDLER 130 - TRACKS 1

1

AT108618

SPRING PIN

2шт.

2

T119923

BRACKET

2шт.

3

F1649R

O-RING

2шт.

4

T119922

SHAFT

1шт.

5

O-RING

( T71761 NO LONGER AVAILABLE) (SUB AT38824)

3шт.

6

T119927

BUSHING

2шт.

7

15M6267

DRAIN PLUG

1шт.

8

AT117734

IDLER

1шт.

9

AT38824

SEAL

METAL FACE

3шт.

10

T119924

SPACER

2шт.

11

24M7396

WASHER

21 X 34 X 3 MM, (SUB FOR 12M7103)

4шт.

12

19M8480

SCREW

4шт.

13

AT90353

TRACK IDLER

1шт.
