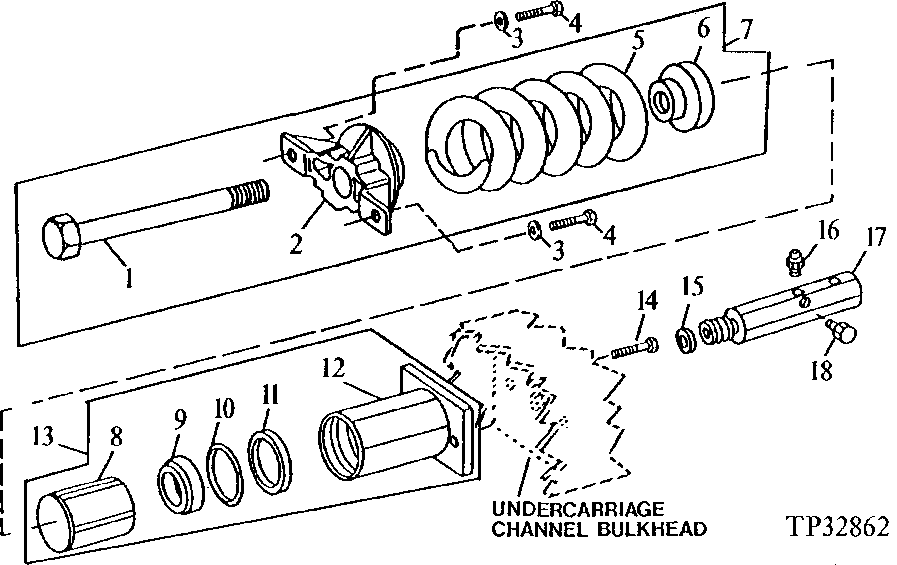

Запчасти John Deere 90D 5A - REPLACEMENT ADJUSTING CYLINDER AND IDLER SPRING ASSEMBLY 130 - TRACKS 1

1

BOLT

(SUB AT142906)

1шт.

2

YOKE

(SUB AT142906)

1шт.

3

24M1589

WASHER

17 X 30 X 3 MM

2шт.

4

19M7489

CAP SCREW

M16 X 45

2шт.

5

SPRING

(SUB AT142906)

1шт.

6

RETAINER

(SUB AT142906)

1шт.

7

AT142906

SPRING

1шт.

8

PISTON

1шт.

9

T128639

SEAL

(USE WITH AT142902)

1шт.

T166521

SEAL

(USE WITH AT186520)

1шт.

10

T129369

BACK-UP RING

(USE WITH AT142902)

1шт.

11

T128638

SEAL

(USE WITH AT142902)

1шт.

T166522

SEAL

(USE WITH AT186520)

1шт.

12

HYDRAULIC CYLINDER BARREL

1шт.

13

AT186520

CYLINDER

(USE IF AVAILABLE) (SUB FOR AT142902) (SUB AT186520)

1шт.

AT186520

CYLINDER

1шт.

14

19M7493

CAP SCREW

M12 X 40

2шт.

15

AT48016

SEAL

1шт.

16

JD10510

LUBRICATION FITTING

1шт.

17

T128625

ADAPTER FITTING

1шт.

18

15H558

PIPE PLUG

1/8"

2шт.
