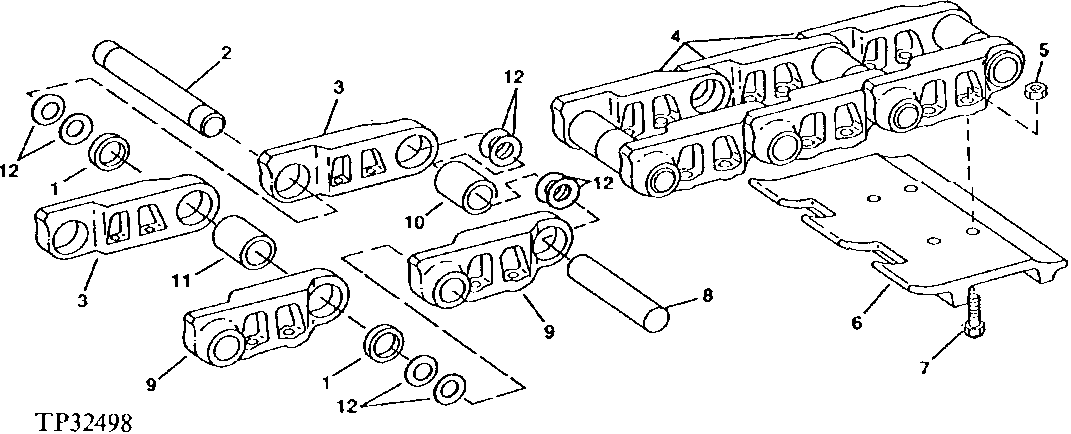

Запчасти John Deere 90D 2 - HEAVY-DUTY TRACK 130 - TRACKS 1

1

T70781

WASHER

(K)

4шт.

2

AT67751

INSTRUCTIONS

(K) MASTER, (INCLUDES (2) T70781 AND (4) T70780)

1шт.

T61369

PIN FASTENER

(K) OVERSIZE MASTER PIN, (SUB FOR AT67750) (INCLUDES (2) T70781 AND (4) T70780)

1шт.

3

T70316

STRUTTED LINK-RH

RIGHT (47 PER TRACK)

1шт.

4

AT156492

LINK CHAIN

(SUB FOR AT134972) WITHOUT SHOES (SUB FOR AT107155 BY REMOVING ONE LINK)

1шт.

5

T127847

NUT

SHOE (188 PER TRACK)

1шт.

6

T104468

DOUBLE BAR SHOE

600 MM (24") (47 PER TRACK)

1шт.

T104469

DOUBLE BAR SHOE

750 MM (30") (47 PER TRACK)

1шт.

7

T127846

BOLT

SHOE (188 PER TRACK)

1шт.

8

T70778

TRACK PIN

(K) TRACK LINK (46 PER TRACK)

1шт.

9

T70317

STRUTTED LINK-LH

LEFT (47 PER TRACK)

1шт.

10

T104466

BUSHING

(K) TRACK CHAIN (46 PER TRACK) (USE IF AVAILABLE) (SUB T70777)

1шт.

T70777

BUSHING

(K) TRACK CHAIN (46 PER TRACK) (REPLACEMENT)

1шт.

11

T104467

BUSHING

(K) MASTER (USE IF AVAILABLE) (SUB T70779)

1шт.

T70779

MASTER TRACK BUSHING

(K) MASTER (REPLACEMENT)

1шт.

12

T70780

SPRING WASHER

(K)

8шт.
