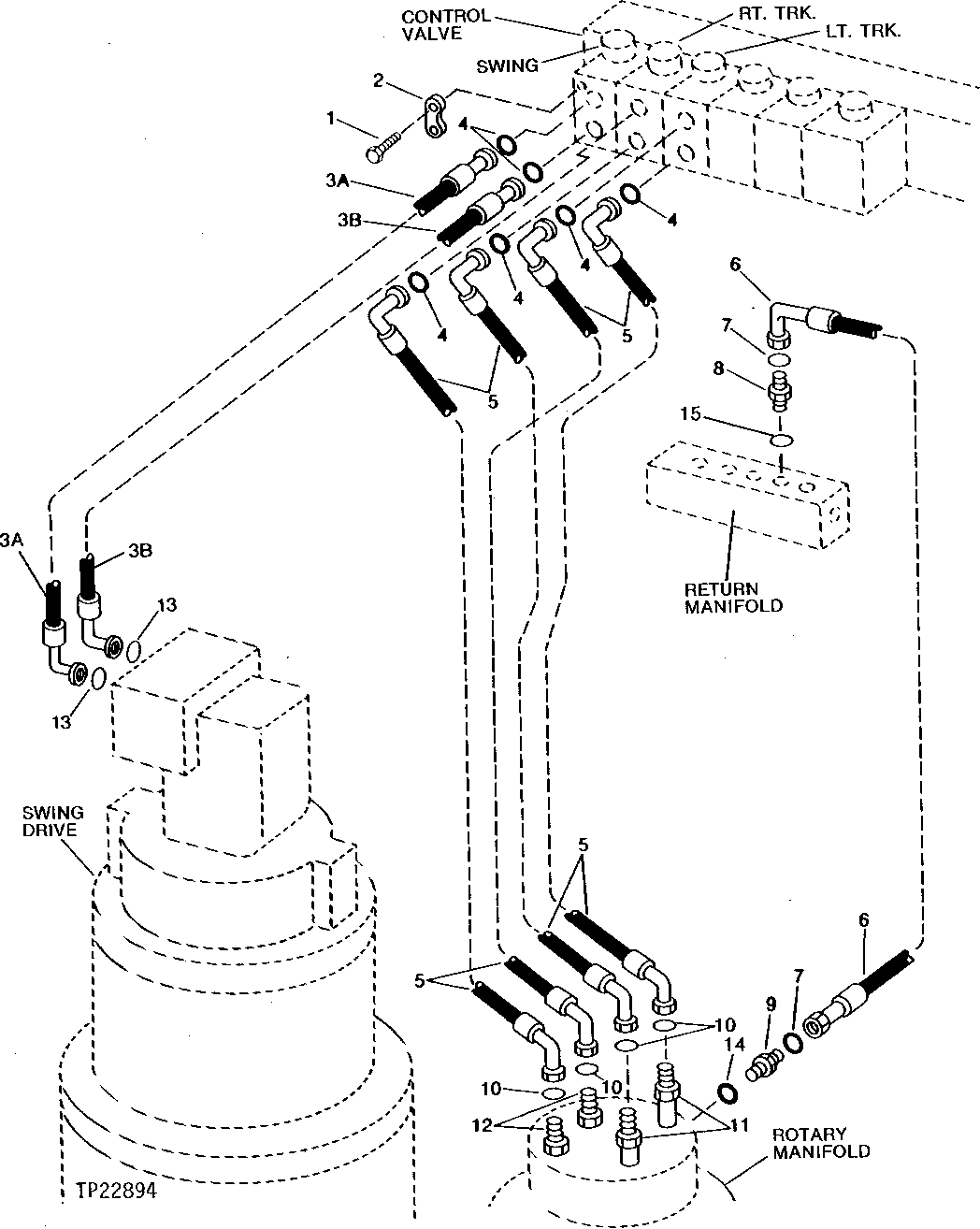

Запчасти John Deere 90D 2 - CONTROL VALVE TO SWING MOTOR AND ROTARY MANIFOLD HOSES 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43

1

19M7493

CAP SCREW

M12 X 40, SWING MOTOR PORTS

8шт.

19M8881

SCREW

M10 X 30, VALVE SECTIONS

24шт.

2

T107446

FLANGE FITTING

VALVE SECTION PORTS

12шт.

T107068

FLANGE FITTING

(SUB FOR E73095) SWING MOTOR PORTS

4шт.

3A

AT107279

HYDRAULIC HOSE - FABRICATE

3/4" X 750 MM (29-1/2") X 1"

1шт.

3B

AT107280

HYDRAULIC HOSE - FABRICATE

1" X 620 MM (24-1/2") X 1"

1шт.

4

T59014

O-RING

6шт.

5

AT125475

HYDRAULIC HOSE

(SUB FOR AT107275)

4шт.

6

AT112188

HYDRAULIC HOSE - FABRICATE

13/16" X 838 MM (33") X 13/16"

1шт.

7

T77857

O-RING

1шт.

T77857

O-RING

1шт.

8

38H1161

ADAPTER FITTING

1шт.

9

4198407

ADAPTER FITTING

(SUB FOR AT107395)

1шт.

10

T77858

O-RING

4шт.

11

4189539

ADAPTER FITTING

(SUB FOR AT107393)

2шт.

AT318035

O-RING

(SUB FOR 4506424, TH100055) BETWEEN ADAPTER AND MANIFOLD

2шт.

38H1194

ADAPTER FITTING

2шт.

R29936

O-RING

2шт.

12

A853166

ADAPTER FITTING

(SUB FOR AT107392 OR 4189619)

2шт.

AT318035

O-RING

(SUB FOR 4506424, TH100055) BETWEEN ADAPTER AND MANIFOLD

2шт.

38H1194

ADAPTER FITTING

2шт.

R29936

O-RING

2шт.

13

T78313

O-RING

2шт.

14

R56464

O-RING

1шт.

15

R47150

O-RING

1шт.

16

N189220

TIE BAND

(SUB FOR AA21510) (NOT ILLUSTRATED) (PUT AROUND PROPEL H0SES TO SEPERATE FROM BUCKET TUBE)

1шт.
