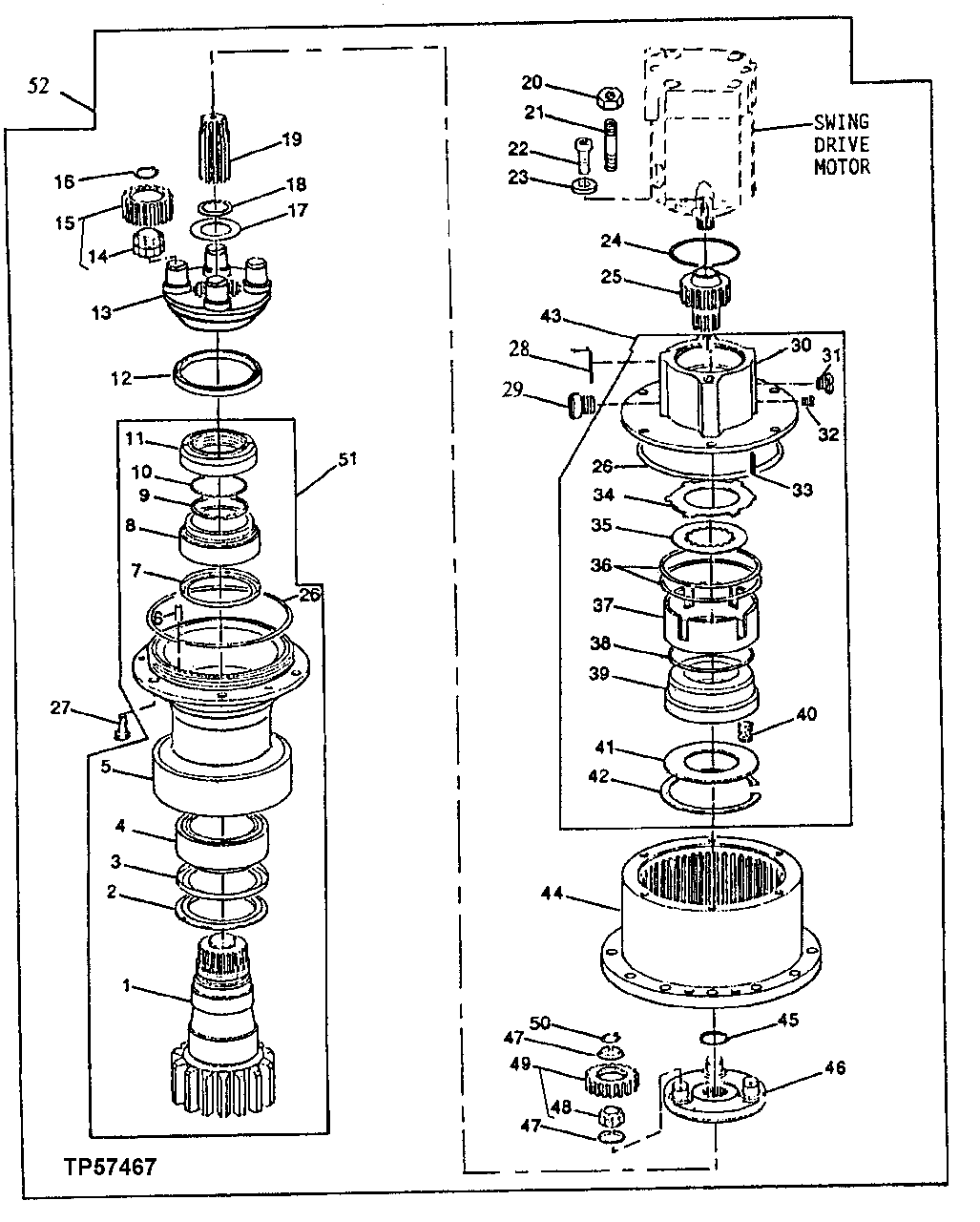

Запчасти John Deere 90D 2 - SWING GEARBOX 4350 - SWING, ROTATION OR PIVOTING SYSTEM 43

1

PINION

(SUB FOR T107945) ( T126362 NLA)

1шт.

T107945

PINION SHAFT

(SERIAL NUMBER APPLIES IF UNIT HAS ORIGINALLY INSTALLED SWING BEARING, IF SWING BEARING HAS BEEN REPLACED, THEN REPLACEMENT PINION NEEDS TO BE INSTALLED) (SHAFT HAS 26 TEETH ON THE SMALL END AND 14 ON THE OTHER)

1шт.

PINION

(SHAFT HAS 26 TEETH ON THE SMALL END AND 11 ON THE OTHER) ( T126362 NLA)

1шт.

2

T107954

COVER

1шт.

3

T206287

SEAL

(SUB FOR T107876)

1шт.

4

RE50957

TAPERED ROLLER BEARING

(SUB FOR JD10043)

1шт.

RE50957

TAPERED ROLLER BEARING

(SUB FOR JD10042)

1шт.

5

T107946

HOUSING

1шт.

6

MAGNET

( T107890 NLA)

1шт.

7

T206286

SEAL

(SUB FOR T107875)

1шт.

8

JD10438

TAPERED ROLLER BEARING

1шт.

9

T107955

SPACER

1шт.

10

U43352

O-RING

1шт.

11

T107956

NUT

1шт.

12

T206279

SEAL

(SUB FOR AT112723)

1шт.

13

T107948

PLANET PINION CARRIER

1шт.

14

ROLLER BEARING

(SUB AT169970)

1шт.

15

AT169970

GEAR

(SUB FOR AT114846) (INCLUDES BEARING)

4шт.

16

40M7046

SNAP RING

4шт.

17

T107833

WASHER

1шт.

18

40M7047

SNAP RING

1шт.

19

T107953

GEAR

1шт.

20

14M7276

NUT

M16

2шт.

21

42M3454

STUD

2шт.

22

BOLT

(USE (2) 14M7276 AND (2) 42M3454)

2шт.

23

T107828

WASHER

2шт.

24

T107883

O-RING

1шт.

25

T107952

GEAR

1шт.

26

U42016

O-RING

2шт.

27

19M8881

SCREW

M10 X 30

12шт.

28

GROOVE PIN

NO LONGER REQUIRED

2шт.

29

AT112799

FITTING PLUG

1шт.

30

T107957

HOUSING

1шт.

31

15M7032

PIPE PLUG

1шт.

32

T107869

ORIFICE

1шт.

33

34M7113

SPRING PIN

(SUB FOR 34M6994)

6шт.

34

T107959

DISK

6шт.

35

T107958

DISK

5шт.
