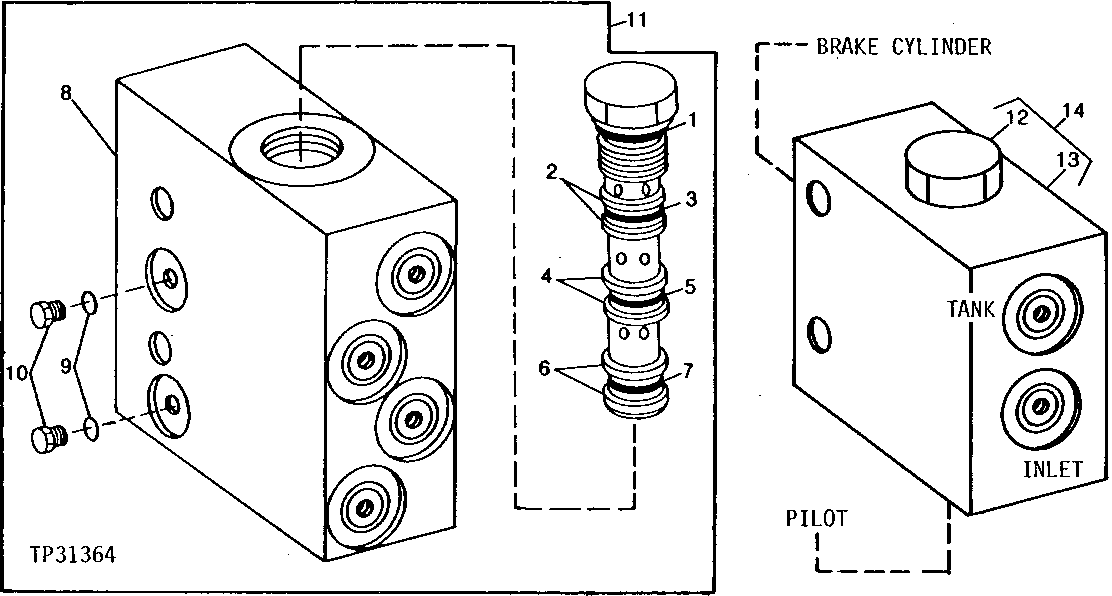

Запчасти John Deere 90D 2 - SWING BRAKE RELEASE VALVE 4311 - SWING, ROTATION OR PIVOTING SYSTEM 43

1

R26906

O-RING

(K)

1шт.

2

BACK-UP RING

(K)

2шт.

3

O-RING

(K)

1шт.

4

BACK-UP RING

(K)

2шт.

5

O-RING

(K)

1шт.

6

BACK-UP RING

(K)

2шт.

7

O-RING

(K)

1шт.

8

HOUSING

1шт.

9

R28782

O-RING

2шт.

10

R51031

FITTING

2шт.

11

AT112493

VALVE

1шт.

HYD ACTUATED CONTROL VALVE

(SUB FOR AT125553) ( AT135520 ASSY NLA)

1шт.

12

AT135521

PRESSURE RELIEF VALVE

1шт.

13

T126967

HOUSING

1шт.

14

HYD ACTUATED CONTROL VALVE

(WHEN REPLACING AT112493 OR AT125553, ALSO ORDER AT112190, AT72002, 38H1314, AND 38H1173) ( AT135520 ASSY NLA)

1шт.
