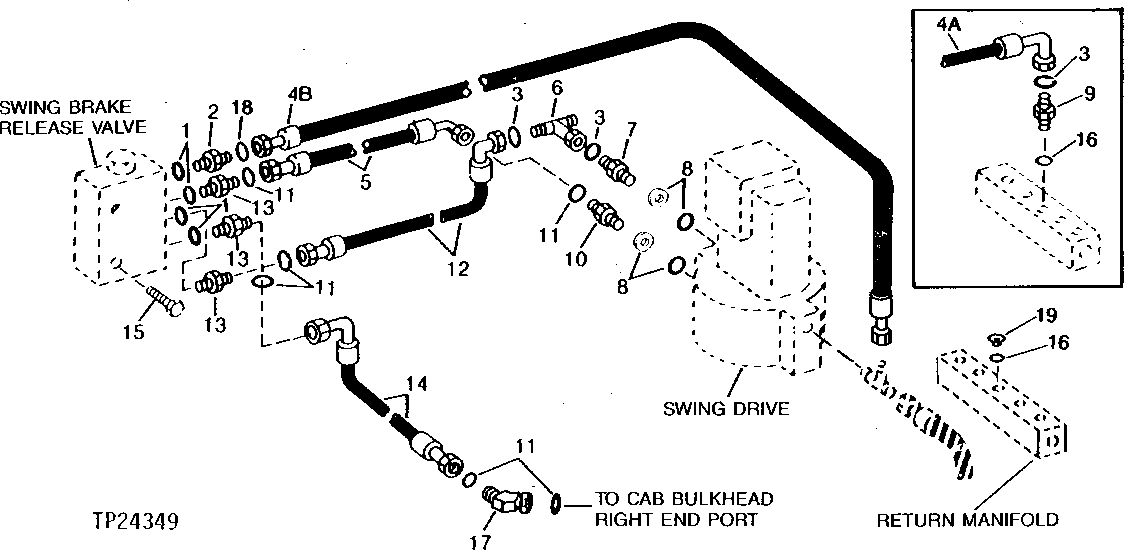

Запчасти John Deere 90D 79 - SWING BRAKE RELEASE VALVE HOSES 3360 - BACKHOE AND EXCAVATOR 33

1

R26448

O-RING

(SUB FOR T70177)

4шт.

2

38H1160

ADAPTER FITTING

(SUB FOR 38H1173, THIS APPLICATION)

1шт.

3

T77857

O-RING

3шт.

T77857

O-RING

2шт.

4A

AT112190

HYDRAULIC HOSE - FABRICATE

13/16" X 1 207 MM (47-1/2") X 13/16"

1шт.

4B

AT81929

HYDRAULIC HOSE - FABRICATE

11/16" X 635 MM (25") X 13/16"

1шт.

5

AT100550

HYDRAULIC HOSE - FABRICATE

11/16" X 560 MM (22") X 11/16"

1шт.

6

38H1039

TEE FITTING

1шт.

7

T107661

ADAPTER FITTING

1шт.

8

51M4236

SEALING RING

2шт.

T55758

O-RING

(SUB FOR P51212, THIS APPLICATION)

2шт.

9

38H1161

ADAPTER FITTING

1шт.

10

T104327

ADAPTER FITTING

1шт.

11

T77613

O-RING

5шт.

12

AT79336

HYDRAULIC HOSE - FABRICATE

11/16" X 585 MM (23") X 13/16"

1шт.

13

38H1160

ADAPTER FITTING

3шт.

14

AT84776

HYDRAULIC HOSE - FABRICATE

11/16" X 1 075 MM (42-1/4") X 11/16", (ALSO ORDER 38H1094 AND T77613) (SUB FOR AT82381)

1шт.

15

19M7164

CAP SCREW

M8 X 50

2шт.

16

R47150

O-RING

1шт.

17

38H1094

ELBOW FITTING

(USE WITH AT84776)

1шт.

18

T77613

O-RING

(SUB FOR T77857, THIS APPLICATION)

1шт.

19

R39112

FITTING

1шт.
