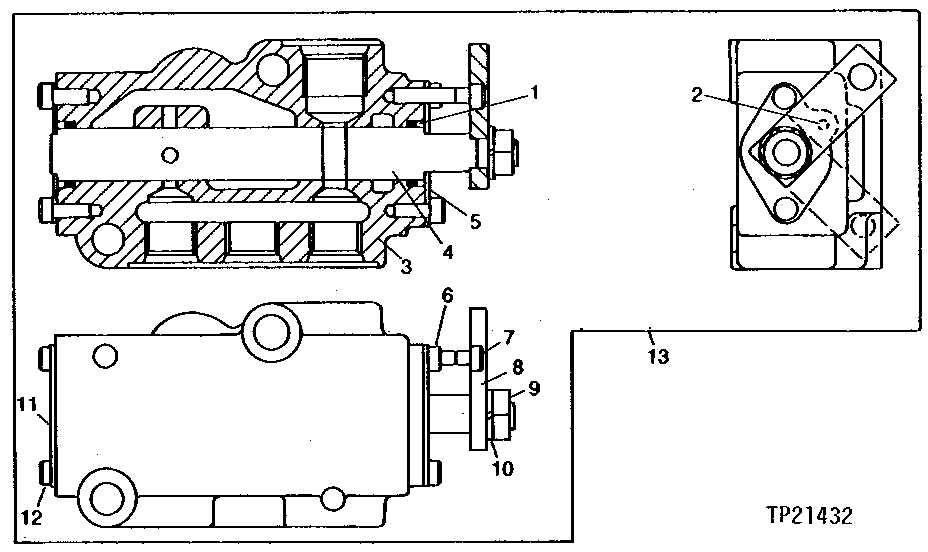

Запчасти John Deere 90D 78 - PILOT CONTROL SHUT-OFF VALVE 3360 - BACKHOE AND EXCAVATOR 33

1

CH14634

O-RING

0-RING, (SUB FOR TH101305)

1шт.

2

0309902

BALL

(SUB FOR TH109297)

1шт.

3

HOUSING

(SUB TH108432)

1шт.

4

SPOOL

(SUB TH108432)

1шт.

5

0309904

BACK-UP RING

(SUB FOR TH109299) BACK-UP RING

1шт.

6

NUT

( 4S00334 NO LONGER REQUIRED)

1шт.

7

0344046

BOLT

(SUB FOR TH109302 OR TH109301) (SUB FOR AT121123)

1шт.

8

0309903

LEVER

(SUB FOR TH109298)

1шт.

9

0309910

NUT

(SUB FOR TH109305)

1шт.

10

12M7066

LOCK WASHER

10 MM, (SUB FOR TH109303)

1шт.

11

0309905

HOLDER

(SUB FOR TH109300)

2шт.

12

0344046

BOLT

(SUB FOR TH109301) (SUB FOR AT121123)

3шт.

13

4179025

FLOW CONTROL HYD. VALVE

(SUB FOR TH108432)

1шт.
