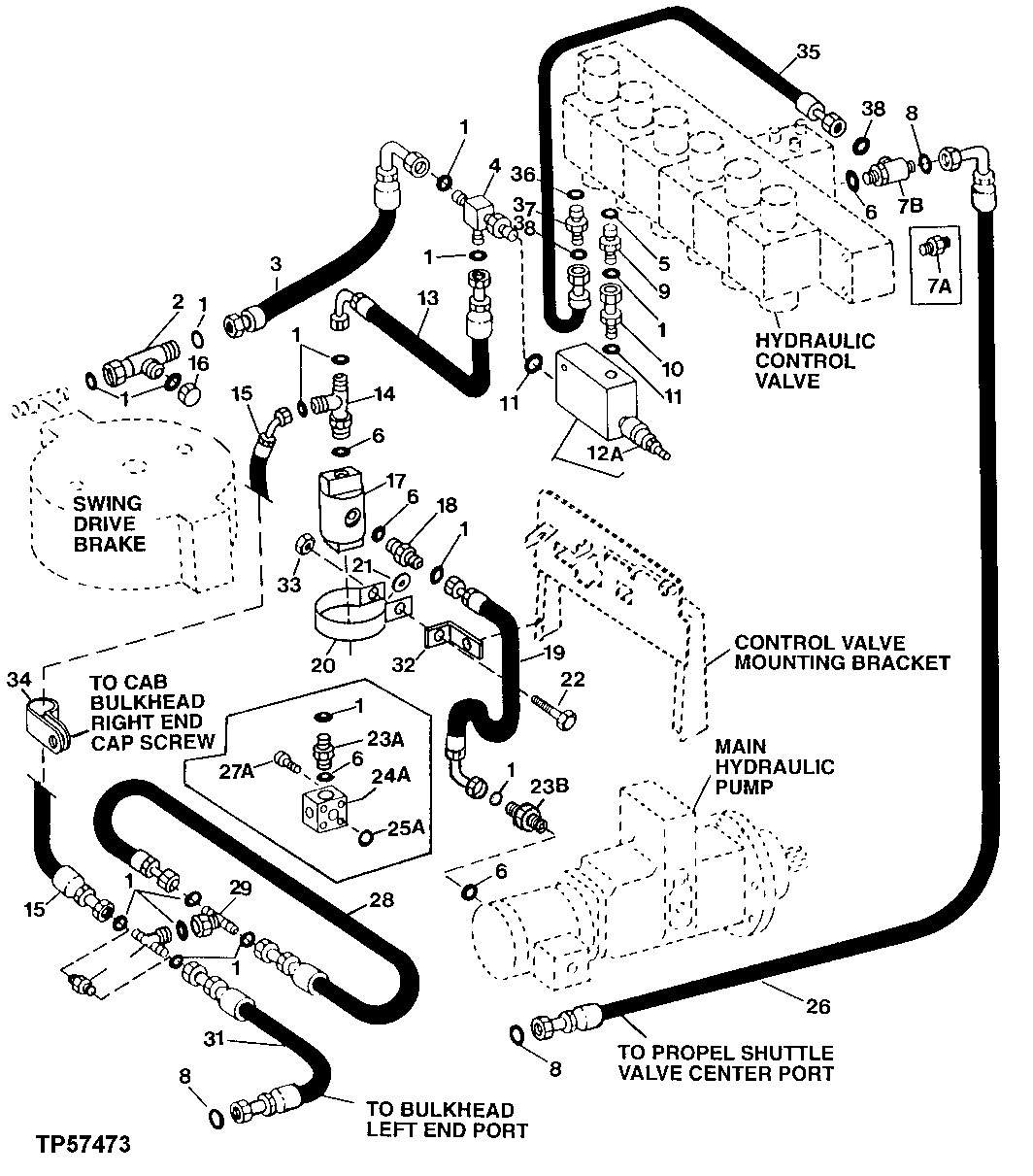

Запчасти John Deere 90D 74 - PILOT RELIEF VALVE AND PILOT FILTER 3360 - BACKHOE AND EXCAVATOR 33

1

T77857

O-RING

(NO LONGER REQUIRED)

15шт.

T77857

O-RING

12шт.

2

38H1031

TEE FITTING

1шт.

3

AT72027

HYDRAULIC HOSE - FABRICATE

13/16" X 762 MM (30") X 13/16"

1шт.

4

38H1024

TEE FITTING

1шт.

5

R26906

O-RING

(SUB FOR R47151)

2шт.

6

R26448

O-RING

(SUB FOR T70177) TO PILOT FILTER

4шт.

7A

38H1160

ADAPTER FITTING

1шт.

7B

38H1023

TEE FITTING

1шт.

8

T77613

O-RING

3шт.

9

38H1174

ADAPTER FITTING

1шт.

10

38H1068

ADAPTER FITTING

1шт.

11

R26375

O-RING

(SUB FOR R47150)

3шт.

12

AT114899

PRESSURE RELIEF VALVE

PILOT, ASSEMBLY

1шт.

12A

PRESSURE RELIEF VALVE

( AT115073 NO LONGER AVAILABLE) TO REPAIR, USE AT112135

1шт.

AT112135

SEAL KIT

USE TO REPAIR AT115073

1шт.

13

AT82905

HYDRAULIC HOSE - FABRICATE

13/16" X 530 MM (20-3/4") X 13/16"

1шт.

14

AT85009

TEE FITTING

1шт.

15

AT79334

HYDRAULIC HOSE - FABRICATE

13/16" X 1 110 MM (43-3/4") X 13/16"

1шт.

16

38H1416

FITTING

1шт.

17

AT115276

HYDRAULIC FILTER

(SUB FOR AT105480)

1шт.

18

38H1173

ADAPTER FITTING

1шт.

19

AT72027

HYDRAULIC HOSE - FABRICATE

13/16" X 762 MM (30") X 13/16"

1шт.

20

E63955

CLAMP

(ALSO ORDER 28H1615)

1шт.

21

24M7239

WASHER

10.700 X 21 X 2.500 MM, (BETWEEN ENDS OF E63955)

1шт.

22

19M7786

SCREW

M10 X 30

1шт.

23A

38H1173

ADAPTER FITTING

1шт.

23B

38H1174

ADAPTER FITTING

1шт.

24A

T107651

ADAPTER FITTING

1шт.

25A

R26448

O-RING

1шт.

26

AT125427

HYDRAULIC HOSE - FABRICATE

11/16" X 2 177 MM (85-3/4") X 11/16", (SUB FOR AT112113)

1шт.

27A

19M8532

SCREW

(SUB FOR 19M8110)

4шт.

28

AT101444

HYDRAULIC HOSE - FABRICATE

13/16" X 780 MM (30-3/4") X 13/16"

1шт.

29

38H1039

TEE FITTING

1шт.

30

38H1206

TEE FITTING

1шт.

38H1279

UNION FITTING

1шт.

31

AT112505

HYDRAULIC HOSE - FABRICATE

13/16" X 1 397 MM (55") X 11/16"

1шт.

32

T29495

ANGLE

TO FLYWHEEL ISOLATOR CAP SCREW

1шт.

33

14M7296

FLANGE NUT

1шт.

34

T38377

CLAMP

1шт.

35

AT116603

HYDRAULIC HOSE

11/16" X 533 MM (21") X 11/16", PILOT TEE TO SWING VAVLE PLATE, (SUB FOR AT105369, THIS APPLICATION) (SUB FOR AT79569)

1шт.

36

R26448

O-RING

1шт.

37

38H1160

ADAPTER FITTING

1шт.

38

T77613

O-RING

2шт.
