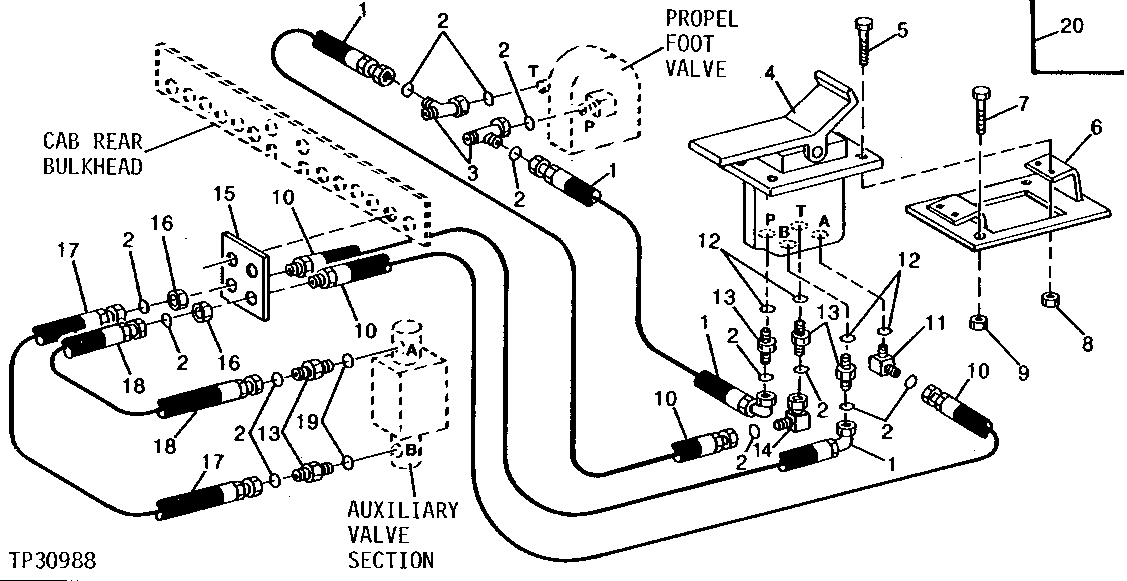

Запчасти John Deere 90D 72 - AUXILIARY FOOT VALVE, LINES AND FITTINGS 3360 - BACKHOE AND EXCAVATOR 33

1

AT81931

HYDRAULIC HOSE - FABRICATE

11/16" X 515 MM (20-1/4") X 11/16"

2шт.

2

T77613

O-RING

13шт.

3

38H1030

TEE FITTING

2шт.

4

AT115475

SELF-OPERATING VALVE

1шт.

5

19M7866

SCREW

M8 X 20

4шт.

6

AT115535

SUPPORT

1шт.

7

19M7784

SCREW

M10 X 20

2шт.

8

14M7298

FLANGE NUT

M8

4шт.

9

14M7296

FLANGE NUT

M10

2шт.

10

AT82738

HYDRAULIC HOSE

11/16" X 1 400 MM (55") X 11/16"

2шт.

11

38H1004

ELBOW FITTING

1шт.

12

R26448

O-RING

(SUB FOR T70177, THIS APPLICATION)

4шт.

13

38H1160

ADAPTER FITTING

5шт.

14

38H1094

ELBOW FITTING

1шт.

15

T115146

PLATE

1шт.

16

T81029

NUT

2шт.

17

AT112197

HYDRAULIC HOSE - FABRICATE

11/16" X 1 425 MM (56") X 11/16"

1шт.

18

AT125429

HYDRAULIC HOSE - FABRICATE

11/16" X 1 650 MM (65") X 11/16", (SUB FOR AT112195)

1шт.
