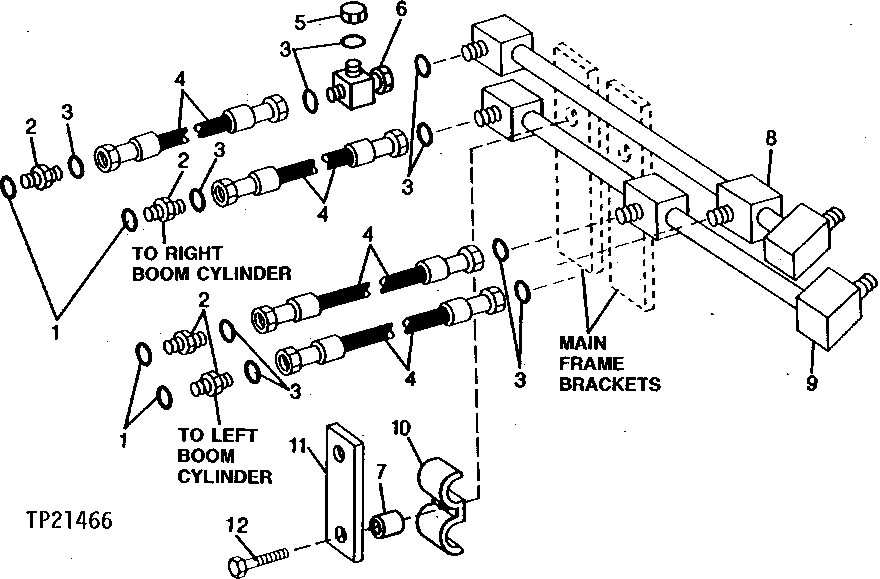

Запчасти John Deere 90D 66 - BOOM CYLINDER JUNCTION TUBES AND BOOM CYLINDER HOSES 3360 - BACKHOE AND EXCAVATOR 33

1

AT318035

O-RING

(SUB FOR 4506424, TH100055)

4шт.

2

A853166

ADAPTER FITTING

(SUB FOR AT107392 OR 4189619)

4шт.

3

T112012

PACKING

10шт.

4

AT107220

HYDRAULIC HOSE - FABRICATE

1-3/16" X 774 MM (30-1/2") X 1-3/16"

4шт.

5

38H1418

FITTING

1шт.

38H1418

FITTING

JUNCTION TUBES

4шт.

T77858

O-RING

(USE WITH (4) 38H1418)

4шт.

6

38H1033

TEE FITTING

1шт.

7

28H1517

WASHER

0.493" X 0.675" X 1/4"

1шт.

8

AT112366

OIL LINE

1шт.

9

AT112367

OIL LINE

1шт.

10

T35459

CLAMP

(SUB FOR T52978, THIS APPLICATION)

2шт.

11

H80636

STRAP

(SUB FOR U42363, THIS APPLICATION)

1шт.

12

19M7807

SCREW

M10 X 60

2шт.

14M7296

FLANGE NUT

M10

2шт.
