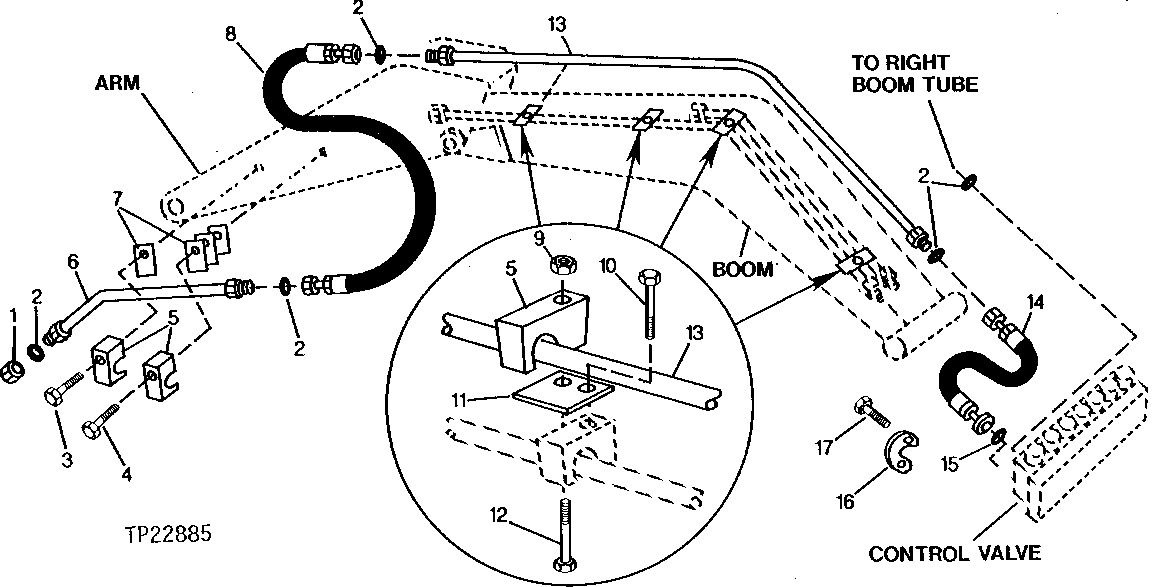

Запчасти John Deere 90D 58 - AUXILIARY HYDRAULIC HOSES AND LINES 3360 - BACKHOE AND EXCAVATOR 33

1

38H1419

FITTING

2шт.

2

T76938

O-RING

8шт.

3

19M7753

CAP SCREW

M12 X 70

2шт.

4

19M7943

CAP SCREW

M12 X 90

2шт.

5

T104355

CLAMP

12шт.

6

AT115521

OIL LINE

LONG ARM

2шт.

AT115522

OIL LINE

SHORT ARM

2шт.

7

SPACER

3/8" X 1.5" X 2.99" WITH 0.521" HOLE

8шт.

8

AT106935

HYDRAULIC HOSE - FABRICATE

1-7/16" X 1 600 MM (63") X 1-7/16"

2шт.

9

14M7299

FLANGE NUT

M12

8шт.

10

19M7753

CAP SCREW

M12 X 70

8шт.

11

T108076

PLATE

8шт.

12

19M7816

SCREW

M12 X 65

2шт.

13

AT184394

OIL LINE

(SUB FOR AT107051) LEFT SIDE OF BOOM

1шт.

AT184394

OIL LINE

(SUB FOR AT107052) RIGHT SIDE OF BOOM (NOT ILLUSTRATED)

1шт.

14

AT115524

HYDRAULIC HOSE

3/4" X 1 350 MM (53-1/4") X 1-7/16"

2шт.

15

T59014

O-RING

2шт.

16

T107446

FLANGE FITTING

4шт.

17

19M8881

SCREW

M10 X 30

8шт.
