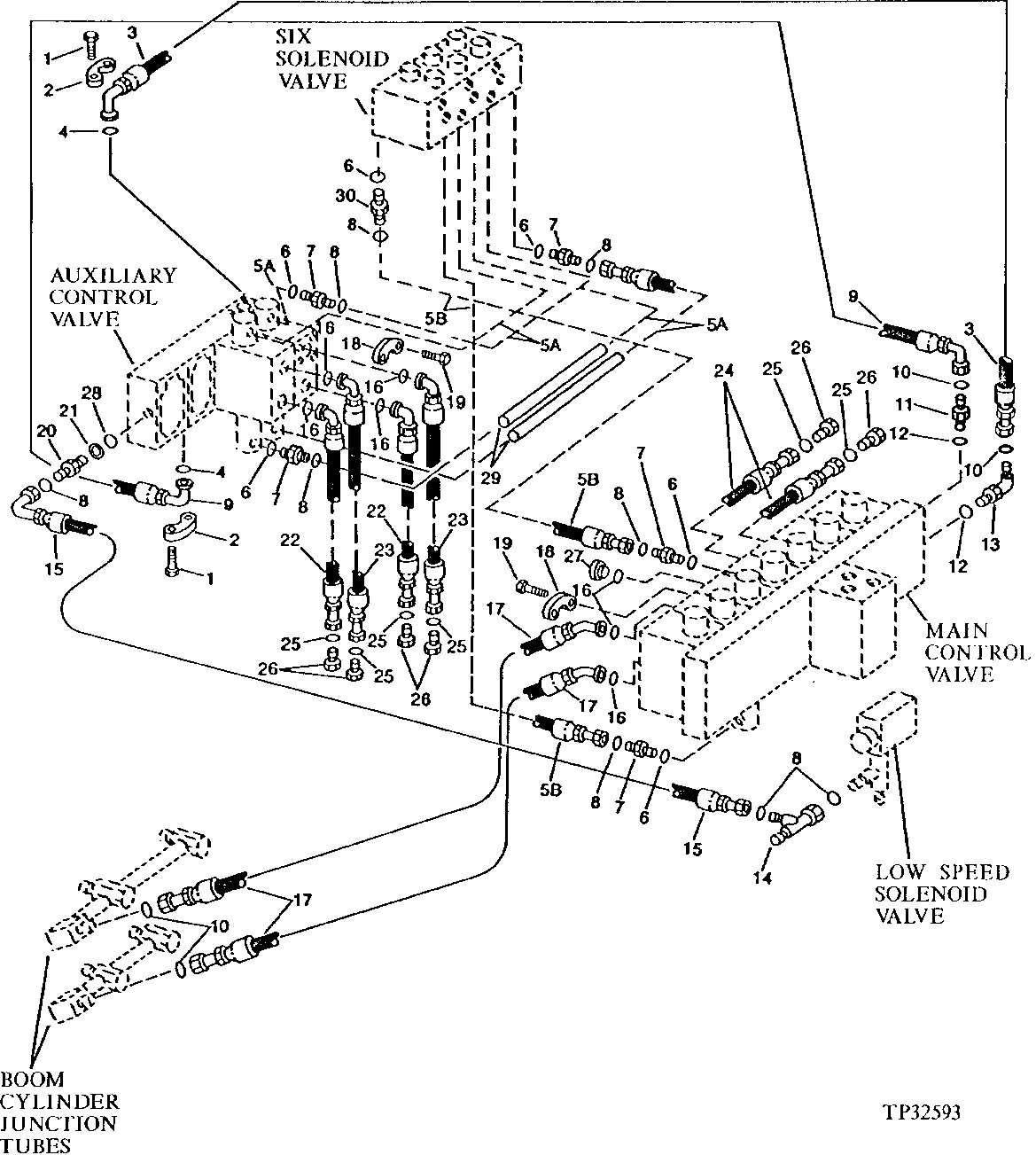

Запчасти John Deere 90D 57A - DELIMBER-VALVE HOSES AND FITTINGS 3360 - BACKHOE AND EXCAVATOR 33

1

19M7493

CAP SCREW

M12 X 40

8шт.

2

T107068

FLANGE FITTING

(SUB FOR E73093)

4шт.

3

AT115152

HYDRAULIC HOSE - FABRICATE

1" X 1 000 MM (39-1/4") X 1-7/16"

1шт.

4

T78313

O-RING

2шт.

5A

AT100550

HYDRAULIC HOSE - FABRICATE

11/16" X 560 MM (22") X 11/16"

4шт.

5B

AT116603

HYDRAULIC HOSE

11/16" X 533 MM (21") X 11/16", (SUB FOR AT79569)

2шт.

6

R26448

O-RING

(SUB FOR T70177)

12шт.

7

38H1160

ADAPTER FITTING

9шт.

8

T77613

O-RING

15шт.

9

AT115153

HYDRAULIC HOSE

1" X 1 050 MM (41-1/4") X 1-7/16"

1шт.

10

T76938

O-RING

4шт.

11

38H1164

ADAPTER FITTING

1шт.

R36636

FITTING PLUG

(NOT ILLUSTRATED) (FOR USE WITHOUT AUXILIARY VALVE)

1шт.

12

R29936

O-RING

2шт.

13

38H1037

ELBOW FITTING

1шт.

R36636

FITTING PLUG

(NOT ILLUSTRATED) (FOR USE WITHOUT AUXILIARY VALVE)

1шт.

14

38H1030

TEE FITTING

1шт.

38H1030

TEE FITTING

(ON PUMP CONTROL BLOCK LOAD SENSING PORT TEE) (SEE "LOAD SENSING LINES", 693D)

1шт.

15

AT141921

HYDRAULIC HOSE - FABRICATE

11/16" X 1 016 MM (40") X 11/16", (SUB FOR AT115198)

1шт.

AT141921

HYDRAULIC HOSE - FABRICATE

11/16" X 1 016 MM (40") X 11/16", (FROM AUXILIARY CONTROL VALVE LOAD SENSING PORT (AS SHOWN) TO PUMP CONTROL BLOCK LOAD SENSING PORT TEE) (SEE "LOAD SENSING LINES", 693D)

1шт.

16

T59014

O-RING

PLUGS AND HOSES TO VALVE SECTIONS

8шт.

17

AT115171

HYDRAULIC HOSE - FABRICATE

3/4" X 1 340 MM (52-3/4") X 1-7/16"

2шт.

18

T107446

FLANGE FITTING

HOSES AND PLUGS TO VALVE SECTIONS

24шт.

19

19M8881

SCREW

M10 X 30, PLUGS AND HOSES TO VALVE SECTIONS

32шт.

20

T104327

ADAPTER FITTING

1шт.

21

51M4236

SEALING RING

1шт.

22

AT115142

HYDRAULIC HOSE - FABRICATE

3/4" X 1 155 MM (45-1/2") X 1-3/16"

2шт.

23

AT115143

HYDRAULIC HOSE

3/4" X 1 194 MM (47") X 1-3/16"

2шт.

24

AT115154

HYDRAULIC HOSE - FABRICATE

3/4" X 1 499 MM (59") X 1-3/16"

2шт.

25

T77858

O-RING

6шт.

26

38H1149

FITTING PLUG

6шт.

27

T107493

FLANGE FITTING

PORTS OF UNUSED VALVE SECTIONS

4шт.

28

T55758

O-RING

(SUB FOR P51212, THIS APPLICATION)

1шт.

29

T121832

SLEEVE

2шт.

30

38H1212

ADAPTER FITTING

3шт.
