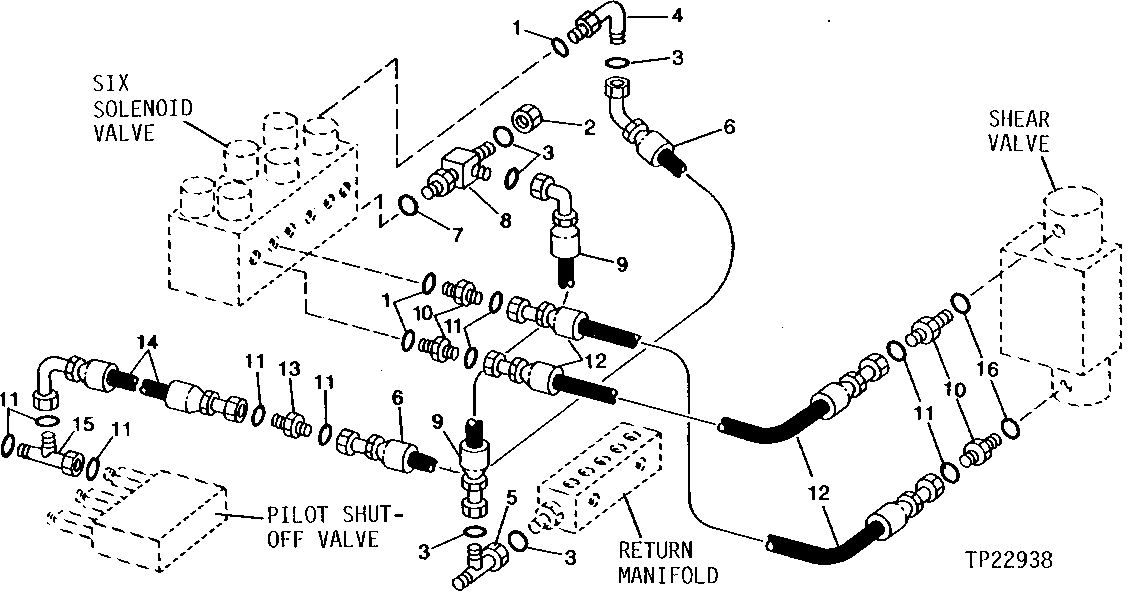

Запчасти John Deere 90D 48 - SHEAR VALVE-TO-SIX SOLENOID VALVE HOSES 3360 - BACKHOE AND EXCAVATOR 33

1

R26448

O-RING

(SUB FOR T70177)

3шт.

2

38H1416

FITTING

1шт.

3

T77857

O-RING

5шт.

4

38H1314

ELBOW FITTING

1шт.

5

38H1031

TEE FITTING

1шт.

6

AT79336

HYDRAULIC HOSE - FABRICATE

11/16" X 585 MM (23") X 13/16"

1шт.

7

R26375

O-RING

(SUB FOR R47150)

1шт.

8

38H1024

TEE FITTING

1шт.

9

AT81831

HYDRAULIC HOSE - FABRICATE

13/16" X 1 632 MM (64-1/4") X 13/16"

1шт.

AT112190

HYDRAULIC HOSE - FABRICATE

13/16" X 1 207 MM (47-1/2") X 13/16"

1шт.

10

38H1160

ADAPTER FITTING

4шт.

11

T77613

O-RING

11шт.

12

AT116603

HYDRAULIC HOSE

11/16" X 533 MM (21") X 11/16", (SUB FOR AT79569)

2шт.

13

38H1278

UNION FITTING

1шт.

14

AT81902

HYDRAULIC HOSE - FABRICATE

11/16" X 1 600 MM (63") X 11/16"

1шт.

15

38H1030

TEE FITTING

1шт.

16

R26448

O-RING

2шт.
