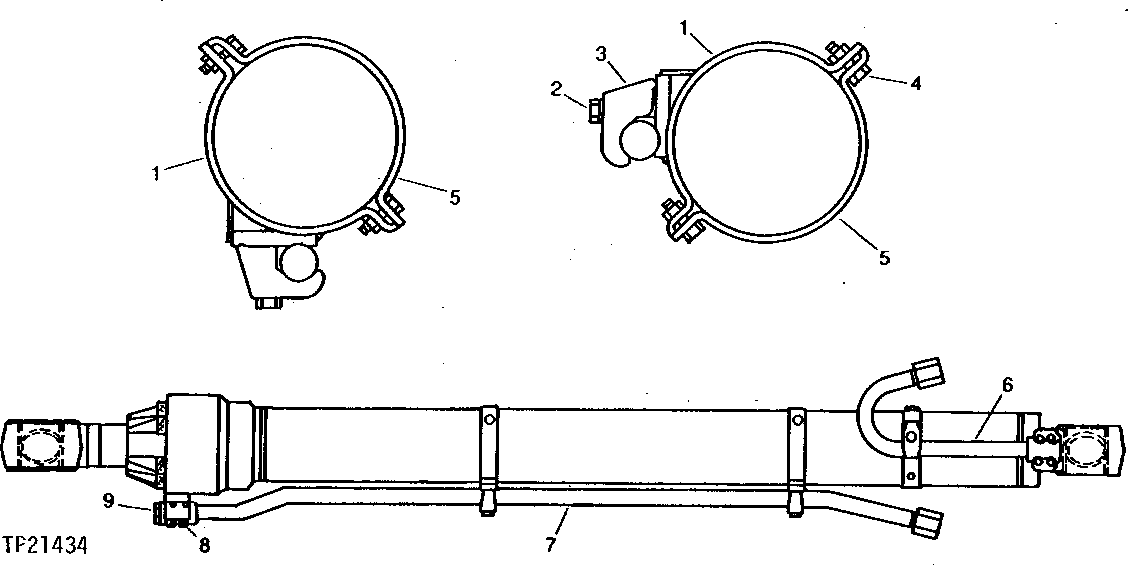

Запчасти John Deere 90D 45 - ARM CYLINDER WITH TUBES AND CLAMPS 3360 - BACKHOE AND EXCAVATOR 33

1

0309220

CLAMP

(SUB FOR AT114830)

3шт.

2

19M7363

CAP SCREW

M12 X 60, (SUB FOR 19M7273)

3шт.

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

3шт.

3

0309219

CLAMP

(SUB FOR T108064)

3шт.

4

19M7550

CAP SCREW

M10 X 35, (SUB FOR T108032)

6шт.

12M7066

LOCK WASHER

10 MM

6шт.

5

0309221

CLAMP

(SUB FOR T108065)

3шт.

6

4S00333

LINE

(SUB FOR AT114828)

1шт.

7

0312902

OIL LINE

(SUB FOR AT114829)

1шт.

8

T108035

SCREW

8шт.

9

AT264348

O-RING

(SUB FOR TH102788)

2шт.
