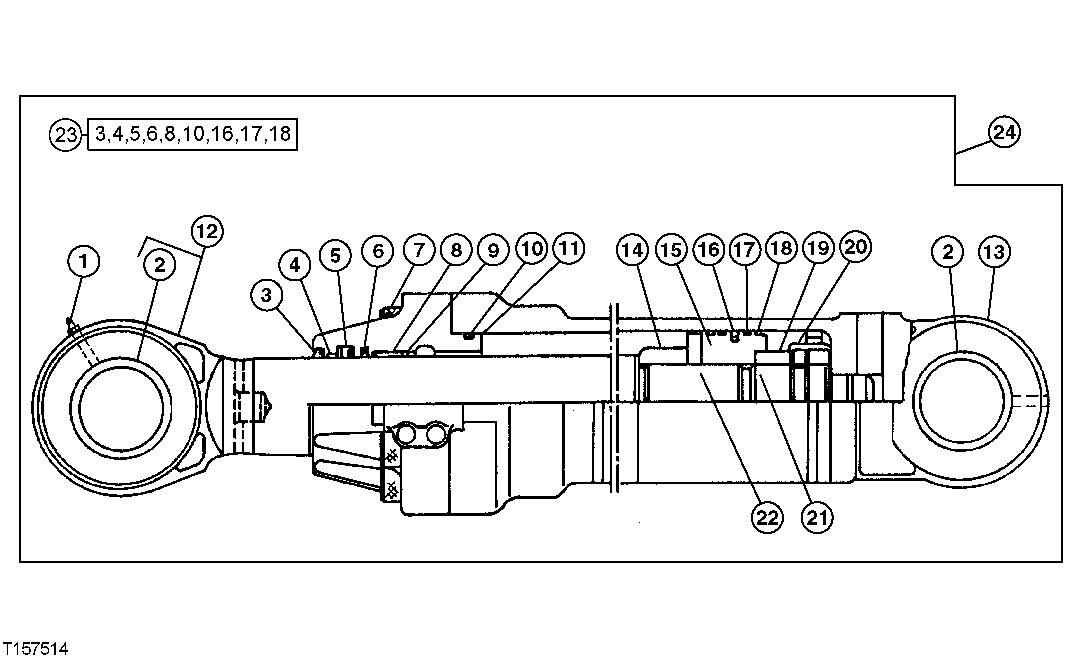

Запчасти John Deere 90D 44 - ARM CYLINDER 3360 - BACKHOE AND EXCAVATOR 33

1

TH100074

LUBRICATION FITTING

(SUB FOR CH11575)

1шт.

2

0309215

BUSHING

(SUB FOR T108062)

2шт.

3

AT136685

SEAL

(SUB FOR TH102790)

1шт.

4

T108052

RING

1шт.

5

H155311

SEAL

(SUB FOR TH102792 OR AT136687)

1шт.

AT264349

BACK-UP RING

(SUB FOR TH102791)

1шт.

6

T108051

RING

1шт.

7

0224117

SCREW

(SUB FOR T108061) (SUB FOR TH102773)

8шт.

8

T108050

WEAR RING

1шт.

9

0236905

SNAP RING

(SUB FOR TH102766)

1шт.

10

TH110021

O-RING

(SUB FOR T108053)

1шт.

T108054

BACK-UP RING

1шт.

11

0309203

HYDR. CYLINDER ROD GUIDE

(SUB FOR T108049)

1шт.

12

4228681

ROD

(SUB FOR AT114827 AND AT125545) (SUB FOR AT125501)

1шт.

13

4228682

HYDRAULIC CYLINDER BARREL

(SUB FOR AT114826) (SUB FOR AT125502)

1шт.

14

0323101

PISTON RING

(SUB FOR T108055)

1шт.

15

0309209

PISTON

(SUB FOR T108056)

1шт.

16

T108057

PISTON RING

1шт.

17

T108058

RING

2шт.

18

AT309611

RING

(SUB FOR T108059 OR 4S00160)

2шт.

19

0309213

NUT

(SUB FOR T108060)

1шт.

20

22M6684

SET SCREW

M12 X 12

1шт.

T13624

BALL

1шт.

21

0309216

SHIM

(SUB FOR T108063)

1шт.

22

0323102

SPACER

(SUB FOR T108177)

1шт.

23

AT194293

SEAL KIT

ROD AND BORE SEAL KIT, (SUB FOR AT114831)

1шт.

24

AT264189

HYDRAULIC CYLINDER

ARM, (SUB FOR AT114837)

1шт.
