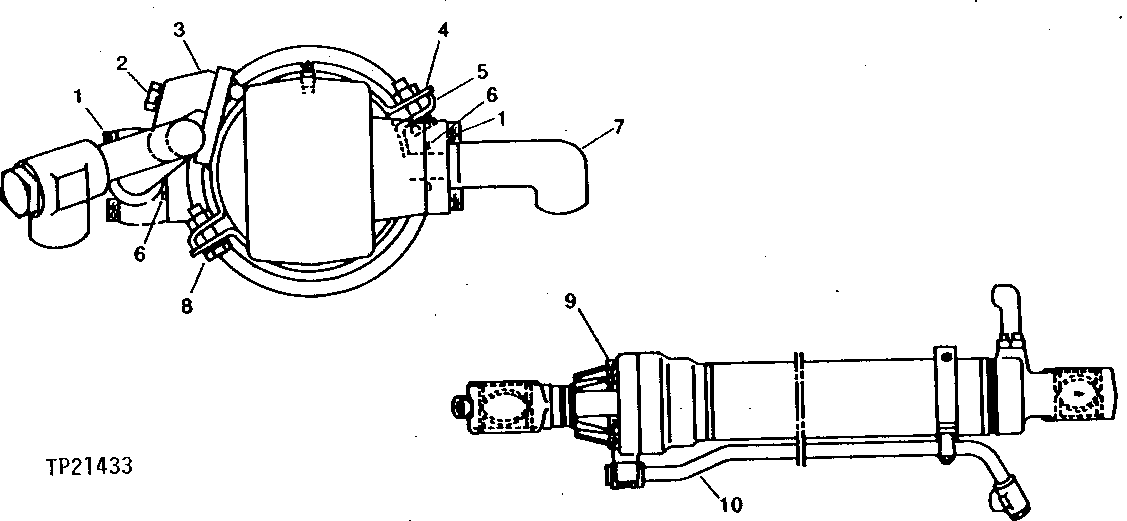

Запчасти John Deere 90D 43 - BUCKET CYLINDER WITH TUBES AND CLAMP 3360 - BACKHOE AND EXCAVATOR 33

1

19M8337

SCREW

M10 X 30

8шт.

2

19M7361

CAP SCREW

M12 X 50, (SUB FOR T108037)

1шт.

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

1шт.

3

T108036

CLAMP

SMALL CAST CLAMP HOLDING OIL LINE

1шт.

4

0309313

CLAMP

HALF CLAMP WITH WELD NUTS, (USE WITH T108048) (SUB FOR AT114849)

1шт.

5

0309314

CLAMP

(SUB FOR T108048) HALF CLAMP USED WITH AT114849

1шт.

6

AT264360

O-RING

(SUB FOR TH104930, 4506430)

2шт.

7

8086114

ELBOW FITTING

(SUB FOR AT114835)

1шт.

8

19M7550

CAP SCREW

(SUB FOR T108032)

2шт.

12M7066

LOCK WASHER

10 MM

2шт.

9

T108047

SCREW

(ROD GUIDE TO CYLINDER BARREL)

8шт.

10

4S00351

LINE

(SUB FOR AT114834)

1шт.
