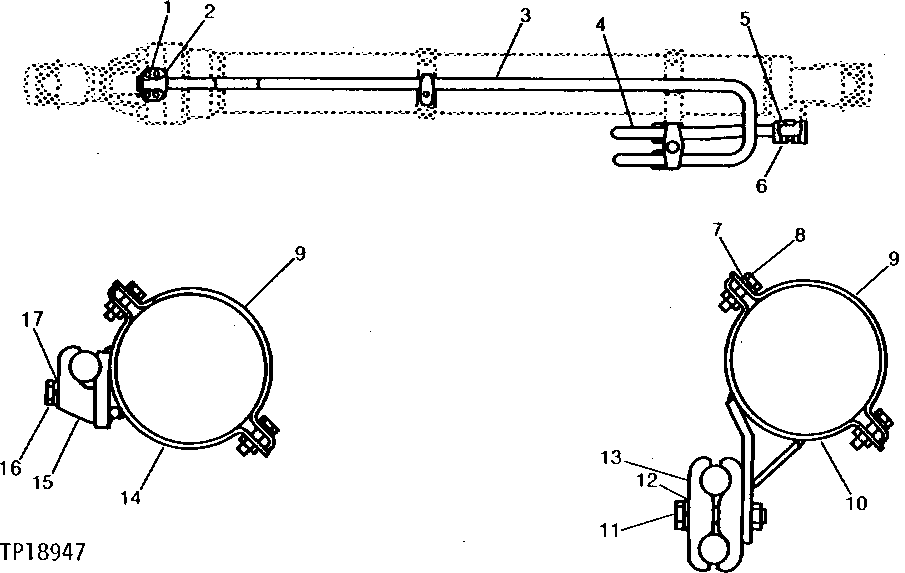

Запчасти John Deere 90D 41 - ARM AND BOOM CYLINDER TUBES AND CLAMPS 3360 - BACKHOE AND EXCAVATOR 33

1

19M8213

SCREW

M10 X 50, (SUB FOR T108034)

4шт.

2

AT264360

O-RING

(SUB FOR TH104930, 4506430)

1шт.

3

0309015

OIL LINE

(SUB FOR AT114819) RIGHT BOOM

1шт.

0309103

OIL LINE

(SUB FOR AT114825) LEFT BOOM (NOT ILLUSTRATED)

1шт.

0309015

OIL LINE

(SUB FOR AT114819) ARM

1шт.

4

0309014

OIL LINE

(SUB FOR AT114818) RIGHT BOOM

1шт.

0309102

OIL LINE

(SUB FOR AT114824) LEFT BOOM (NOT ILLUSTRATED)

1шт.

0309014

OIL LINE

(SUB FOR AT114818) ARM

1шт.

5

AT264348

O-RING

(SUB FOR TH102788)

1шт.

6

M800636

BOLT

(SUB FOR T108035)

4шт.

7

12M7066

LOCK WASHER

10 MM

4шт.

8

19M7550

CAP SCREW

(SUB FOR T108032)

4шт.

9

0309017

CLAMP

(SUB FOR T108031)

2шт.

10

0309016

CLAMP

(SUB FOR AT114820)

1шт.

11

12H317

LOCK WASHER

9/16"

1шт.

19H3481

CAP SCREW

3/8" X 7-1/2", FASTENS AT139333 TO BOOM CYLINDERS

2шт.

28H1601

BUSHING

0.546" X 0.840" X 4-1/8", FASTENS AT139333 TO BOOM CYLINDERS

2шт.

14H812

NUT

3/8", FASTENS AT139333 TO BOOM CYLINDERS

2шт.

12

19M8566

CAP SCREW

(SUB FOR 0259708) (SUB FOR T108033)

1шт.

13

0236915

HALF CLAMP

(SUB FOR TH102783)

2шт.

14

0309018

CLAMP

(SUB FOR AT114821)

1шт.

15

T108036

CLAMP

1шт.

16

19M7361

CAP SCREW

M12 X 50, (SUB FOR T108037)

1шт.

17

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

1шт.
