Запчасти John Deere 90D 35 - CONTROL VALVE TO CAB BULKHEAD HOSES 3360 - BACKHOE AND EXCAVATOR 33

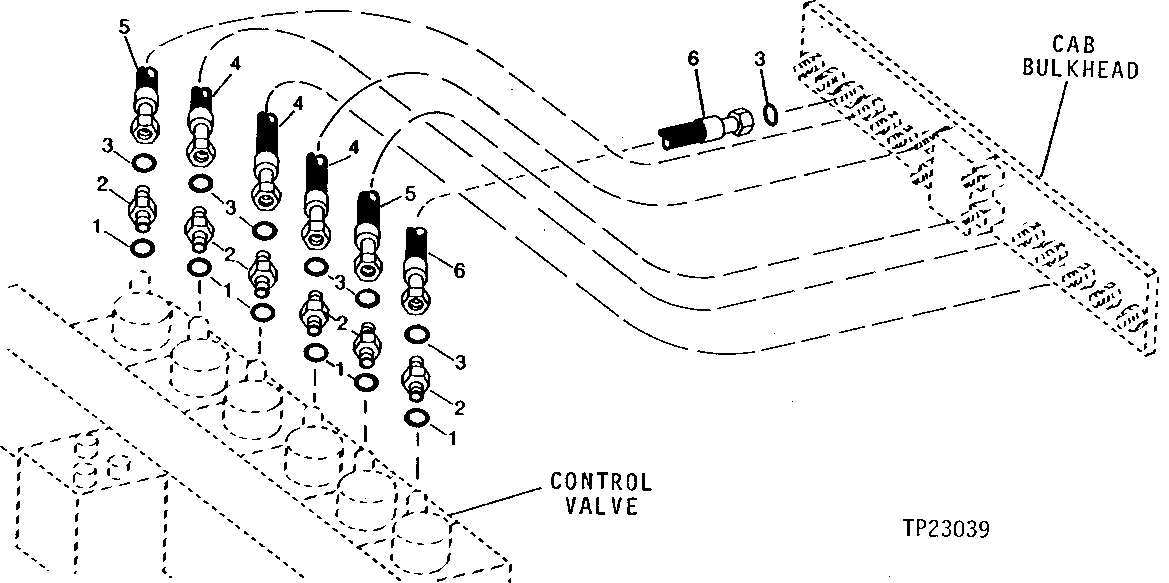

Схема запчастей John Deere 90D - 35 - CONTROL VALVE TO CAB BULKHEAD HOSES 3360 - BACKHOE AND EXCAVATOR 33

Артикул

Название

Примечание

Количество

1

R26448

O-RING

(SUB FOR T70177)

6шт.

2

38H1160

ADAPTER FITTING

6шт.

3

T77613

O-RING

12шт.

4

AT125429

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT112195)

3шт.

5

AT125428

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT112056)

2шт.

6

AT125427

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT112055)

1шт.

7

N189220

TIE BAND

(SUB FOR AA21510) (NOT ILLUSTRATED) BUNDLING STRAP

1шт.

8

AH80328

CLIP

FASTEN HOSES TO RESERVOIR (NOT ILLUSTRATED) (NO LONGER USED)

1шт.

19M7513

CAP SCREW

M8 X 30, (SUB FOR 19M7288) HOSE CLAMP TO RESERVOIR (NOT ILLUSTRATED) (NO LONGER USED)

1шт.

14M7166

LOCK NUT

M8, HOSE CLAMP TO RESERVOIR (NOT ILLUSTRATED) (NO LONGER USED)

1шт.

28H1513

WASHER

0.364" X 0.540" X 3/8", BETWEEN CLAMP AND RESERVOIR (NOT ILLUSTRATED) (NO LONGER USED)

1шт.

9

H77698

TIE BAND

(NOT ILLUSTRATED) BUNDLE SIX HOSES TOGETHER AT CONTROL VALVE

1шт.

Выбрано товаров: 12
