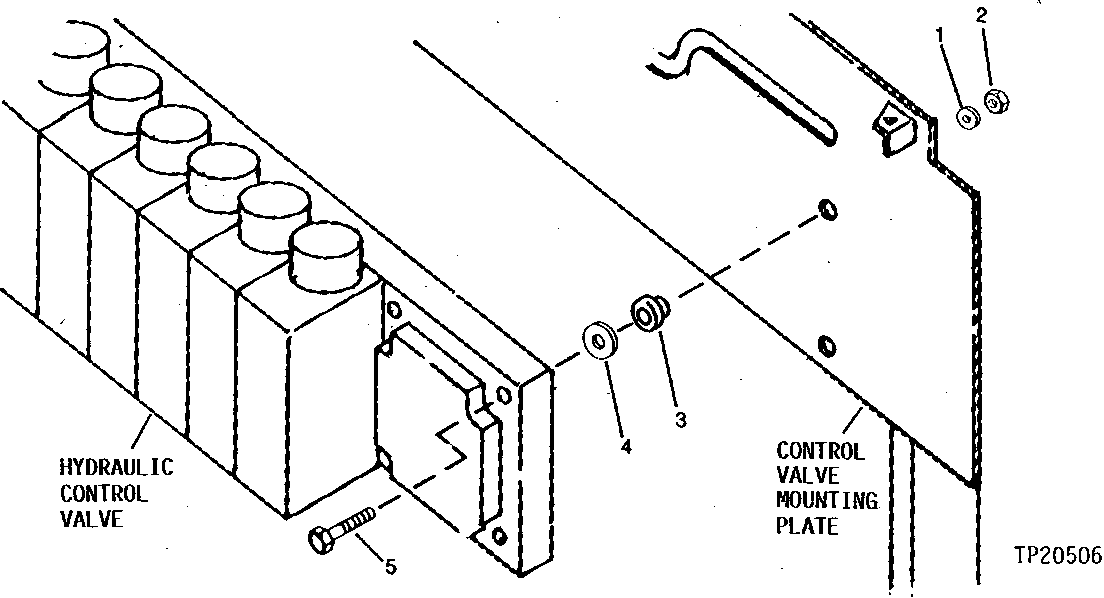

Запчасти John Deere 90D 30 - HYDRAULIC CONTROL VALVE MOUNTING HARDWARE 3360 - BACKHOE AND EXCAVATOR 33

1

WASHER

9/16" X 2" X 0.134" ( 24H1270 NO LONGER AVAILABLE)

4шт.

2

14M7319

LOCK NUT

M12

4шт.

3

AT72254

ISOLATOR

BOTH SIDES OF MOUNTING PLATE, (USE WITH T115065 AND T115066)

8шт.

T41770

ISOLATOR

(USE WITH T114756 AND T114757)

4шт.

T41770

ISOLATOR

4шт.

4

WASHER

9/16" X 2" X 0.134" ( 24H1270 NO LONGER AVAILABLE)

8шт.

5

19M7904

CAP SCREW

M12 X 160, LOWER HOLES

2шт.

19M7758

CAP SCREW

4шт.

19M7904

CAP SCREW

M12 X 160, UPPER HOLES

2шт.

19M7904

CAP SCREW

M12 X 160, UPPER HOLES

2шт.

19M7716

CAP SCREW

M12 X 140, LOWER HOLES

2шт.
