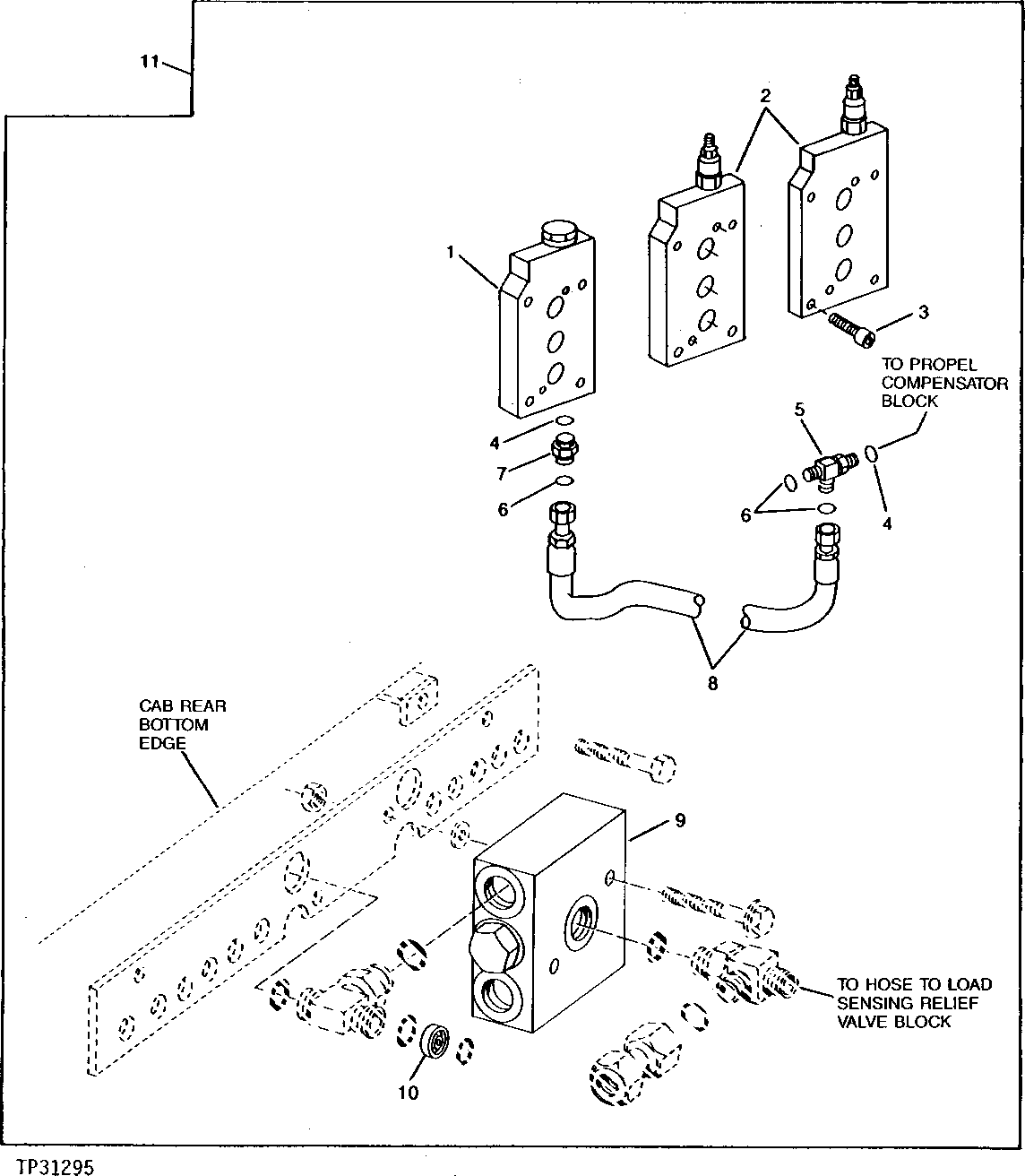

Запчасти John Deere 90D 24 - SWING AND PROPEL VALVE SPACER PLATES AND PROPEL CHECK VALVE BLOCK 3360 - BACKHOE AND EXCAVATOR 33

1

AT132829

PLATE

1шт.

AT149810

PLATE

1шт.

2

AT132828

PLATE

2шт.

3

19M8574

SCREW

M10 X 85

12шт.

4

T70177

O-RING

2шт.

5

38H1023

TEE FITTING

TO PROPEL COMPENSATOR BLOCK ON BACK OF MAIN CONTROL VALVE

1шт.

6

T77613

O-RING

3шт.

7

38H1160

ADAPTER FITTING

1шт.

8

AT116603

HYDRAULIC HOSE

11/16" X 533 MM (21") X 11/16", (SUB FOR AT105369, THIS APPLICATION) (SUB FOR AT79569)

1шт.

9

AT132744

FLOW CONTROL HYD. VALVE

1шт.

10

T125729

PLATE

4шт.

11

KIT

( AT135050 NO LONGER AVAILABLE, SUB COMPONENTS)

1шт.
