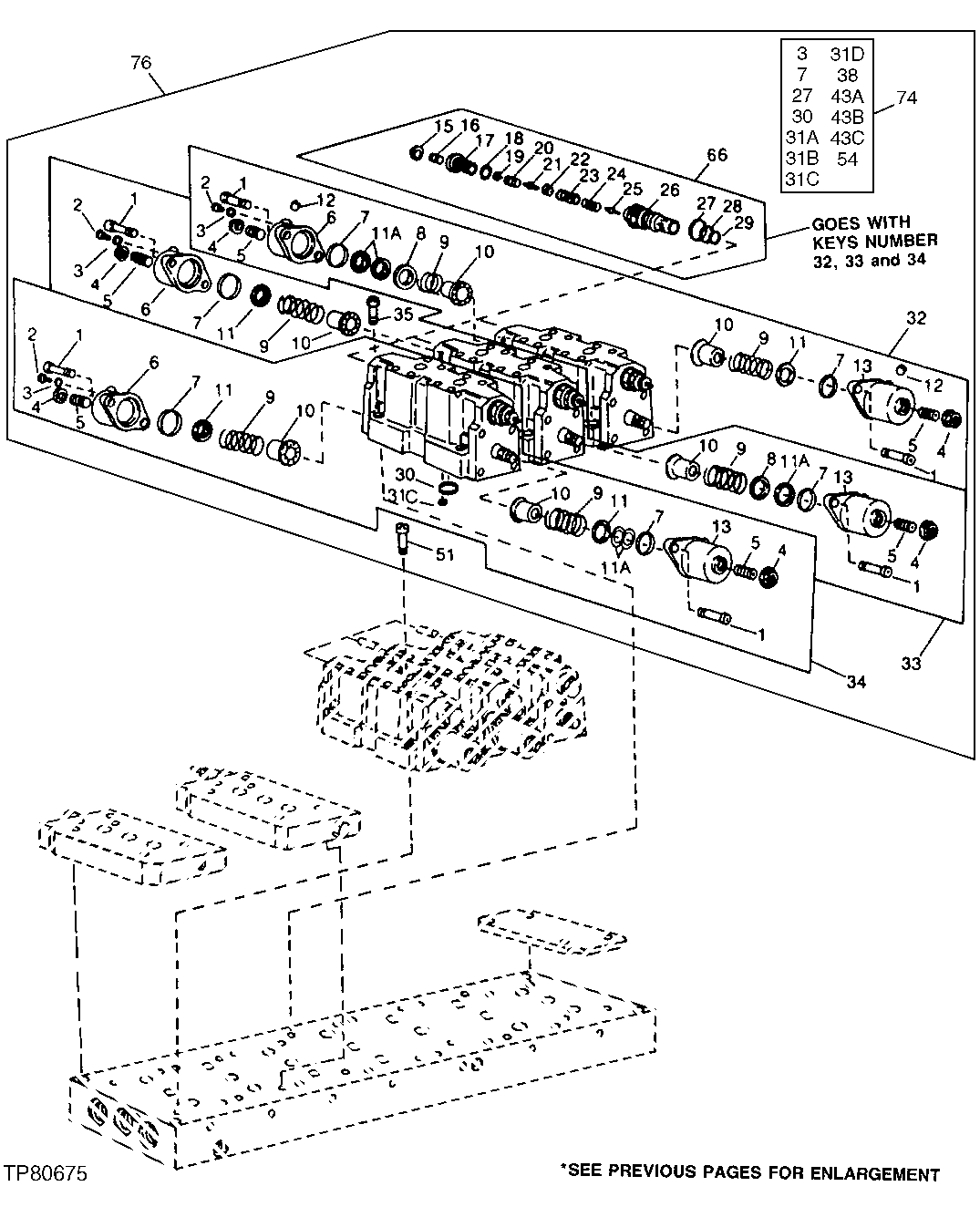

Запчасти John Deere 90D 18 - CONTROL VALVE AND MANIFOLD 3360 - BACKHOE AND EXCAVATOR 33

1

19M7660

SCREW

M8 X 20

24шт.

2

19M7302

CAP SCREW

M6 X 8

6шт.

3

RING

SEALING ( 51M4229 NO LONGER AVAILABLE)

6шт.

4

T107964

NUT

12шт.

5

T107822

SCREW

12шт.

6

T107978

CAP

3шт.

7

T107880

O-RING

6шт.

8

T107965

SHIM

35 X 52 X 2

2шт.

9

T107864

SPRING

6шт.

10

T107944

CAP

6шт.

11

T107966

SHIM

36 X 52 X 1

4шт.

11A

T115253

SHIM

36 X 52 X 0,5

6шт.

12

AT112757

CHECK VALVE

2шт.

13

T107979

CAP

3шт.

15

T107963

NUT

(USE WITH AT112743)

6шт.

T115240

NUT

(USE WITH AT125518)

6шт.

16

T107820

SCREW

(USE WITH AT112743)

6шт.

T115239

SCREW

(USE WITH AT125518)

6шт.

17

RELIEF VALVE

(SUB AT112743 OR AT125518)

6шт.

18

T16975

O-RING

6шт.

19

RELIEF VALVE

(SUB AT112743 OR AT125518)

6шт.

20

SPRING

(SUB AT112743 OR AT125518)

6шт.

21

RELIEF VALVE

(SUB AT112743 OR AT125518)

6шт.

22

RELIEF VALVE

(SUB AT112743 OR AT125518)

6шт.

23

SPRING

(SUB AT112743 OR AT125518)

6шт.

24

SPRING

(SUB AT112743 OR AT125518)

6шт.

25

RELIEF VALVE

(SUB AT112743 OR AT125518)

6шт.

26

RELIEF VALVE

(SUB AT112743 OR AT125518)

6шт.

27

T74549

O-RING

12шт.

28

T107873

BACK-UP RING

6шт.

29

T16975

O-RING

6шт.

30

T107888

O-RING

9шт.

31C

T107877

O-RING

6шт.

32

AT141635

FLOW CONTROL HYD. VALVE

BOOM (USE IF AVAILABLE) (USE WITH AT130065) (SUB FOR AT130028) (SUB FOR AT112758) (ALSO ORDER 19M8169) (SUB AT141635)

1шт.

AT141635

FLOW CONTROL HYD. VALVE

BOOM, (SUB FOR AT112758 OR AT130028)

1шт.

33

AT141636

FLOW CONTROL HYD. VALVE

ARM (USE IF AVAILABLE) (USE WITH AT130065) (SUB FOR AT130029) (SUB FOR AT112760) (ALSO ORDER 19M8169) (SUB AT141636)

1шт.

AT141636

FLOW CONTROL HYD. VALVE

ARM, (SUB FOR AT112760 OR AT130029)

1шт.

34

AT141637

FLOW CONTROL HYD. VALVE

BUCKET (USE IF AVAILABLE) (USE WITH AT130065) (SUB FOR AT112759) (SUB FOR AT130030) (ALSO ORDER 19M8169) (SUB AT141637)

1шт.

AT141637

FLOW CONTROL HYD. VALVE

BUCKET, (SUB FOR AT112759 OR AT130030)

1шт.

51

19M8574

SCREW

M10 X 85

12шт.

66

AT112743

PRESSURE RELIEF VALVE

(USE WITH AT130028, AT130029, AND AT130030)

2шт.

AT125518

PRESSURE RELIEF VALVE

(USE WITH AT141635, AT141636 AND AT141637)

2шт.

AT149990

PRESSURE RELIEF VALVE

(USE WITH AT141635, AT141636 AND AT141637)

2шт.

74

AT112750

SEAL KIT

1шт.

76

AT141634

VALVE

COMPLETE (USE IF AVAILABLE) (CONTAINS ADDITIONAL PARTS FOUND ON FOLLOWING PAGES) (SUB FOR AT130065) (SUB AT141634)

1шт.

AT141634

VALVE

COMPLETE (CONTAINS ADDITIONAL PARTS FOUND ON FOLLOWING PAGES) (SUB FOR AT130065)

1шт.
