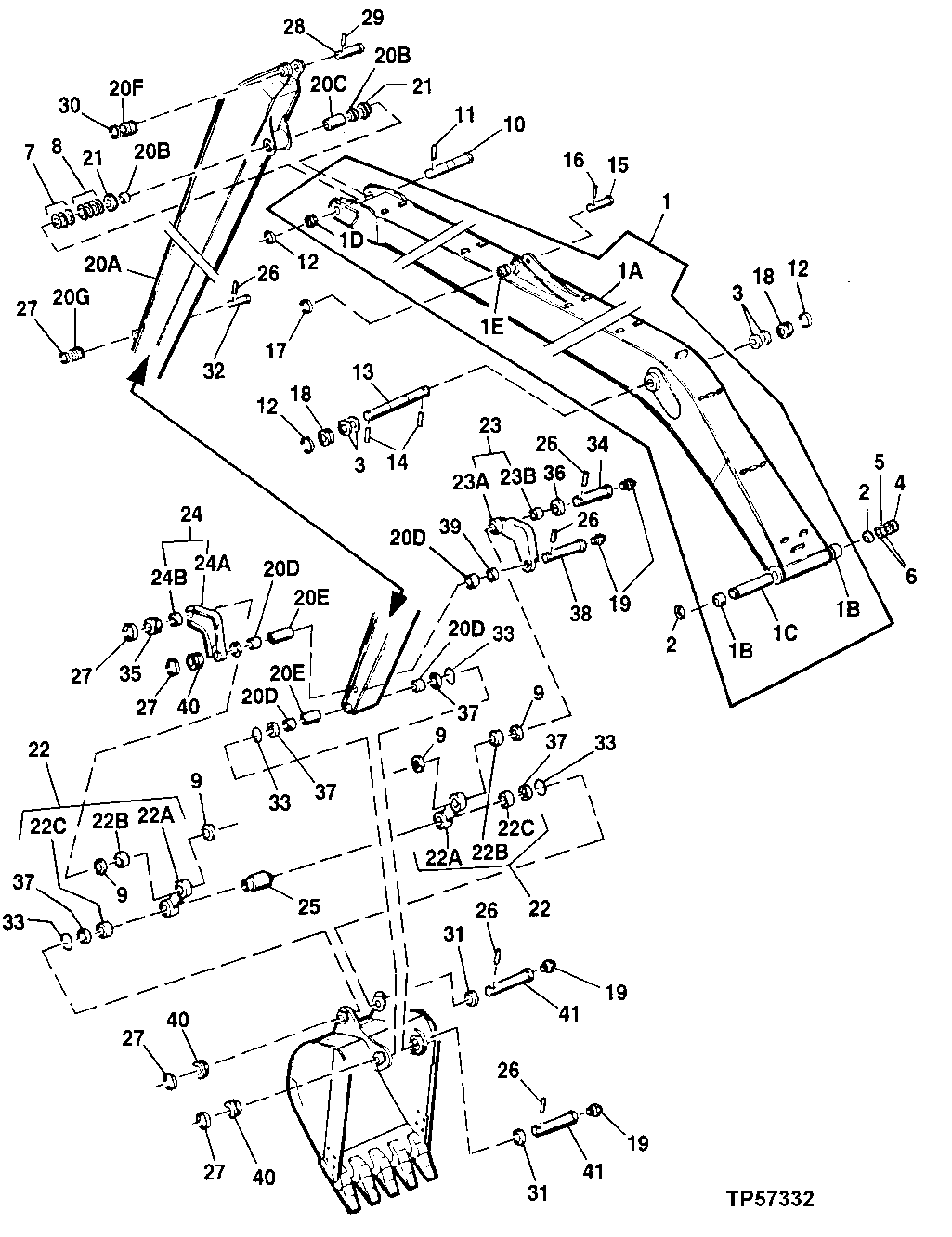

Запчасти John Deere 90D 6 - SUPER LONG FRONT ARM AND BOOM WITH MOUNTING PARTS AND BUCKET LINKAGE 3340 - BACKHOE AND EXCAVATOR 33

1

7018644

EXCAVATOR BOOM

(SUB FOR AT120746)

1шт.

1A

EXCAVATOR BOOM

(SUB AT120746 OR 7018644)

1шт.

1B

3040795

BUSHING

(SUB FOR T114771)

2шт.

1C

4140671

SPACER

(SUB FOR T104268)

1шт.

1D

T104269

BUSHING

1шт.

1E

T104251

BUSHING

1шт.

2

TH102445

SEAL

(I.D. 100 MM - O.D. 115 MM)

2шт.

3

TH102446

SEAL

(I.D. 80 MM - O.D. 95 MM)

4шт.

4

T104332

WASHER

1шт.

5

TH106308

WASHER

1шт.

6

TH106307

WASHER

2шт.

7

TH104297

WASHER

ARшт.

8

TH104296

WASHER

4шт.

9

4117954

SEAL

(SUB FOR TH106006)

4шт.

10

T115076

PIN

1шт.

11

4109669

PIN

(SUB FOR TH104292)

1шт.

12

4098712

RING

(SUB FOR TH103629)

3шт.

13

T144749

PIN

(SUB FOR T104336)

1шт.

14

4098713

PIN

(SUB FOR TH103627)

2шт.

15

3039285

PIN FASTENER

(SUB FOR T115077)

1шт.

16

4098717

PIN

(SUB FOR TH103630)

1шт.

17

4098716

RING

(SUB FOR TH103631)

1шт.

18

TH104509

BUSHING

2шт.

19

TH100074

LUBRICATION FITTING

4шт.

20A

7018643

ARM

(SUB FOR AT120748) (INCLUDES ITEMS 20B THROUGH 20G)

1шт.

20B

3030949

BUSHING

(SUB FOR T115078)

2шт.

20C

4084573

SPACER

(SUB FOR T115079)

1шт.

20D

T115080

BUSHING

4шт.

20E

4167458

BUSHING

(SUB FOR T115081)

2шт.

20F

T104251

BUSHING

1шт.

20G

4197031

BUSHING

(SUB FOR TH110546)

1шт.

21

TH102446

SEAL

(I.D. 80 MM - O.D. 95 MM)

2шт.

22

9058284

LINK

(SUB FOR AT120750)

2шт.

22A

LINK

(SUB AT120750)

1шт.

22B

4167593

BUSHING

(SUB FOR T115082)

1шт.

22C

T115080

BUSHING

1шт.

23

9022031

LINK

(SUB FOR AT120757)

1шт.

23A

LINK

( T115083 NOT AVAILABLE FOR SERVICE)

1шт.

23B

4057477

BUSHING

(SUB FOR T115084)

1шт.

24

9022030

LINK

(SUB FOR AT120758)

1шт.

24A

LINK

( T115083 NOT AVAILABLE FOR SERVICE)

1шт.

24B

4057477

BUSHING

(SUB FOR T115084)

1шт.

25

4167590

SPACER

(SUB FOR T115086)

1шт.

26

4065689

PIN FASTENER

(SUB FOR TH100625)

5шт.

27

4065688

RETAINER

(SUB FOR TH100624)

5шт.

28

T115087

PIN

1шт.

29

4098717

PIN

(SUB FOR TH103630)

1шт.

30

4098716

RING

(SUB FOR TH103631)

1шт.

31

P730M

WASHER

2шт.

32

T115088

PIN

1шт.

33

4066923

O-RING

(SUB FOR AT121233)

4шт.

34

T115089

PIN

1шт.

35

4197031

BUSHING

(SUB FOR TH110546)

1шт.

36

4057479

WASHER

(SUB FOR T115090)

1шт.

37

4082194

SEAL

(SUB FOR AT120759)

4шт.

38

T115091

PIN

1шт.

39

4082194

SEAL

(SUB FOR AT120759)

2шт.

40

T115092

BUSHING

3шт.

41

T115093

PIN

2шт.
