Запчасти John Deere 90D 2 - BOOM WITH BOOM, ARM AND CYLINDER MOUNTING PINS 3340 - BACKHOE AND EXCAVATOR 33

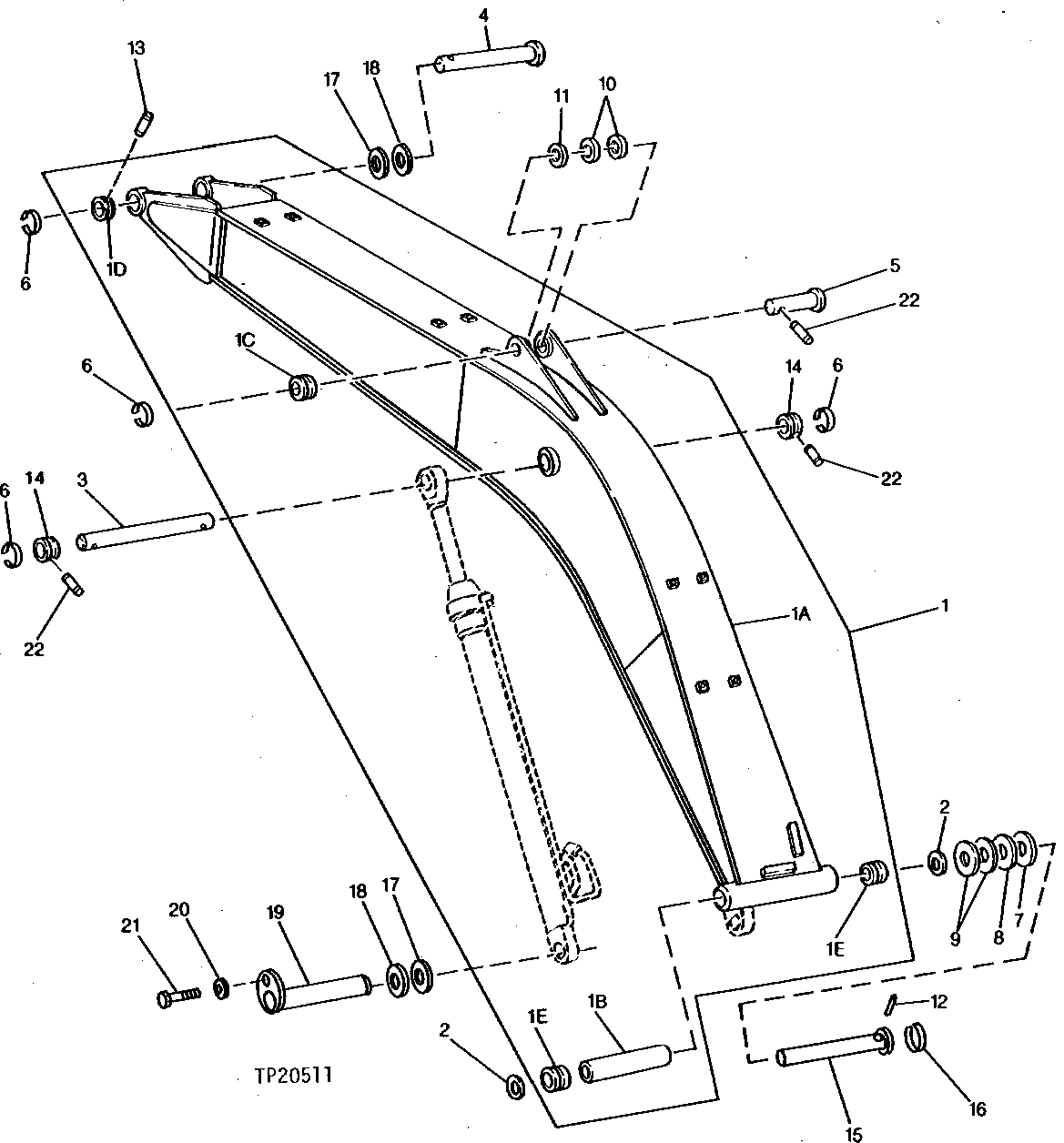

Схема запчастей John Deere 90D - 2 - BOOM WITH BOOM, ARM AND CYLINDER MOUNTING PINS 3340 - BACKHOE AND EXCAVATOR 33

Артикул

Название

Примечание

Количество

1

AT106951

EXCAVATOR BOOM

1шт.

1A

EXCAVATOR BOOM

(SUB AT106951)

1шт.

1B

4140671

SPACER

(SUB FOR T104268)

1шт.

1C

TH104509

BUSHING

1шт.

1D

T104269

BUSHING

1шт.

1E

3040795

BUSHING

(SUB FOR T104267, THIS APPLICATION) (SUB FOR T114771)

2шт.

2

TH102445

SEAL

(I.D. 100 MM - O.D. 115 MM)

2шт.

3

T144749

PIN

(SUB FOR T104336)

1шт.

4

T144751

PIN

(SUB FOR T104330)

1шт.

5

T144752

PIN

(SUB FOR T104323)

1шт.

6

4098712

RING

(SUB FOR TH103629)

4шт.

7

T104332

WASHER

1шт.

8

TH106308

WASHER

1шт.

9

TH106307

WASHER

2шт.

10

TH104297

WASHER

ARшт.

11

TH104296

WASHER

2шт.

12

4140825

PIN FASTENER

(SUB FOR T104334)

1шт.

13

4109669

PIN

(SUB FOR TH104292)

1шт.

14

TH104509

BUSHING

2шт.

15

T144747

PIN

(SUB FOR T104333)

1шт.

16

4140823

RING

(SUB FOR T104335)

1шт.

17

TH104296

WASHER

6шт.

18

TH104297

WASHER

6шт.

19

AT169526

PIN

(SUB FOR AT152179)

2шт.

20

R20135

WASHER

2шт.

21

19M8029

CAP SCREW

M16 X 30, (SUB FOR 19M7608)

2шт.

22

4098713

PIN

(SUB FOR TH103627)

3шт.

Выбрано товаров: 27
