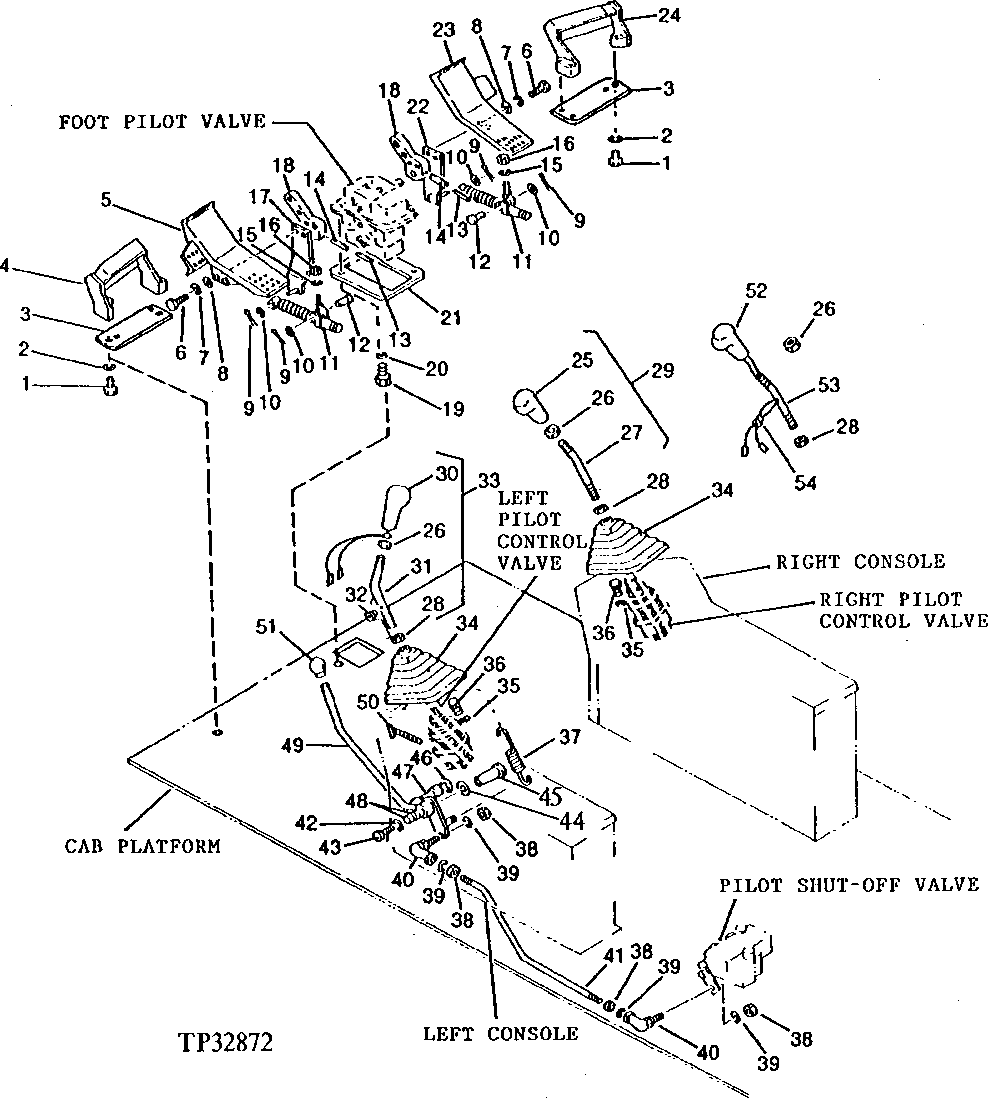

Запчасти John Deere 90D 2 - CONTROL LEVERS AND PEDALS 3315 - BACKHOE AND EXCAVATOR 33

1

19M7662

CAP SCREW

M10 X 30

6шт.

2

12M7066

LOCK WASHER

10 MM

6шт.

3

4191971

COVER

(SUB FOR T114446) (SUB FOR TH108381)

2шт.

4

2024629

FOOTREST

(SUB FOR TH108380) LEFT

1шт.

5

1024442

PEDAL

(SUB FOR TH108375) (ALSO ORDER (2) 19M7358) (SUB FOR AT128309) LEFT

1шт.

1024442

PEDAL

(SUB FOR AT128309)

1шт.

6

19M7662

CAP SCREW

M10 X 30

4шт.

19M7358

CAP SCREW

M10 X 40

4шт.

7

12M7066

LOCK WASHER

10 MM

4шт.

8

24M7028

WASHER

10.500 X 20 X 2 MM

4шт.

9

H132922

COTTER PIN

(SUB FOR L1587C)

4шт.

10

24M7028

WASHER

10.500 X 20 X 2 MM

4шт.

11

4204959

TORSIONAL DAMPER

(SUB FOR TH108384)

2шт.

12

4044928

PIN

(SUB FOR TH108385)

2шт.

13

34M7124

SPRING PIN

8 X 30 MM, (SUB FOR 34M7065)

2шт.

14

34M7062

SPRING PIN

5 X 32 MM

2шт.

15

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

16

14M7273

NUT

M8

2шт.

17

9728053

BRACKET

(SUB FOR TH108387) LEFT

1шт.

18

4204996

BRACKET

(SUB FOR TH108374)

2шт.

19

19M7662

CAP SCREW

M10 X 30

2шт.

19M7358

CAP SCREW

2шт.

20

12M7066

LOCK WASHER

10 MM

2шт.

21

4191969

PLATE

(SUB FOR TH108382)

1шт.

22

9728065

BRACKET

(SUB FOR TH108386) RIGHT

1шт.

23

1024440

PEDAL

(SUB FOR TH108376 OR AT128310) (ALSO ORDER (2) 19M7358) (SUB FOR 1012155) RIGHT

1шт.

24

2024630

FOOTREST

(SUB FOR TH108379) RIGHT

1шт.

25

4196693

GRIP

(SUB FOR TH108367) RIGHT

1шт.

26

14M7357

NUT

M12, (SUB FOR TH108372 OR 4201107)

2шт.

27

8038794

LEVER

(SUB FOR TH108369) (SUB FOR TH108370) RIGHT

1шт.

28

14M7141

NUT

M14

2шт.

29

LEVER

RIGHT (NO LONGER AVAILABLE)

1шт.

30

4196694

GRIP

(SUB FOR TH108368) HORN SWITCH

1шт.

31

8040203

LEVER

(SUB FOR AT115010) LEFT

1шт.

32

487081

GROMMET

(SUB FOR TH108081)

1шт.

33

AT114966

LEVER

LEFT

1шт.

34

2024493

BOOT

(SUB FOR TH108373)

2шт.

35

24H1821

WASHER

9/32" X 47/64" X 1/16"

8шт.

36

19M7923

CAP SCREW

M6 X 12

8шт.

37

4189184

EXTENSION SPRING

(SUB FOR TH108392)

1шт.

38

14M7273

NUT

M8

4шт.

39

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

4шт.

40

T110021

BALL JOINT SOCKET

2шт.

41

4205617

ROD

(SUB FOR TH108396)

1шт.

42

24M7028

WASHER

10.500 X 20 X 2 MM

1шт.

43

19M8451

CAP SCREW

1шт.

44

T497T

WASHER

16.280 X 27 X 2.670 MM, (SUB FOR 24M7053, THIS APPLICATION)

1шт.

45

4191973

PIN

(SUB FOR TH108391)

1шт.

46

40M7088

SNAP RING

1шт.

47

4203482

BUSHING

(SUB FOR T114443) (SUB FOR TH108395)

1шт.

48

TH100248

NEEDLE BEARING

2шт.

49

8039825

LEVER

(SUB FOR AT114995)

1шт.

50

H77698

TIE BAND

(SUB FOR T44946)

1шт.

51

4143169

KNOB

(SUB FOR TH100268)

1шт.

52

4240686

GRIP

(SUB FOR AT126858) R.H. MOTION ALARM SWITCH BUILT-IN

1шт.

53

8040203

LEVER

(SUB FOR AT115010)

1шт.

54

487081

GROMMET

(SUB FOR TH108081)

1шт.
