Запчасти John Deere 90D 47A - GENERAL PURPOSE BUCKET TOOTH ASSEMBLY 3302 - BACKHOE AND EXCAVATOR 33

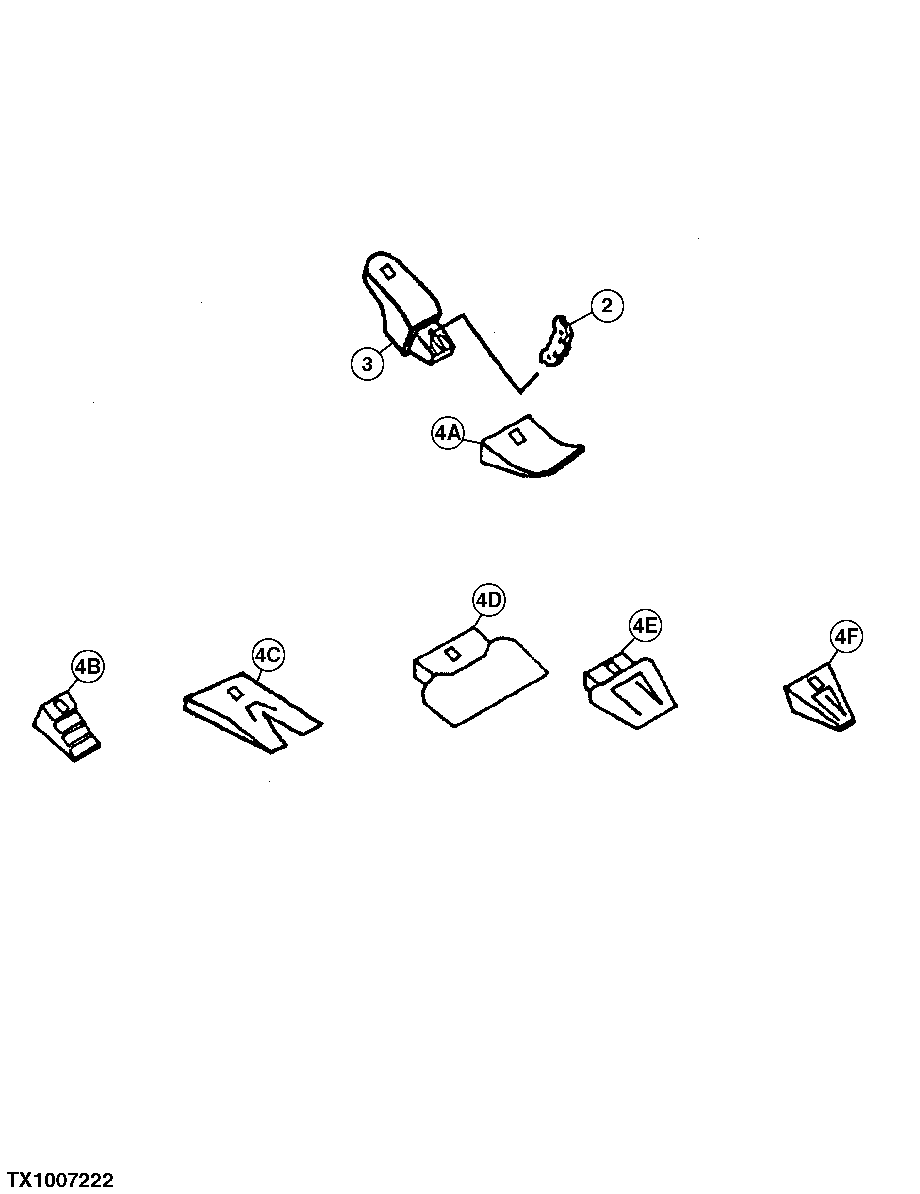

Схема запчастей John Deere 90D - 47A - GENERAL PURPOSE BUCKET TOOTH ASSEMBLY 3302 - BACKHOE AND EXCAVATOR 33

Артикул

Название

Примечание

Количество

4A

TF310

TOOTH

(ALSO ORDER TP160L) (FANGGS)

1шт.

TF330

TOOTH

(FANGGS)

1шт.

TF290

TOOTH

(FANGGS)

1шт.

4B

TX310

TOOTH

(ALSO ORDER TP160L) (STANDARD)

1шт.

TX330

TOOTH

(STANDARD)

1шт.

TX290

TOOTH

(STANDARD)

1шт.

4C

TX310WT

TOOTH

(ALSO ORDER TP160L) (TWIN TIGER)

1шт.

TX330WT

TOOTH

(TWIN TIGER)

1шт.

TX290WT

TOOTH

(TWIN TIGER)

1шт.

4D

TX310F

TOOTH

(ALSO ORDER TP160L)

1шт.

4E

TX310AP

TOOTH

(ALSO ORDER TP160L)

1шт.

4F

TT310

TOOTH

(ALSO ORDER TP160L) (TIGER)

1шт.

TT330

TOOTH

(TIGER)

1шт.

TT290

TOOTH

(TIGER)

1шт.

4G

EX27SYL

TOOTH

(ESCO STANDARD) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

4H

EX27TVIP

TOOTH

(ESCO TWIN TIGER) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

4I

EX27S6F

TOOTH

(ESCO FLARE) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

4J

EX27VIP

TOOTH

(ESCO TIGER) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

4K

TF1U3352D

TOOTH

(CATERPILLAR REPLACEMENT FANGGS) (NOT ILLUSTRATED)

1шт.

4L

T1U3352

TOOTH

(CATERPILLAR REPLACEMENT STANDARD) (NOT ILLUSTRATED)

1шт.

4M

TX1U3352WT

TOOTH

(CATERPILLAR REPLACEMENT TWIN TIGER) (NOT ILLUSTRATED)

1шт.

4N

TT1U3352

TOOTH

(CATERPILLAR REPLACEMENT TIGER) (NOT ILLUSTRATED)

1шт.

5

T3G9549

RETAINER

(CATERPILLAR REPLACEMENT) (NOT ILLUSTRATED)

1шт.

6

EX27VPL

PLUG

(NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

Выбрано товаров: 24
