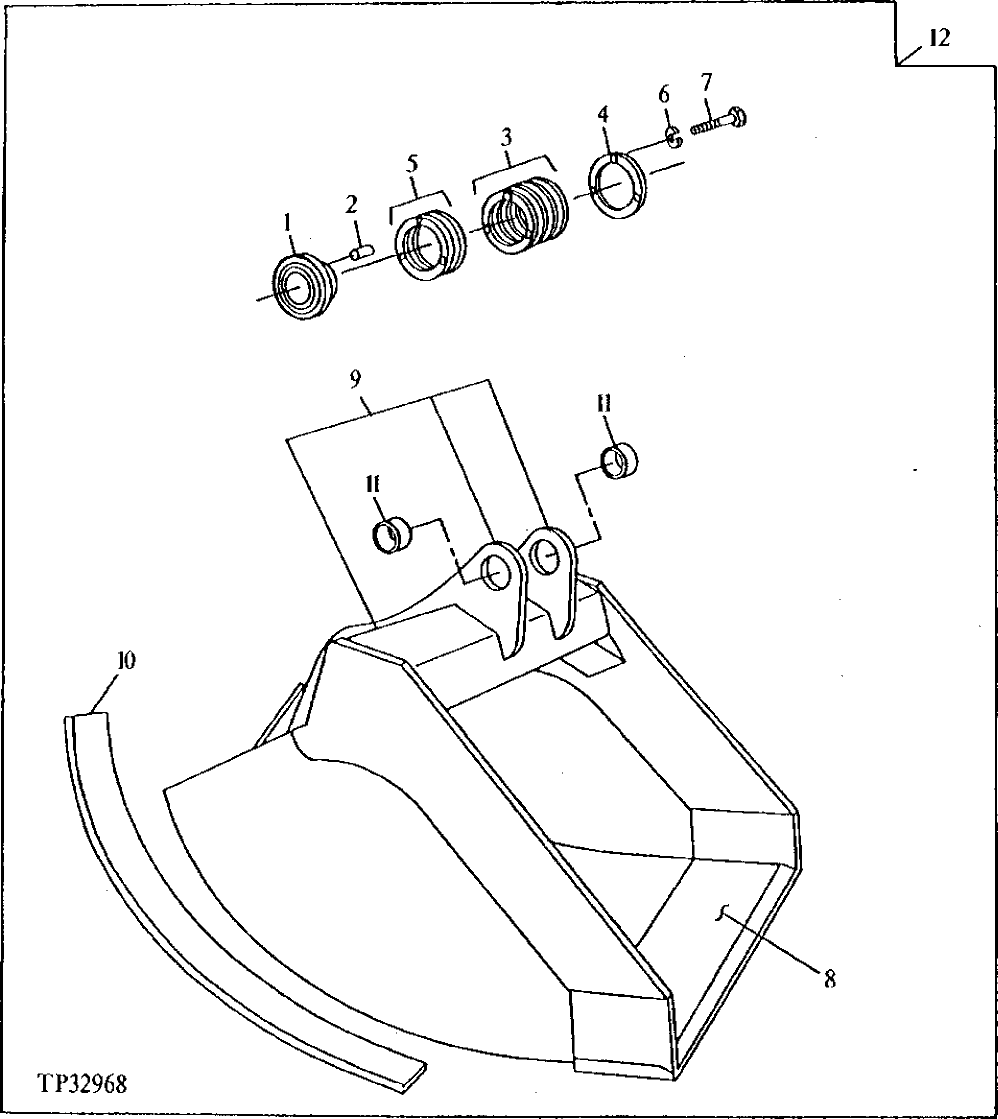

Запчасти John Deere 90D 34 - DITCHING BUCKET 3302 - BACKHOE AND EXCAVATOR 33

1

AT131083

SELF-ALIGNING BUSHING

(1" HEAD THICKNESS)

1шт.

2

R48685

DOWEL PIN

1шт.

3

TH104512

WASHER

9шт.

4

TH104514

SPACER

1шт.

5

TH104513

SHIM

1шт.

6

12H294

LOCK WASHER

5/8"

3шт.

7

19H2706

CAP SCREW

5/8" X 2"

3шт.

8

AT131089

CUTTING EDGE

(USE WITH AT161005 BUCKET)

1шт.

AT131088

CUTTING EDGE

(USE WITH AT160685 BUCKET)

1шт.

9

C607480

PIVOT

(A) (BUCKET EAR BLANK ASSEMBLY)

1шт.

10

300204

BAR

(A) (WEAR STRIP)

5шт.

11

TH104509

BUSHING

(USE WITH AT161005 BUCKET)

2шт.

TH108649

BUSHING

(USE WITH AT160685 BUCKET)

2шт.

12

EXCAVATOR BUCKET

( AT131117 NLA) (72 INCH - 1.06 CUBIC YARD)

1шт.

EXCAVATOR BUCKET

( AT161005 NLA) 60" WIDE (.90 CU. YD.) (SUB AT332702)

1шт.
