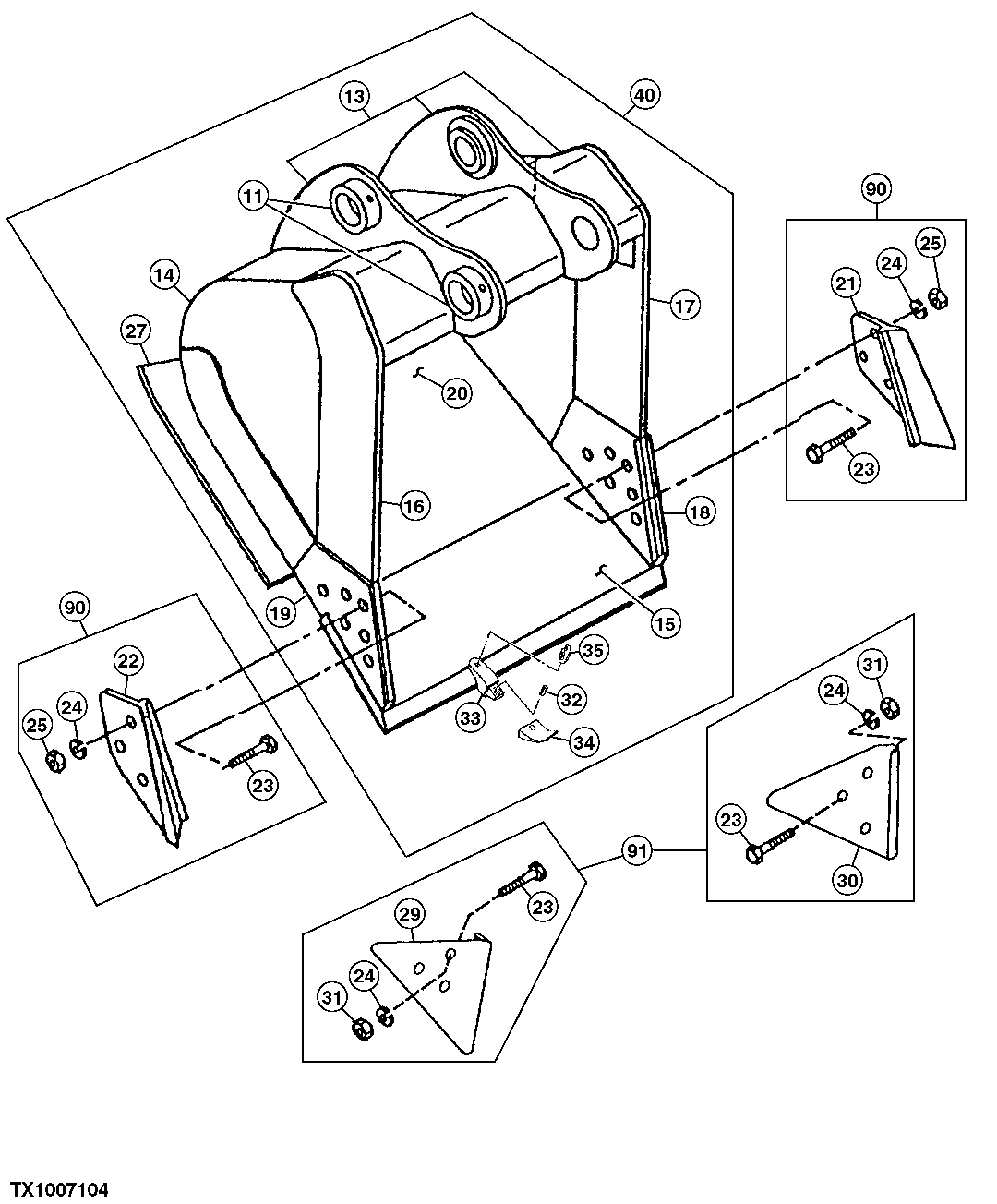

Запчасти John Deere 90D 33A - BUCKET SEVERE DUTY PLATE LIP 3302 - BACKHOE AND EXCAVATOR 33

11

TH104509

BUSHING

(LOCKING COLLAR)

2шт.

13

C607480

PIVOT

(A) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

305511

PLATE

(A) (RIGHT AND LEFT SIDE)

2шт.

15

CUTTING EDGE

(CUT TO LENGTH FROM AT131097)

1шт.

16

305512

VERTICAL CUTTER

(A) (UPPER RIGHT SIDE)

1шт.

17

305513

VERTICAL CUTTER

(A) (UPPER LEFT SIDE)

1шт.

18

305531

VERTICAL CUTTER

(A) (LEFT INSERT)

1шт.

19

305530

VERTICAL CUTTER

(A) (RIGHT INSERT)

1шт.

20

605990

MOLDBOARD

(A) (30 INCH)

1шт.

605991

MOLDBOARD

(A) (36 INCH)

1шт.

21

CUTTING EDGE

(SUB AT131085)

1шт.

22

CUTTING EDGE

(SUB AT131085)

1шт.

23

09H1771

BOLT

7/8" X 3"

6шт.

24

12H245

LOCK WASHER

7/8"

6шт.

25

14H1077

NUT

7/8"

6шт.

27

605995

BAR

(A) (USE WITH 30 INCH BUCKET)

1шт.

605996

BAR

(A) (USE WITH 36 INCH BUCKET)

1шт.

29

SHROUD

(WEAR SHROUD) (SUB AT167876)

1шт.

30

SHROUD

(WEAR SHROUD) (SUB AT167876)

1шт.

31

14H1044

NUT

7/8"

1шт.

32

TP400HD

PIN

ARшт.

33

T130X400

BUCKET TOOTH ADAPTER

ARшт.

34

TF400

TOOTH

ARшт.

35

TK130

SHAFT KEY

ARшт.

90

AT131085

END BIT

(SIDE CUTTER KIT)

1шт.

91

AT167876

KIT

(EDGE PROTECTOR)

1шт.
