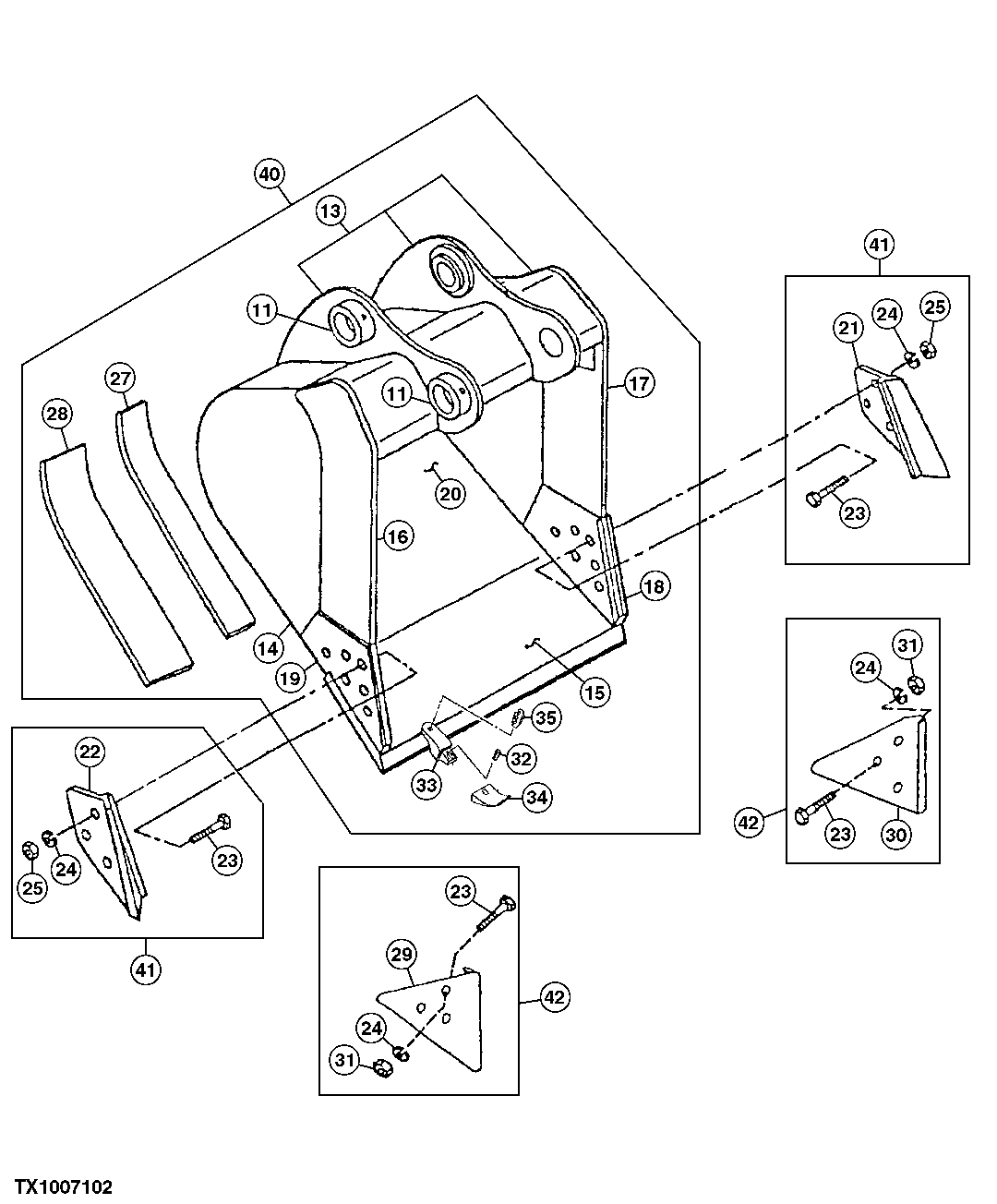

Запчасти John Deere 90D 29A - HEAVY DUTY HIGH CAPACITY BUCKET 3302 - BACKHOE AND EXCAVATOR 33

11

TH104509

BUSHING

(LOCKING COLLAR)

2шт.

13

C607480

PIVOT

(A) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

300167

PLATE

(A) (RIGHT AND LEFT SIDE)

2шт.

15

CUTTING EDGE

(CUT TO LENGTH FROM AT131090 BULK MATERIAL)

1шт.

C252567

CUTTING EDGE

(A) (CUT TO LENGTH) USE WITH 36 INCH BUCKET

1шт.

16

300159

VERTICAL CUTTER

(A) (UPPER RIGHT SIDE)

1шт.

17

300160

VERTICAL CUTTER

(A) (UPPER LEFT SIDE)

1шт.

18

300158

VERTICAL CUTTER

(A) (LEFT INSERT)

1шт.

19

300157

VERTICAL CUTTER

(A) (RIGHT INSERT)

1шт.

20

600118

MOLDBOARD

(A) (24 INCH)

1шт.

600119

MOLDBOARD

(A) (30 INCH)

1шт.

600120

MOLDBOARD

(A) (36 INCH)

1шт.

600121

MOLDBOARD

(A) (42 INCH)

1шт.

600122

MOLDBOARD

(A) (48 INCH)

1шт.

21

CUTTING EDGE

(SUB AT131085) (LEFT)

1шт.

22

CUTTING EDGE

(SUB AT131085) (RIGHT)

1шт.

23

09H1771

BOLT

7/8" X 3"

6шт.

24

12H245

LOCK WASHER

7/8"

6шт.

25

14H1077

NUT

7/8"

6шт.

27

300156

BAR

(A) (INNER WEAR)

1шт.

28

306452

BAR

(A) (OUTER WEAR)

2шт.

29

SHROUD

(WEAR SHROUD) (SUB AT167876)

1шт.

30

SHROUD

(WEAR SHROUD) (SUB AT167876)

1шт.

31

14H1044

NUT

22.225 MM (7/8")

6шт.

32

TK290

PIN

ARшт.

33

T158X290

BUCKET TOOTH ADAPTER

ARшт.

34

TF290

TOOTH

ARшт.

35

TK130

SHAFT KEY

ARшт.

41

AT131085

KIT

(CUTTING EDGE) WHOLEGOODS

1шт.

42

AT167876

KIT

(WEAR) WHOLEGOODS

1шт.
