Запчасти John Deere 90D 28 - HEAVY DUTY HIGH CAPACITY BUCKET 3302 - BACKHOE AND EXCAVATOR 33

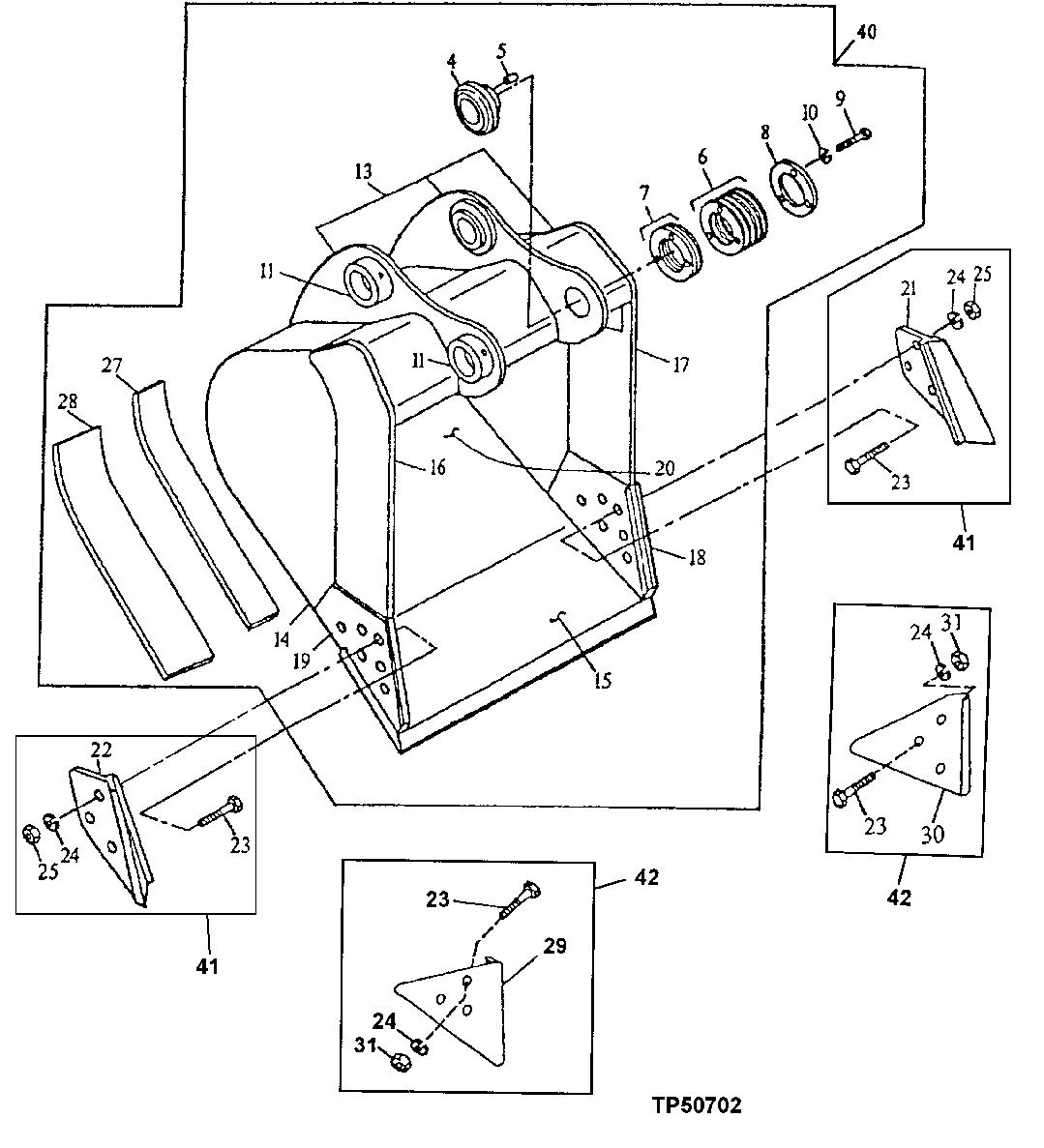

Схема запчастей John Deere 90D - 28 - HEAVY DUTY HIGH CAPACITY BUCKET 3302 - BACKHOE AND EXCAVATOR 33

Артикул

Название

Примечание

Количество

4

AT131083

SELF-ALIGNING BUSHING

(1 INCH HEAD THICKNESS)

1шт.

5

R48685

DOWEL PIN

1шт.

6

TH104512

WASHER

9шт.

7

TH104513

SHIM

1шт.

8

TH104514

SPACER

1шт.

9

19H2706

CAP SCREW

5/8" X 2"

3шт.

10

12H294

LOCK WASHER

5/8"

3шт.

11

TH104509

BUSHING

(LOCKING COLLAR)

2шт.

13

C607480

PIVOT

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

300167

PLATE

(F) (RIGHT AND LEFT SIDE)

2шт.

15

CUTTING EDGE

(CUT TO LENGTH FROM AT131090 BULK MATERIAL)

1шт.

16

300159

VERTICAL CUTTER

(F) (UPPER RIGHT SIDE)

1шт.

17

300160

VERTICAL CUTTER

(F) (UPPER LEFT SIDE)

1шт.

18

300158

VERTICAL CUTTER

(F) (LEFT INSERT)

1шт.

19

300157

VERTICAL CUTTER

(F) (RIGHT INSERT)

1шт.

20

600118

MOLDBOARD

(F) (24 INCH)

1шт.

600119

MOLDBOARD

(F) (30 INCH)

1шт.

600120

MOLDBOARD

(F) (36 INCH)

1шт.

600121

MOLDBOARD

(F) (42 INCH)

1шт.

600122

MOLDBOARD

(F) (48 INCH)

1шт.

21

CUTTING EDGE

(SUB AT131085) (LEFT)

1шт.

22

CUTTING EDGE

(SUB AT131085) (RIGHT)

1шт.

23

09H1771

BOLT

7/8" X 3"

6шт.

24

12H245

LOCK WASHER

7/8"

6шт.

25

14H1077

NUT

7/8"

6шт.

27

300156

BAR

(F) (INNER WEAR)

1шт.

28

306452

BAR

(F) (OUTER WEAR)

2шт.

29

SHROUD

(WEAR SHROUD) (SUB AT167876)

1шт.

30

SHROUD

(WEAR SHROUD) (SUB AT167876)

1шт.

31

14H1044

NUT

22.225 MM (7/8")

6шт.

40

EXCAVATOR BUCKET

(SUB AT332693) ( AT163616, AT131108, AT131209 NLA)

1шт.

EXCAVATOR BUCKET

(SUB AT332695) ( AT163617, AT131109, AT131210 NLA)

1шт.

EXCAVATOR BUCKET

(SUB AT332696) ( AT163618, AT131110, AT131211 NLA)

1шт.

EXCAVATOR BUCKET

(SUB AT332697) ( AT163620, AT131111, AT131212 NLA)

1шт.

Выбрано товаров: 34
