Запчасти John Deere 90D 26 - HEAVY DUTY BUCKET 3302 - BACKHOE AND EXCAVATOR 33

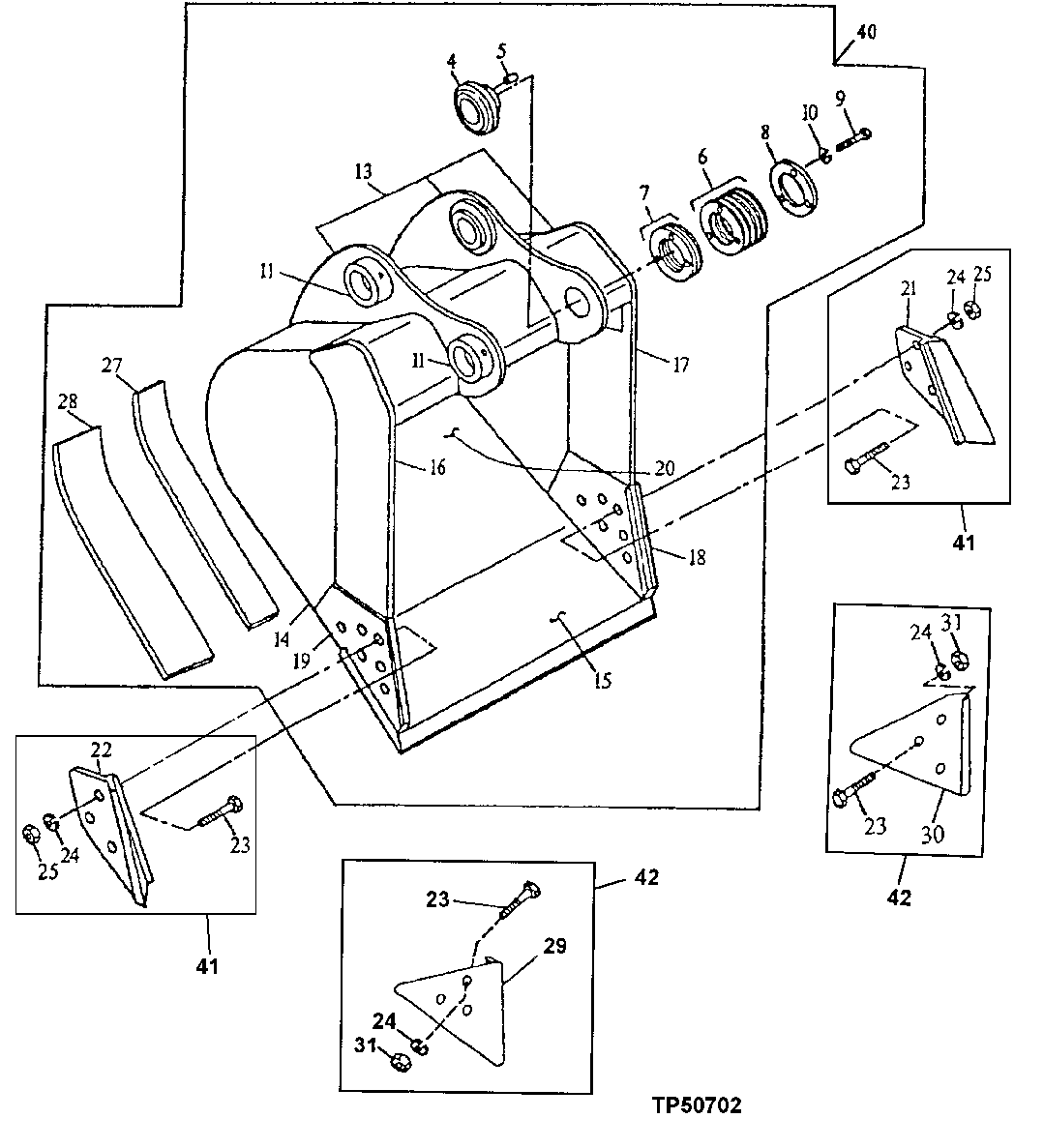

Схема запчастей John Deere 90D - 26 - HEAVY DUTY BUCKET 3302 - BACKHOE AND EXCAVATOR 33

Артикул

Название

Примечание

Количество

4

AT131083

SELF-ALIGNING BUSHING

(1 INCH HEAD THICKNESS)

1шт.

5

R48685

DOWEL PIN

1шт.

6

TH104512

WASHER

9шт.

7

TH104513

SHIM

1шт.

8

TH104514

SPACER

1шт.

9

19H2706

CAP SCREW

5/8" X 2"

3шт.

10

12H294

LOCK WASHER

5/8"

3шт.

11

TH104509

BUSHING

(LOCKING COLLAR)

2шт.

13

C607480

PIVOT

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

300804

PLATE

(F) (RIGHT AND LEFT SIDE)

2шт.

15

CUTTING EDGE

(CUT TO LENGTH FROM AT131082 BULK MATERIAL)

1шт.

16

300526

VERTICAL CUTTER

(F) (UPPER RIGHT SIDE)

1шт.

17

300527

VERTICAL CUTTER

(F) (UPPER LEFT SIDE)

1шт.

18

304568

VERTICAL CUTTER

(F) (LEFT INSERT)

1шт.

19

304567

VERTICAL CUTTER

(F) (RIGHT INSERT)

1шт.

20

600417

MOLDBOARD

(F) (24 INCH)

1шт.

600418

MOLDBOARD

(F) (30 INCH)

1шт.

600419

MOLDBOARD

(F) (36 INCH)

1шт.

600420

MOLDBOARD

(F) (42 INCH)

1шт.

600122

MOLDBOARD

(F) (48 INCH)

1шт.

21

CUTTING EDGE

(SUB AT131085) (LEFT)

1шт.

22

CUTTING EDGE

(SUB AT131085) (RIGHT)

1шт.

23

09H1771

BOLT

7/8" X 3"

6шт.

24

12H245

LOCK WASHER

7/8", (K2)

6шт.

25

14H1077

NUT

7/8"

6шт.

27

300524

BAR

(F) (INNER WEAR)

1шт.

28

304564

BAR

(F) (OUTER WEAR)

2шт.

29

SHROUD

(WEAR SHROUD) (SUB AT167876)

1шт.

30

SHROUD

(WEAR SHROUD) (SUB AT167876)

1шт.

31

14H1044

NUT

22.225 MM (7/8")

1шт.

40

EXCAVATOR BUCKET

(SUB AT332688) ( AT163611, AT131204, AT131103 NLA)

1шт.

EXCAVATOR BUCKET

(SUB AT332689) ( AT163612, AT131104, AT131205 NLA)

1шт.

EXCAVATOR BUCKET

(SUB AT332690) ( AT163613, AT131105, AT131206 NLA)

1шт.

EXCAVATOR BUCKET

(SUB AT332691) ( AT163614, AT131106, AT131207 NLA)

1шт.

EXCAVATOR BUCKET

(SUB AT332692) ( AT163615, AT131107, AT131208 NLA)

1шт.
