Запчасти John Deere 90D 8 - LOWER DOZER HYDRAULICS (B) 3260 - BULLDOZERS 32

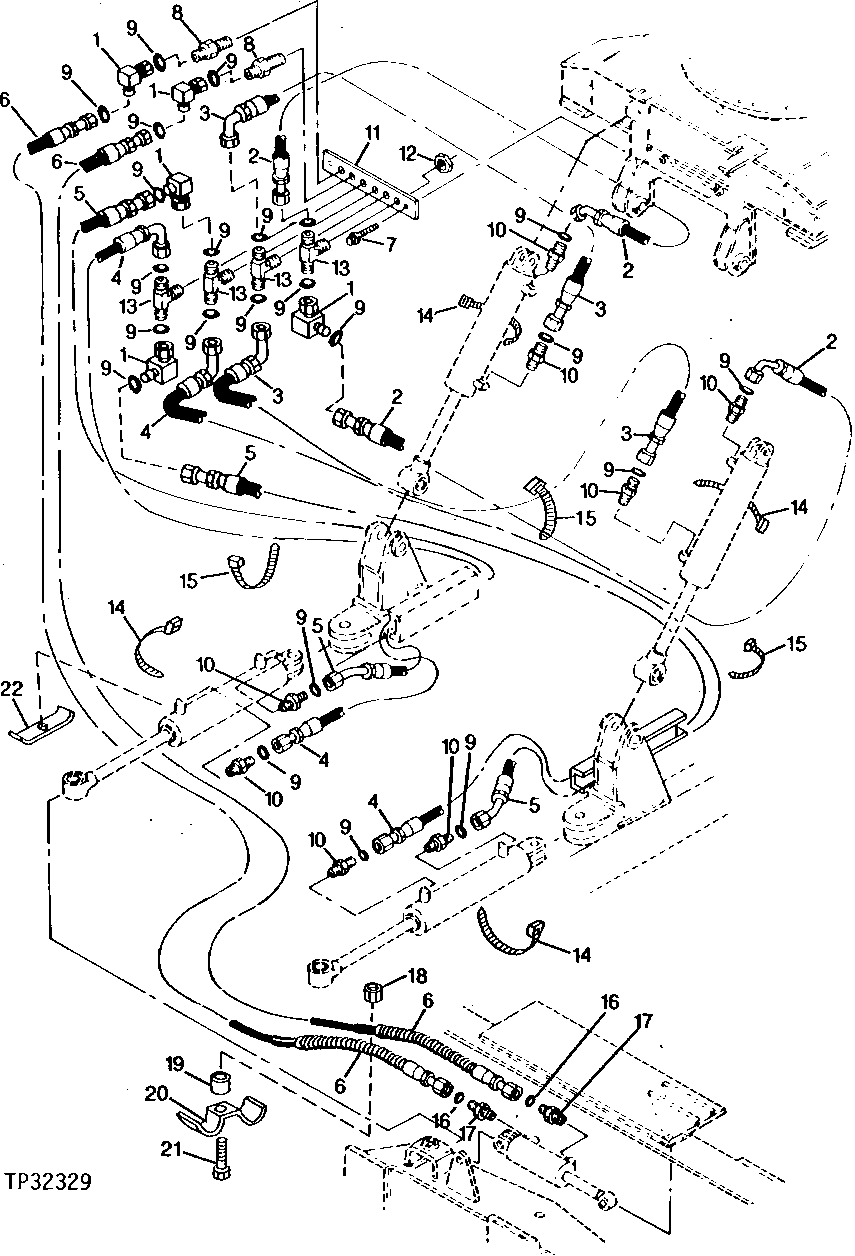

Схема запчастей John Deere 90D - 8 - LOWER DOZER HYDRAULICS (B) 3260 - BULLDOZERS 32

Артикул

Название

Примечание

Количество

1

38H1094

ELBOW FITTING

5шт.

2

AT84359

HYDRAULIC HOSE - FABRICATE

11/16" X 675 MM (26-1/2") X 11/16"

2шт.

3

AT84360

HYDRAULIC HOSE - FABRICATE

11/16" X 889 MM (35") X 11/16"

2шт.

4

AT84361

HYDRAULIC HOSE - FABRICATE

11/16" X 1 721 MM (67-3/4") X 11/16"

2шт.

5

AT84362

HYDRAULIC HOSE - FABRICATE

11/16" X 1 397 MM (55") X 11/16"

2шт.

6

AT139425

HYDRAULIC HOSE

2шт.

7

19M7785

SCREW

M10 X 25

2шт.

8

38H1285

UNION FITTING

2шт.

9

T77613

O-RING

23шт.

10

T78646

ADAPTER FITTING

8шт.

11

T80856

STRAP

1шт.

12

T81029

NUT

6шт.

13

38H1291

TEE FITTING

4шт.

14

N189220

TIE BAND

(SUB FOR (4) AA21510) HOSES TO CYLINDER

4шт.

15

H77698

TIE BAND

HOSES TO CYLINDER, LEFT BLADE LIFT CYLINDER ROD HOSE TO HEAD HOSE

3шт.

16

T77857

O-RING

2шт.

17

T80982

ADAPTER FITTING

2шт.

18

14M7296

FLANGE NUT

M10

1шт.

19

28H1523

BUSHING

0.493" X 0.675" X 13/16"

1шт.

20

T40705

CLAMP

TILT CYLINDER HOSES TO TILT CYLINDER HOSE SHIELD, (SUB FOR T126061)

1шт.

21

19M7724

CAP SCREW

HOSE CLAMP TO HOSE SHIELD

1шт.

22

T31110

CLAMP

1шт.

Выбрано товаров: 22
