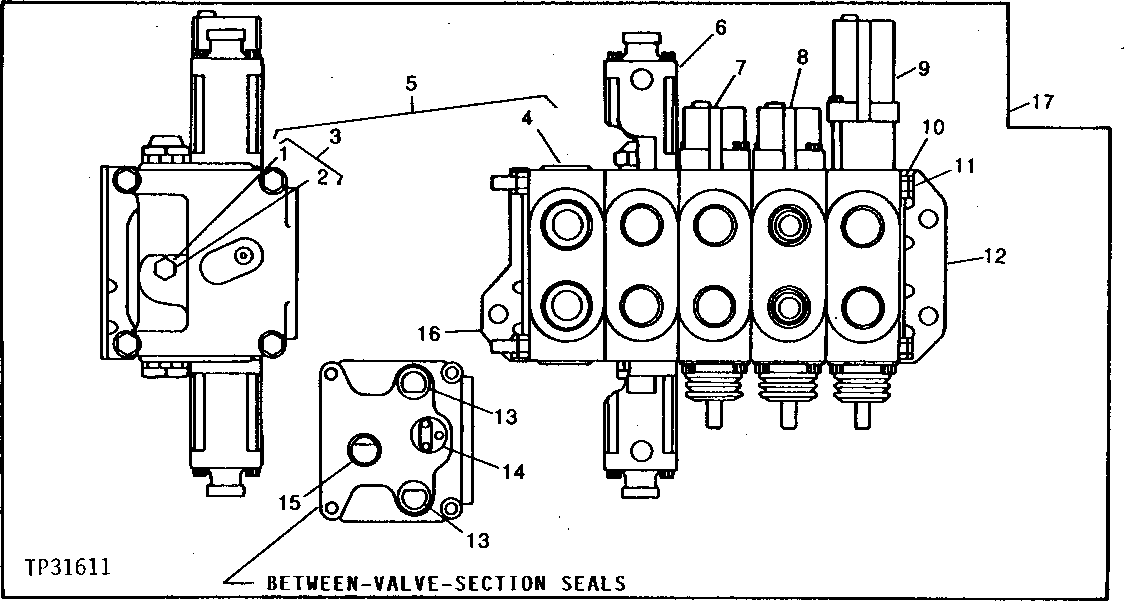

Запчасти John Deere 90D 3 - DOZER CONTROL VALVE AND MOUNTING BRACKETS 3260 - BULLDOZERS 32

1

R51031

FITTING

1шт.

2

R28782

O-RING

1шт.

3

8103-001

PLUG

(A)

1шт.

4

20736002

HOUSING

(A)

1шт.

5

21202001

SECTION

(A) INLET, OUTLET

1шт.

6

12165007

SECTION

(A) AUXILIARY

1шт.

7

11784047

SECTION

(A) ANGLE

1шт.

8

11784048

SECTION

(A) TILT

1шт.

9

12016007

SECTION

(A) LIFT

1шт.

10

12099-004

NUT

(A)

4шт.

11

5248-01

STUD

(A)

8шт.

12

BRACKET

( T106144 NOT AVAILABLE FOR SERVICE)

1шт.

13

O-RING

( T106368 - NO LONGER AVAILABLE) (SUB AT140087)

8шт.

14

T143166

O-RING

(SUB FOR (4) T106369)

4шт.

15

7028002

O-RING

(A)

4шт.

16

BRACKET

( T106143 NOT AVAILABLE FOR SERVICE)

1шт.

17

AT139314

SPOOL VALVE

1шт.
