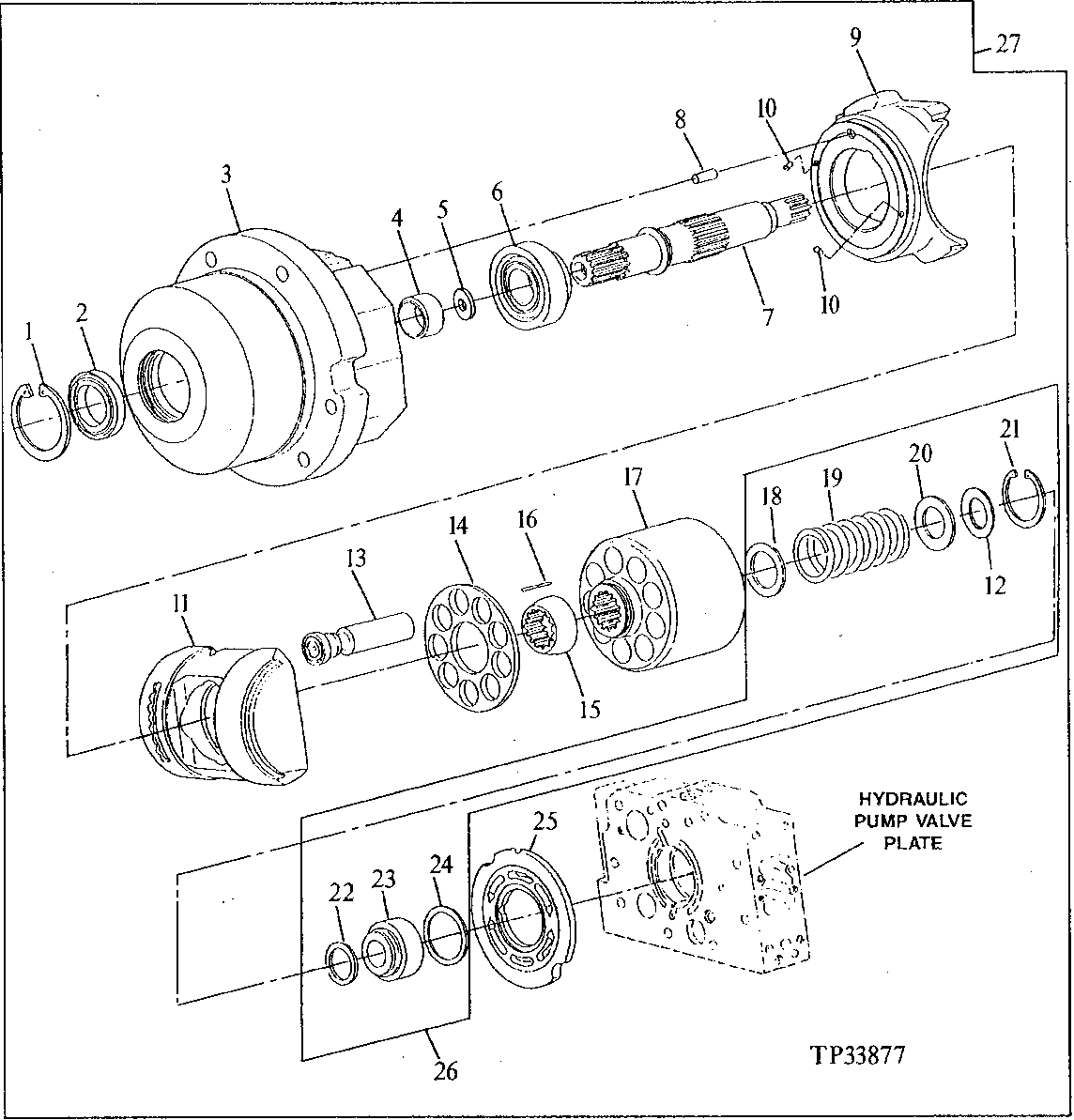

Запчасти John Deere 90D 16 - FRONT HYDRAULIC PUMP 2160 - MAIN HYDRAULIC SYSTEM 21

1

40M7135

SNAP RING

1шт.

2

AT125639

SEAL

(SUB FOR AT112722, THIS APPLICATION)

1шт.

3

T107894

HOUSING

1шт.

4

T107893

BUSHING

1шт.

5

T107835

WASHER

1шт.

6

JD10427

BEARING

1шт.

7

T121603

SHAFT

(SUB FOR T107899, THIS APPLICATION)

1шт.

8

44M7072

PIN

1шт.

9

BUSHING

(K1) (K2)

1шт.

10

T107870

PLUG

2шт.

11

TRUNNION

(K1) (K2)

1шт.

12

SHIM

(K1)

1шт.

13

PISTON

(K1) (K2)

9шт.

14

DISK

(K1) (K2)

1шт.

15

HUB

(K1) (K2)

1шт.

16

PIN

(K1) (K2)

3шт.

17

CYLINDER BLOCK

(K1) (K2)

1шт.

18

T107834

WASHER

(K1) (K2)

1шт.

19

T121601

SPRING

(K1)

1шт.

T107863

SPRING

(K2)

1шт.

20

T107832

WASHER

(K1) (K2)

1шт.

21

U14128

SNAP RING

(K1) (K2)

1шт.

22

T121602

WASHER

(K1)

1шт.

T107831

WASHER

(K2)

1шт.

23

AT163764

BEARING

(SUB FOR AE46875) (K1) (K2)

1шт.

24

AT112855

KIT

SHIM (K1) (K2)

1шт.

25

PLATE

(K1) (K2)

1шт.

26

SPRING ASSEMBLY

NO LONGER AVAILABLE

1шт.

27

PUMP

( AT112732 NO LONGER AVAILABLE)

1шт.
