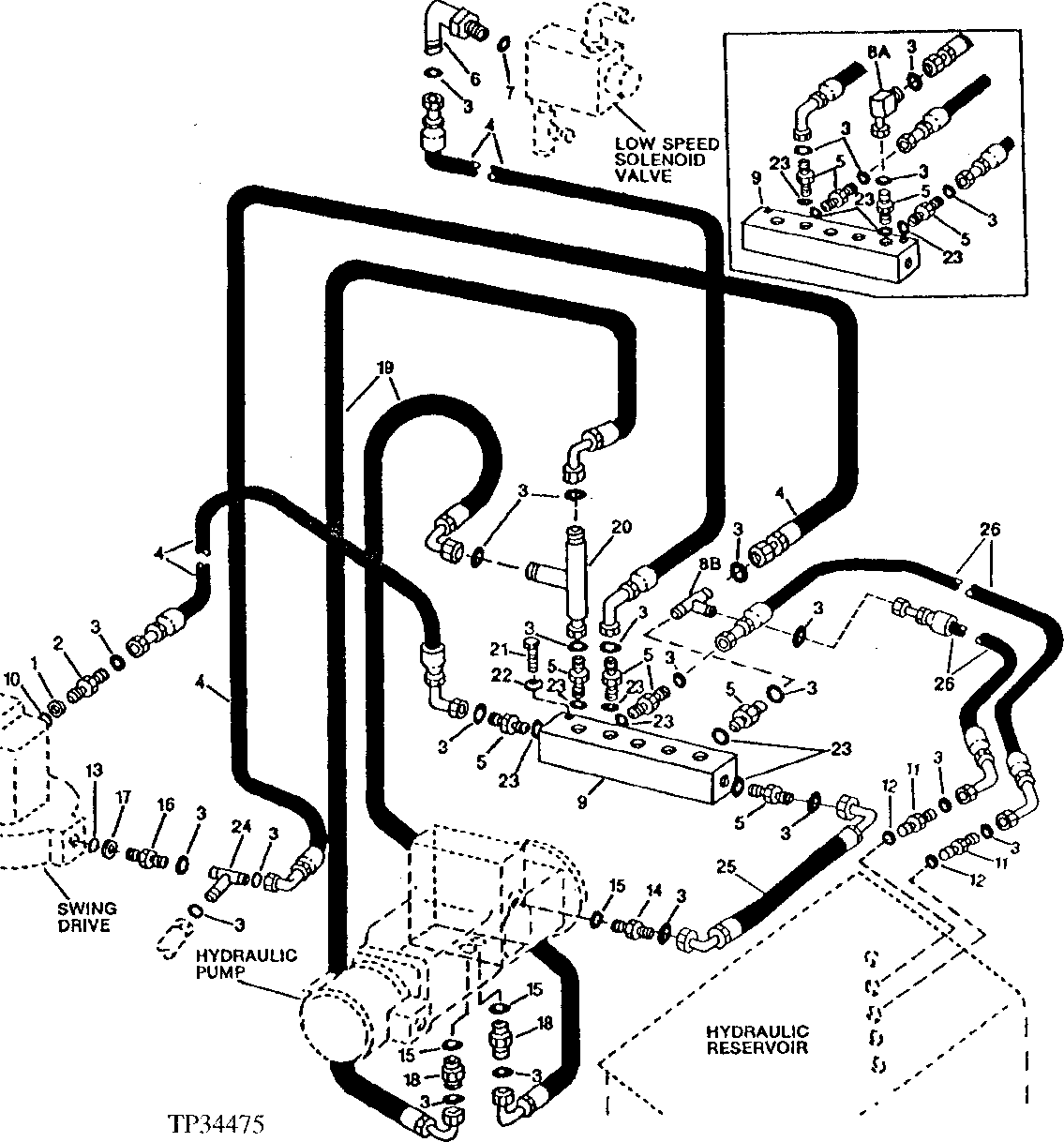

Запчасти John Deere 90D 12 - RETURN MANIFOLD, LINES AND FITTINGS 2160 - MAIN HYDRAULIC SYSTEM 21

1

51M4244

SEALING RING

1шт.

2

T104328

ADAPTER FITTING

1шт.

3

T77857

O-RING

12.421 X 1.778 MM (0.489" X 0.070")

15шт.

T77857

O-RING

12.421 X 1.778 MM (0.489" X 0.070")

19шт.

4

AT112188

HYDRAULIC HOSE - FABRICATE

13/16" X 838 MM (33") X 13/16"

3шт.

5

38H1161

ADAPTER FITTING

7шт.

38H1161

ADAPTER FITTING

6шт.

6

38H1314

ELBOW FITTING

1шт.

7

R26448

O-RING

11.887 X 1.981 MM (0.468" X 5/64") (SUB FOR T70177)

1шт.

8A

38H1095

ELBOW FITTING

1шт.

8B

38H1024

TEE FITTING

1шт.

9

T114808

MANIFOLD

1шт.

10

R67886

O-RING

22 X 1.500 MM (0.866" X 0.059") (SUB FOR T77858, THIS APPLICATION)

1шт.

11

38H1161

ADAPTER FITTING

2шт.

12

R26375

O-RING

16.358 X 2.210 MM (0.644" X 0.087")

2шт.

13

R49074

RING

12.903 X 1.245 MM (0.508" X 0.049")

1шт.

14

38H1175

ADAPTER FITTING

1шт.

15

U12547

O-RING

23.470 X 2.946 MM (0.924" X 0.116") (SUB FOR R47157)

3шт.

16

T107183

ADAPTER FITTING

1шт.

17

51M4238

SEALING RING

1шт.

18

38H1174

ADAPTER FITTING

2шт.

19

AT115278

HYDRAULIC HOSE - FABRICATE

13/16" X 292 MM (11-1/2") X 13/16"

2шт.

20

38H1031

TEE FITTING

1шт.

21

19M7658

CAP SCREW

M10 X 50

2шт.

22

24M7028

WASHER

10.500 X 20 X 2 MM

2шт.

23

R47150

O-RING

16.358 X 2.210 MM (0.644" X 0.087")

6шт.

24

38H1031

TEE FITTING

1шт.

25

AT112191

HYDRAULIC HOSE - FABRICATE

13/16" X 635 MM (25") X 13/16"

1шт.

26

AT112190

HYDRAULIC HOSE - FABRICATE

13/16" X 1 207 MM (47-1/2") X 13/16"

2шт.
