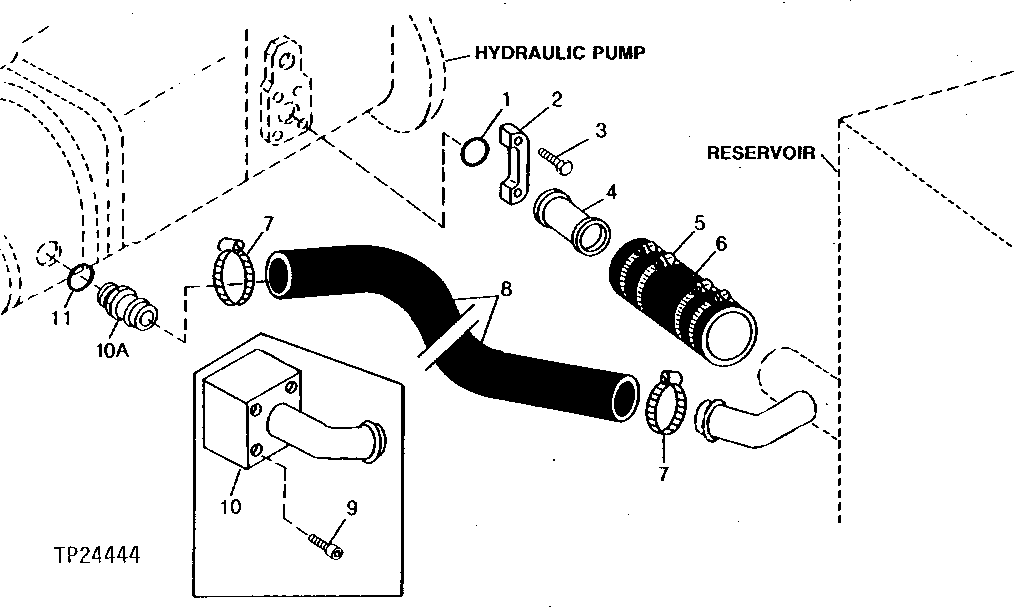

Запчасти John Deere 90D 10 - HYDRAULIC PUMP TO RESERVOIR HOSES 2160 - MAIN HYDRAULIC SYSTEM 21

1

P48403

O-RING

1шт.

2

T52402

FLANGE FITTING

2шт.

3

19M7488

CAP SCREW

M16 X 40

4шт.

4

AT112003

OIL LINE

1шт.

5

AT37476

HOSE CLAMP

4шт.

6

T114571

HYDRAULIC HOSE

(SUB FOR T107102)

1шт.

7

AR21839

CLAMP

2шт.

8

H101234

HYDRAULIC HOSE

(SUB FOR T114544)

1шт.

9

19M8532

SCREW

M6 X 35, (SUB FOR 19M8110)

4шт.

19M8532

SCREW

(SUB FOR 19M8110)

4шт.

10

AT115097

ADAPTER FITTING

PUMP INLET

1шт.

AT115097

ADAPTER FITTING

1шт.

10A

H101246

HOSE FITTING

1шт.

H101246

HOSE FITTING

1шт.

11

P51079

O-RING

1шт.

R56751

O-RING

1шт.

P51079

O-RING

1шт.

R56751

O-RING

1шт.
