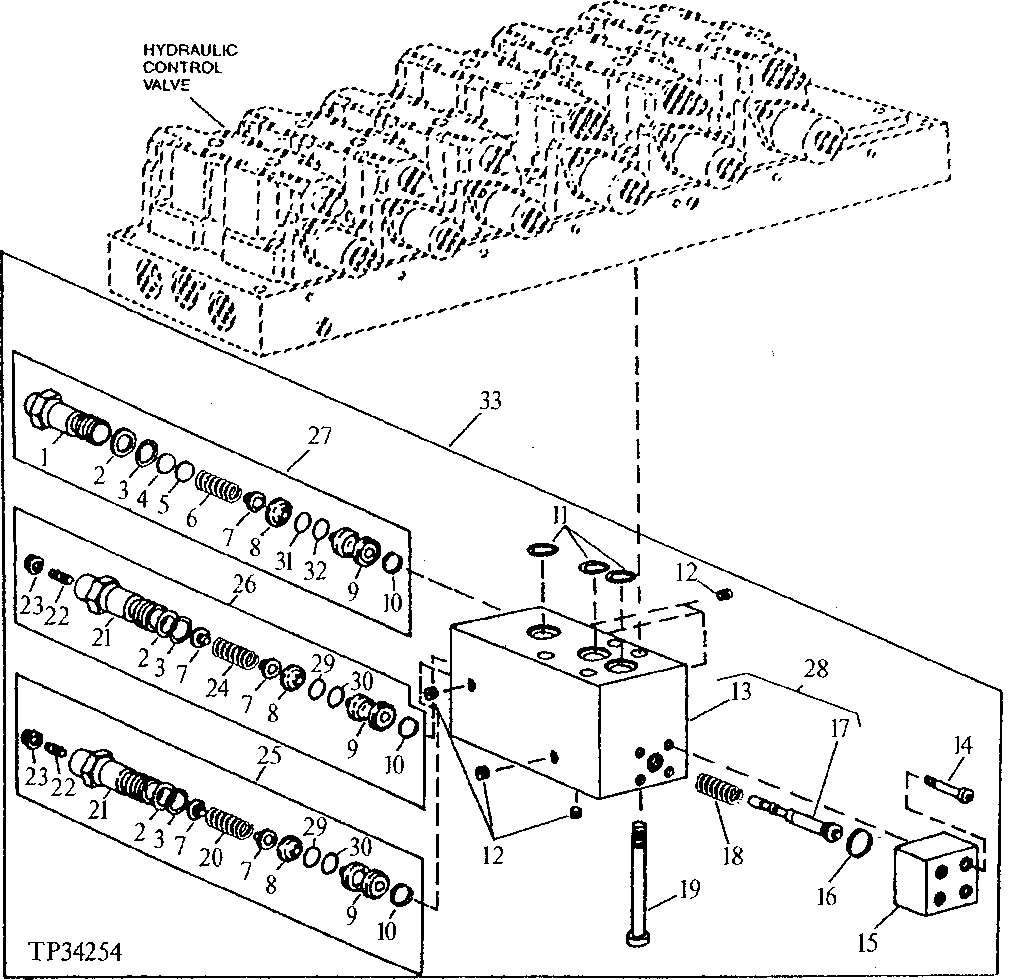

Запчасти John Deere 90D 6 - LOAD SENSING RELIEF VALVES AND BLOCK 2160 - MAIN HYDRAULIC SYSTEM 21

1

RELIEF VALVE

(SUB AT112744)

1шт.

2

T107874

BACK-UP RING

3шт.

3

T74549

O-RING

3шт.

4

RELIEF VALVE

(SUB AT112744)

1шт.

5

RELIEF VALVE

(SUB AT112744)

1шт.

6

T107855

SPRING

1шт.

7

RELIEF VALVE

(SUB AT112744, AT112745 OR AT112746)

5шт.

8

RELIEF VALVE

(SUB AT112744, AT112745 OR AT112746)

3шт.

9

RELIEF VALVE

(SUB AT112744, AT112745 OR AT112746)

3шт.

10

R80632

O-RING

(SUB FOR R68512)

3шт.

11

T107885

O-RING

3шт.

12

15M7032

PIPE PLUG

25шт.

13

HOUSING

(SUB AT162760)

1шт.

14

19M8532

SCREW

M6 X 35, (SUB FOR 19M8110)

4шт.

15

T107936

COVER

1шт.

16

T107886

O-RING

1шт.

17

SPOOL

(SUB AT162760)

1шт.

18

T107848

SPRING

1шт.

19

19M8433

SCREW

(M8 X 110 DIN 940 - 12.9)

4шт.

20

T107858

SPRING

1шт.

21

RELIEF VALVE

(SUB AT112745 OR AT112746)

2шт.

22

T107820

SCREW

2шт.

T115239

SCREW

2шт.

23

T107963

NUT

2шт.

T115240

NUT

2шт.

24

T107860

SPRING

1шт.

25

AT125523

PRESSURE RELIEF VALVE

(SUB FOR AT112745) (USE WITH AT112844) DIG

1шт.

AT125523

PRESSURE RELIEF VALVE

(USE WITH AT125525)

1шт.

26

AT132835

PRESSURE RELIEF VALVE

(SUB FOR AT112746) (USE WITH AT112844) PROPEL

1шт.

AT132835

PRESSURE RELIEF VALVE

(USE WITH AT125525) (SUB FOR AT125524)

1шт.

27

AT112744

PRESSURE RELIEF VALVE

SYSTEM

1шт.

28

AT162760

HOUSING

(SUB FOR T107937 AND T107938)

1шт.

29

T115244

O-RING

(USE WITH AT125523 AND AT125524)

2шт.

30

T115245

BACK-UP RING

(USE WITH AT125523 AND AT125524)

2шт.

31

T115244

O-RING

(USE WITH AT112744)

1шт.

32

T115245

BACK-UP RING

(USE WITH AT112744)

1шт.

33

HYDRAULIC PRESSURE VALVE

(SUB FOR AT112844) ( AT132834 NLA)

1шт.

AT132834

HYDRAULIC PRESSURE VALVE

(SUB FOR AT125525)

1шт.
