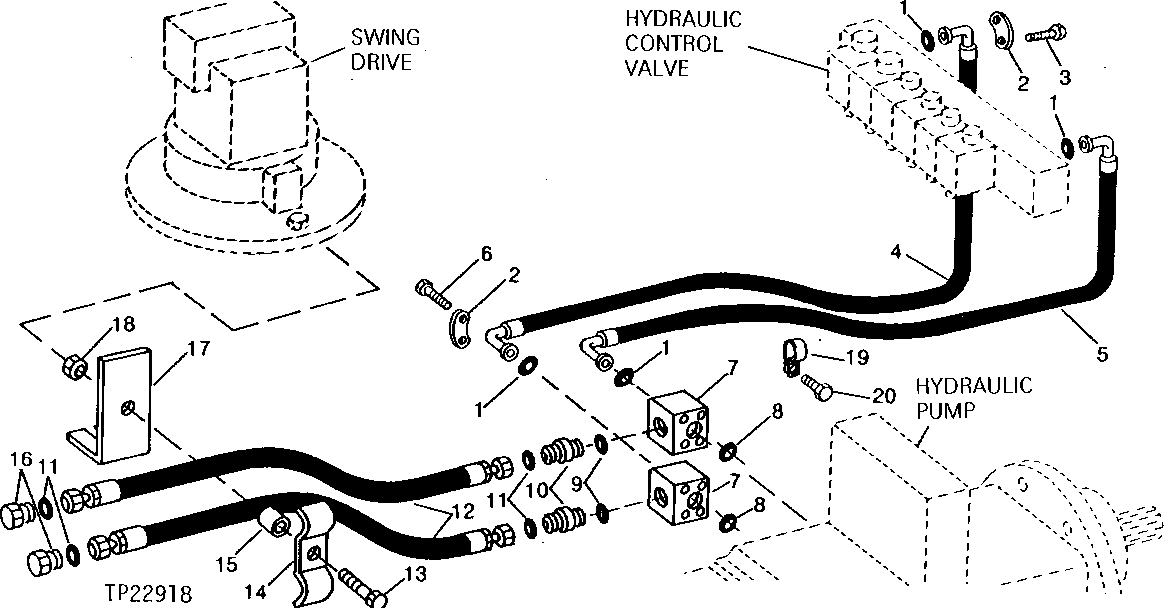

Запчасти John Deere 90D 5 - HYDRAULIC PUMP TO CONTROL VALVE HOSES 2160 - MAIN HYDRAULIC SYSTEM 21

1

T78313

O-RING

4шт.

2

T107068

FLANGE FITTING

(SUB FOR E73093)

8шт.

3

19M7493

CAP SCREW

M12 X 40

8шт.

4

AT107285

HYDRAULIC HOSE - FABRICATE

1" X 760 MM (30") X 1"

1шт.

5

AT115169

HYDRAULIC HOSE - FABRICATE

1" X 1 892 MM (74-1/2") X 1"

1шт.

6

19M7943

CAP SCREW

M12 X 90

8шт.

7

T114574

ADAPTER FITTING

2шт.

8

T78313

O-RING

2шт.

9

R29936

O-RING

2шт.

10

38H1164

ADAPTER FITTING

2шт.

11

T76938

O-RING

4шт.

12

AT115113

HYDRAULIC HOSE - FABRICATE

1-7/16" X 533 MM (21") X 1-7/16"

2шт.

13

19M7807

SCREW

M10 X 60

1шт.

14

T35459

CLAMP

1шт.

15

28H1508

SPACER

1шт.

16

38H1150

FITTING PLUG

2шт.

17

T114566

ANGLE

1шт.

18

14M7296

FLANGE NUT

M10

1шт.

19

AH77714

CLIP

1шт.

20

19M7785

SCREW

M10 X 25, CLAMP TO BOSS ON FRAME

1шт.
