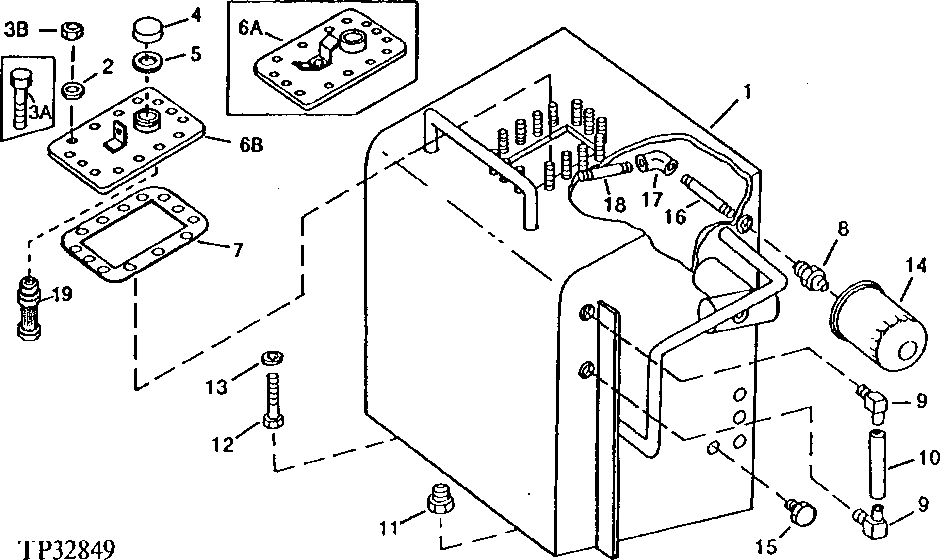

Запчасти John Deere 90D 4 - HYDRAULIC RESERVOIR 2160 - MAIN HYDRAULIC SYSTEM 21

1

AT107481

HYDRAULIC RESERVOIR

(ALSO ORDER (14) 14M7274)

1шт.

AT130272

RESERVOIR

VERTICAL STRIP WELDED TO TANK NEXT TO HANDHOLD

1шт.

AT133090

RESERVOIR

1шт.

2

24H1308

WASHER

13/32" X 1" X 0.134"

14шт.

3A

19H2676

CAP SCREW

3/8" X 1"

14шт.

3B

14M7274

NUT

14шт.

4

T50842

FILLER CAP

1шт.

T191207

FILLER CAP

(SUB FOR T121028)

1шт.

T191207

FILLER CAP

(SUB FOR T121028)

1шт.

5

T103461

SEALING WASHER

1шт.

6A

AT142356

COVER

(SUB FOR AT102299)

1шт.

6B

AT142356

COVER

(SUB FOR AT135229)

1шт.

AT135229

COVER

1шт.

AT142356

COVER

(USE WITH AT147349 ONLY)

1шт.

7

T114729

GASKET

(SUB FOR T101447)

1шт.

8

AT79591

PRESSURE RELIEF VALVE

1шт.

9

N115724

ELBOW FITTING

2шт.

10

HOSE

(MAKE FROM T107253 BULK MATERIAL, CUT TO LENGTH)

1шт.

11

U17027

FITTING

1шт.

12

19M8174

CAP SCREW

M20 X 35

3шт.

13

24M7242

WASHER

21.400 X 42 X 5 MM

3шт.

14

AT79590

OIL FILTER

1шт.

15

RE57836

PIPE PLUG

1/2", (SUB FOR 15H561)

1шт.

16

29H109

THREADED NIPPLE

1/4"

1шт.

17

15H156

ELBOW FITTING

1шт.

18

29H118

THREADED NIPPLE

1/4"

1шт.

19

AT147349

SCREEN

(USE WITH AT142356)

1шт.
