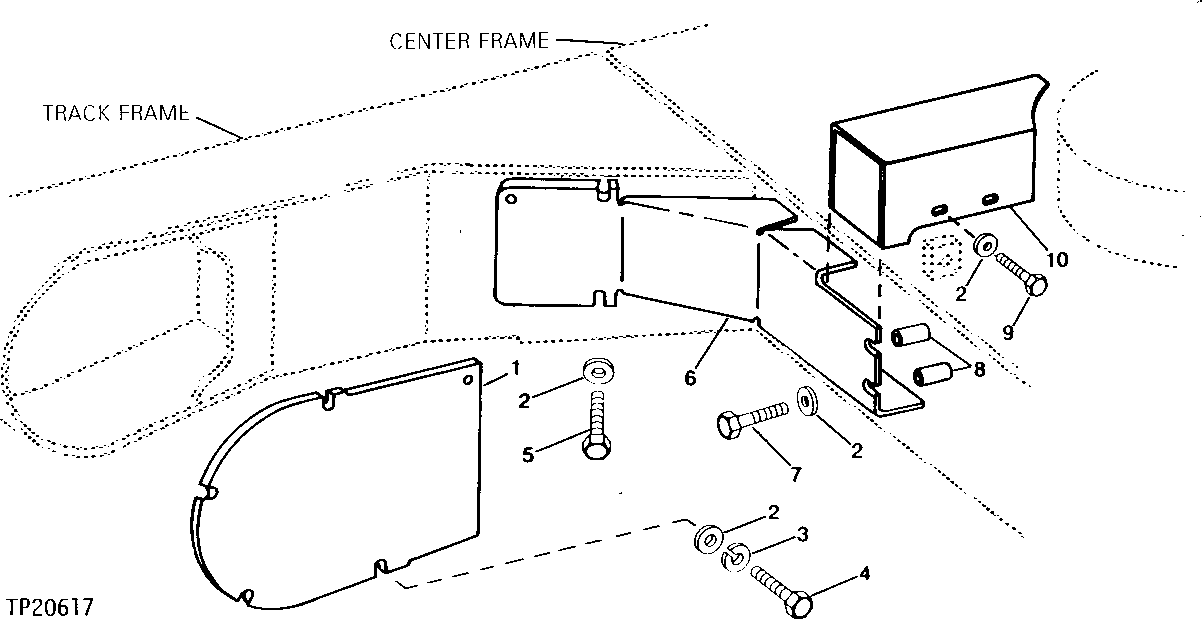

Запчасти John Deere 90D 1 - PROPEL MOTOR AND HYDRAULICS SHIELDS 1913 - SHEET METAL AND STYLING 19

1

T107455

SHIELD

2шт.

2

24M7296

WASHER

10.500 X 30 X 2.500 MM, (FOUR BETWEEN TUBE SHIELD AND TRACK FRAME)

16шт.

3

12M7066

LOCK WASHER

10 MM

4шт.

4

19M7662

CAP SCREW

M10 X 30, (SUB FOR 19M7938, THIS APPLICATION)

8шт.

5

19M7662

CAP SCREW

M10 X 30

4шт.

19M7403

CAP SCREW

M12 X 35

4шт.

24H1850

WASHER

4шт.

6

T121630

SHIELD

(SUB FOR T107556) LEFT (LONG-WIDE UNDERCARRIAGE) (SHOWN)

1шт.

T121631

SHIELD

(SUB FOR T107506) RIGHT (LONG-WIDE UNDERCARRIAGE)

1шт.

T121626

SHIELD

(SUB FOR T107557) LEFT (SHORT-WIDE UNDERCARRIAGE)

1шт.

T121627

SHIELD

(SUB FOR T107505) RIGHT (SHORT-WIDE UNDERCARRIAGE)

1шт.

SHIELD

(SUB FOR T107558) LEFT (STANDARD) (T121628 NO LONGER AVAILABLE)

1шт.

SHIELD

(SUB FOR T107504) RIGHT (STANDARD) ( T121629 USE IF AVAILABLE)

1шт.

7

19M7329

CAP SCREW

M10 X 75

4шт.

12M7066

LOCK WASHER

10 MM

4шт.

19M7403

CAP SCREW

M12 X 35

4шт.

24H1850

WASHER

17/32" X 1-1/4" X 0.180"

4шт.

8

H528DN

SPACER

(SUB FOR M41162)

4шт.

9

19M7662

CAP SCREW

M10 X 30

8шт.

10

AT115158

COVER

(HEAVY-DUTY UNDERCARRIAGE) LEFT (SHOWN)

1шт.

AT115151

COVER

(HEAVY-DUTY UNDERCARRIAGE) RIGHT

1шт.

AT115158

COVER

1шт.

AT115151

COVER

1шт.
