Запчасти John Deere 90D 13 - UNDERCARRIAGE AND DOZER CYLINDER GUARDS 1910 - SHEET METAL AND STYLING 19

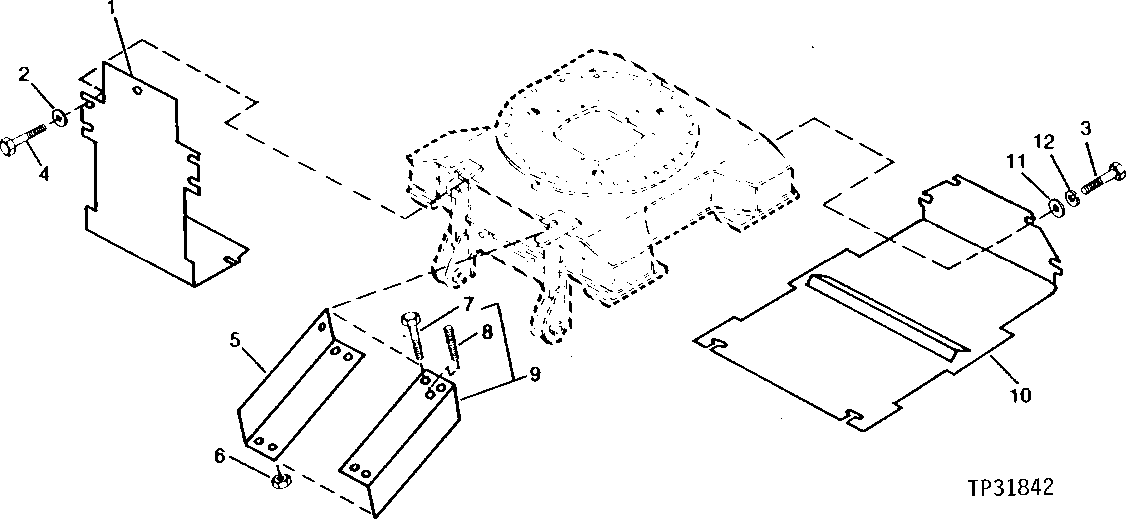

Схема запчастей John Deere 90D - 13 - UNDERCARRIAGE AND DOZER CYLINDER GUARDS 1910 - SHEET METAL AND STYLING 19

Артикул

Название

Примечание

Количество

1

T103322

GUARD

1шт.

2

24H1850

WASHER

17/32" X 1-1/4" X 0.180"

6шт.

3

19H1768

CAP SCREW

3/4" X 2"

6шт.

4

19H2898

CAP SCREW

1/2" X 1-1/4"

6шт.

5

ANGLE

( T82246 NLA) LEFT LIFT CYLINDER (1), RIGHT LIFT CYLINDER (2) AND ANGLE CYLINDERS (4)

7шт.

6

14M7274

NUT

M10

14шт.

7

19M7638

CAP SCREW

M10 X 130

14шт.

8

STUD

( U41047 NLA)

1шт.

9

AT105378

GUARD

LEFT LIFT CYLINDER

1шт.

10

AT105382

GUARD

1шт.

11

24H1402

WASHER

25/32" X 1-7/8" X 1/4"

6шт.

12

12H236

LOCK WASHER

3/4"

6шт.

Выбрано товаров: 12
