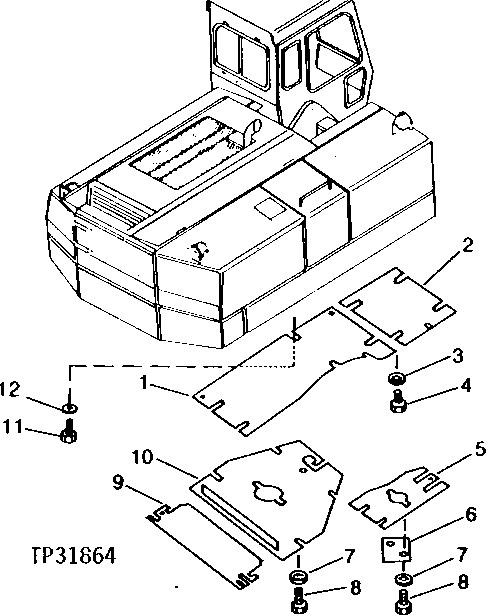

Запчасти John Deere 90D 11 - MAIN FRAME BOTTOM COVERS 1910 - SHEET METAL AND STYLING 19

1

T130753

COVER

1шт.

2

T130752

COVER

1шт.

3

24M7180

WASHER

13 X 37 X 3 MM

14шт.

4

19M7872

CAP SCREW

M12 X 25

13шт.

5

AT139361

COVER

1шт.

6

T82249

COVER

2шт.

7

24M7296

WASHER

10.500 X 30 X 2.500 MM

10шт.

8

19M7938

CAP SCREW

M10 X 20

10шт.

9

T130755

COVER

1шт.

10

AT139360

COVER

1шт.

11

24H1850

WASHER

17/32" X 1-1/4" X 0.180"

17шт.

12

19M7073

CAP SCREW

M12 X 50

2шт.

14M7299

FLANGE NUT

M12

2шт.
