10 - GRILLE SUPPORT AND COVER

Запчасти John Deere 90D 10 - GRILLE SUPPORT AND COVER 1910 - SHEET METAL AND STYLING 19

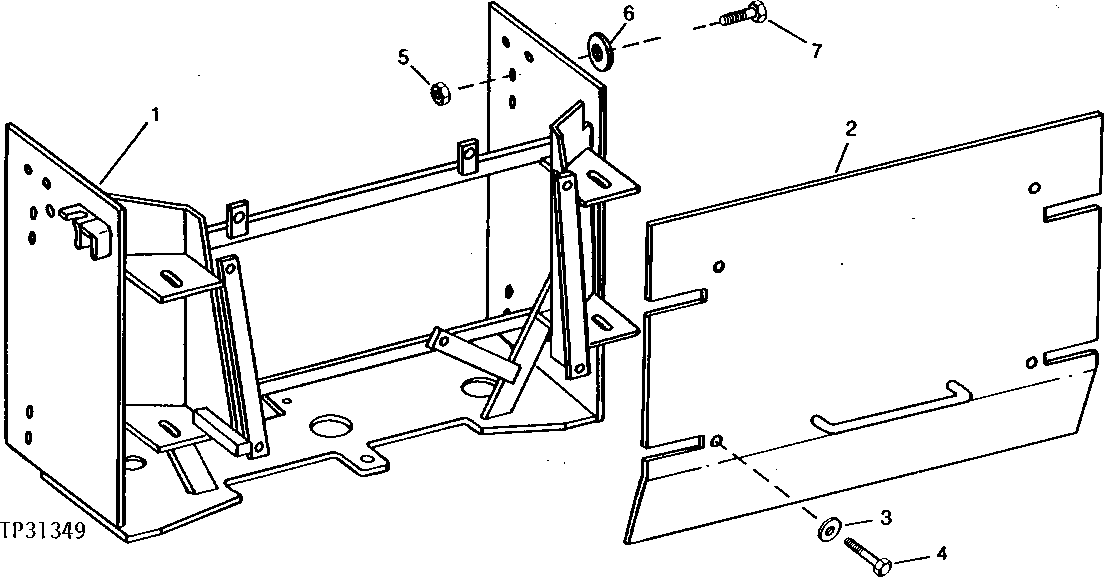

Схема запчастей John Deere 90D - 10 - GRILLE SUPPORT AND COVER 1910 - SHEET METAL AND STYLING 19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AT139301

SUPPORT

1шт.

14H956

NUT

3/4", CAGED INSIDE OF SUPPORT AT EACH BOTTOM CORNER

4шт.

2

AT139307

COVER

1шт.

3

24M7296

WASHER

10.500 X 30 X 2.500 MM

4шт.

4

19M7938

CAP SCREW

M10 X 20

4шт.

5

14M7291

FLANGE NUT

M16

4шт.

6

24H1374

WASHER

21/32" X 3" X 3/8"

14шт.

7

19M7827

SCREW

M16 X 80

4шт.
