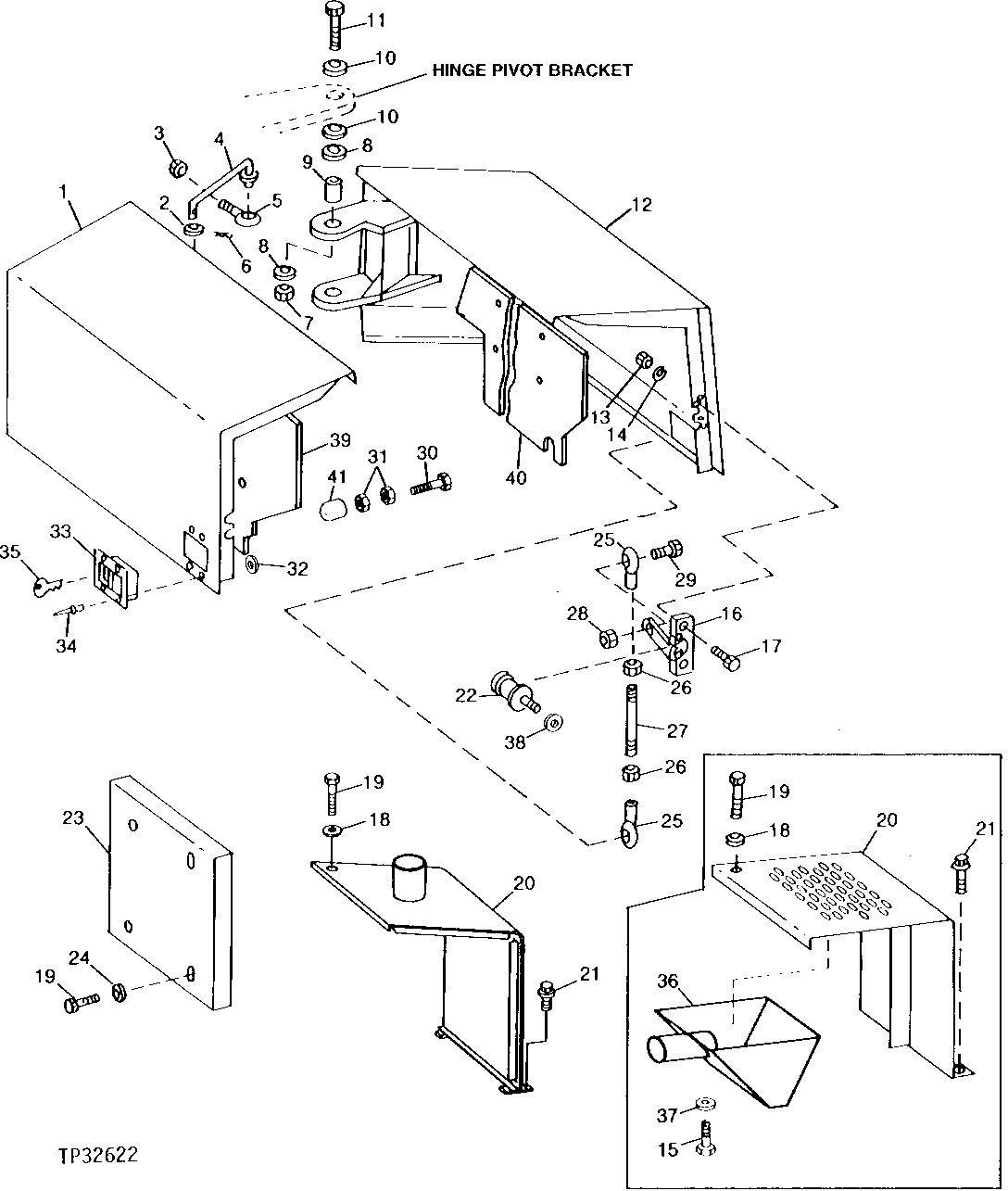

Запчасти John Deere 90D 4 - FENDERS 1910 - SHEET METAL AND STYLING 19

1

AT107124

COVER

RIGHT REAR

1шт.

FENDER

RIGHT REAR ( AT139350 NOT AVAILABLE FOR SERVICE)

1шт.

2

24M7034

WASHER

17 X 50 X 3 MM, RIGHT FENDER STOP ROD

2шт.

3

14M7276

NUT

M16

4шт.

24H1098

WASHER

21/32" X 3" X 3/8", BETWEEN EYEBOLT NUT 14M7276 AND BRACKET T126957

2шт.

4

AT105848

ROD

2шт.

5

Z36731

EYEBOLT

2шт.

6

11M7087

COTTER PIN

4 X 40 MM, (SUB FOR 11M7023)

4шт.

28316

SPRING LOCKING PIN

FRAME END OF STOP RODS

2шт.

11M7087

COTTER PIN

4 X 40 MM, (SUB FOR 11M7023) FENDER END OF STOP RODS

2шт.

7

14M7291

FLANGE NUT

M16

4шт.

8

R28695

WASHER

SIX ON EACH REAR FENDER

12шт.

9

A17870

BUSHING

4шт.

10

R20135

WASHER

FOUR ON EACH REAR FENDER

8шт.

11

19M7827

SCREW

M16 X 80

4шт.

T81914

PIN FASTENER

(NOT ILLUSTRATED)

4шт.

28316

SPRING LOCKING PIN

(USE WITH T81914) (NOT ILLUSTRATED)

4шт.

12

AT107123

COVER

LEFT REAR

1шт.

FENDER

LEFT REAR ( AT139342 NOT AVAILABLE FOR SERVICE)

1шт.

13

14M7272

NUT

M6

8шт.

14

12H302

LOCK WASHER

1/4"

8шт.

15

19M7402

CAP SCREW

M10 X 25, FOUR ON EACH REAR FENDER

4шт.

16

AT80781

LATCH

LEFT FENDER

1шт.

AT125137

LATCH

RIGHT FENDER (USE IF AVAILABLE) (NOT ILLUSTRATED) (SUB FOR AT112150) (SUB AT125137)

1шт.

AT125137

LATCH

RIGHT FENDER (NOT ILLUSTRATED) (SUB FOR AT112150)

1шт.

17

19M7874

CAP SCREW

M6 X 30

8шт.

24H1287

WASHER

9/32" X 5/8" X 0.065"

8шт.

18

24M7296

WASHER

10.500 X 30 X 2.500 MM

1шт.

19

19M7938

CAP SCREW

M10 X 20

5шт.

20

FENDER

LEFT FRONT ( AT107125 NO LONGER AVAILABLE, SUB AT141693 AND CHECK AIR CLEANER MOUNTING PAGES)

1шт.

AT139352

COVER

LEFT FRONT

1шт.

AT141693

COVER

1шт.

21

19M7786

SCREW

M10 X 30

2шт.

24M7296

WASHER

10.500 X 30 X 2.500 MM, (BETWEEN FENDER AND FRAME)

4шт.

14M7274

NUT

M10

2шт.

19M7835

SCREW

M10 X 35

2шт.

22

AT59896

STRIKER

2шт.

23

AT112342

COVER

RIGHT FRONT

1шт.

AT139413

COVER

RIGHT FRONT

1шт.

24

24M7296

WASHER

10.500 X 30 X 2.500 MM

4шт.

25

AH108055

LINK END

4шт.

26

14H631

NUT

0.190"

4шт.

27

T65795

STUD

2шт.

28

T531T

LOCK NUT

4шт.

29

19H3204

SCREW

0.190" X 5/8"

4шт.

30

19M7724

CAP SCREW

M10 X 45

2шт.

31

14M7274

NUT

M10

4шт.

32

R52119

WASHER

8шт.

33

AT79581

LATCH

2шт.

34

R77914

RIVET

8шт.

35

AT195302

KEY

(SUB FOR AR51481) (SUB FOR AT145929)

1шт.

36

AT115267

PANEL

1шт.

37

24M7296

WASHER

10.500 X 30 X 2.500 MM

4шт.

38

T21242

WASHER

SHIM STRIKER (TWO MAXIMUM)

ARшт.

39

T130745

PLATE

RIGHT

1шт.

40

T130745

PLATE

LEFT

1шт.

41

T101955

BUMPER

2шт.
