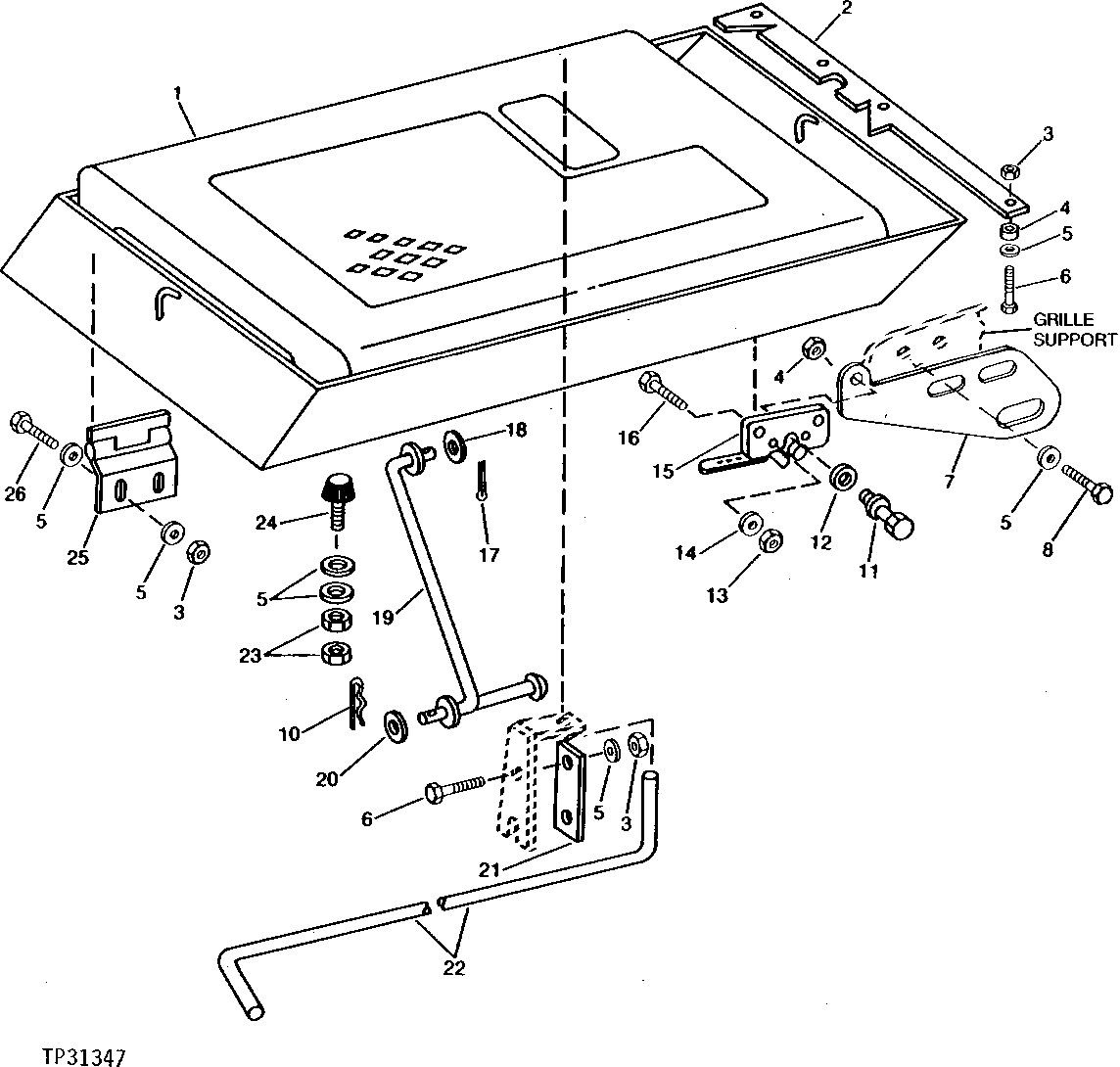

Запчасти John Deere 90D 3A - HOOD AND HOOD SUPPORTS 1910 - SHEET METAL AND STYLING 19

1

AT139326

HOOD

1шт.

2

T114511

ISOLATOR

1шт.

3

14M7274

NUT

M10

8шт.

4

28H1517

WASHER

0.493" X 0.675" X 1/4"

4шт.

5

24M7296

WASHER

10.500 X 30 X 2.500 MM

17шт.

6

19M7402

CAP SCREW

M10 X 25

5шт.

7

T126957

STRAP

1шт.

8

19M8162

SCREW

M10 X 40

1шт.

9

19M7809

SCREW

M10 X 70

1шт.

10

28316

SPRING LOCKING PIN

1шт.

11

AT59896

STRIKER

1шт.

12

24M7034

WASHER

17 X 50 X 3 MM

1шт.

13

14M7272

NUT

M6

4шт.

14

12H302

LOCK WASHER

1/4"

4шт.

15

AT80712

LATCH

1шт.

16

19M7874

CAP SCREW

M6 X 30

4шт.

17

11M7087

COTTER PIN

4 X 40 MM, (SUB FOR 11M7023)

1шт.

18

24M1589

WASHER

17 X 30 X 3 MM

1шт.

19

AT78556

ROD

1шт.

20

24H1893

WASHER

25/32" X 3-7/8" X 0.194"

1шт.

21

N163737

STRAP

1шт.

22

T78915

TORSION SPRING

1шт.

23

14M7273

NUT

M8

4шт.

24

AT59634

BUMPER

2шт.

25

AT79320

HINGE

2шт.

26

19M7662

CAP SCREW

M10 X 30, REAR HOOD HINGE USES ONE EXISTING RADIATOR STRAP CAPSCREW

2шт.
