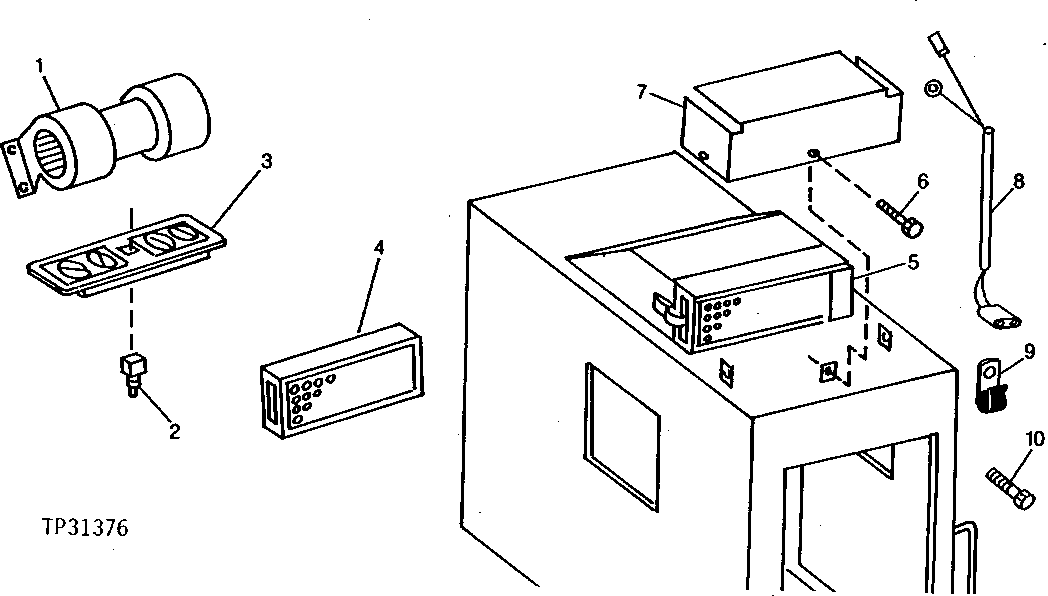

Запчасти John Deere 90D 17 - ARMORED CAB PRESSURIZER 1830 - OPERATORS STATION 18

1

66461-G2

BLOWER FAN

(A)

1шт.

2

62307

SWITCH

(A)

1шт.

3

64939

LOUVER

(A)

1шт.

4

64925

FILTER

(A)

1шт.

5

AT139347

BLOWER

(INCLUDES KEYS 1 THRU 4)

1шт.

6

19M7938

CAP SCREW

M10 X 20

3шт.

7

COVER

PRESSURIZER ( T130828 USE IF AVAILABLE)

1шт.

8

AT139367

WIRING HARNESS

CAB HARNESS TO PRESSURIZER

1шт.

9

T19935

CLAMP

PRESSURIZER HARNESS TO PRESSURIZER FRONT CENTER MOUNTING CAP SCREW AND TAPPED BOSSES IN CAB

5шт.

10

19M7783

SCREW

M10 X 16, WIRING HARNESS CLAMPS TO TAPPED BOSSES ON CAB RIGHT WALL NEAR ROOF AND REAR WALL

3шт.

11

19H1227

CAP SCREW

1/4" X 1/2", PRESSURIZER TO ARMORED CAB ROOF

6шт.

12

37H74

SCREW

PLUG HOLES WHERE MANUFACTURES ID TAGS ARE REMOVED (NOT ILLUSTRATED)

4шт.
